Description:

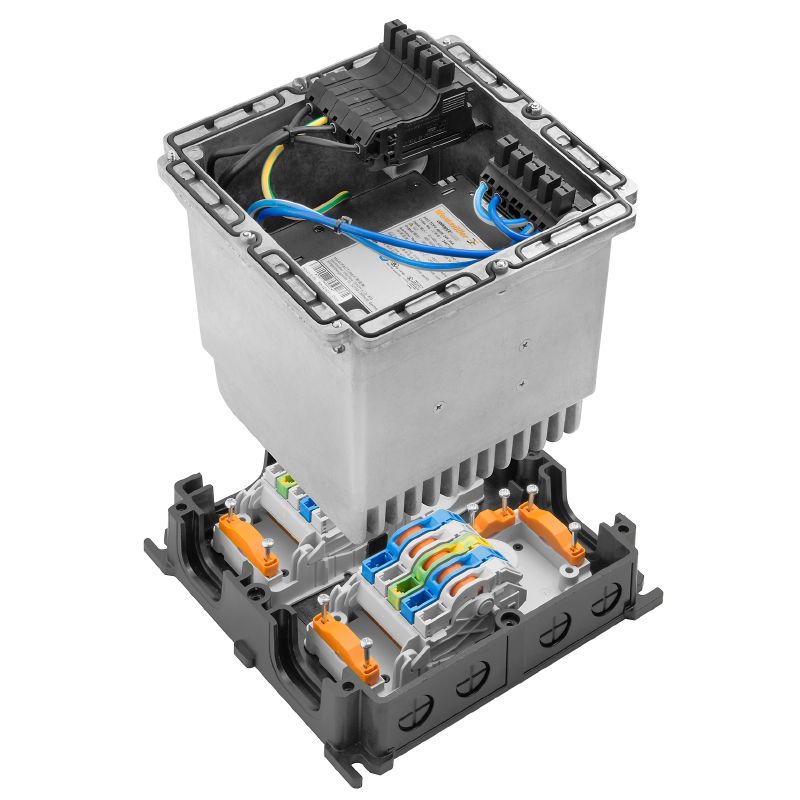

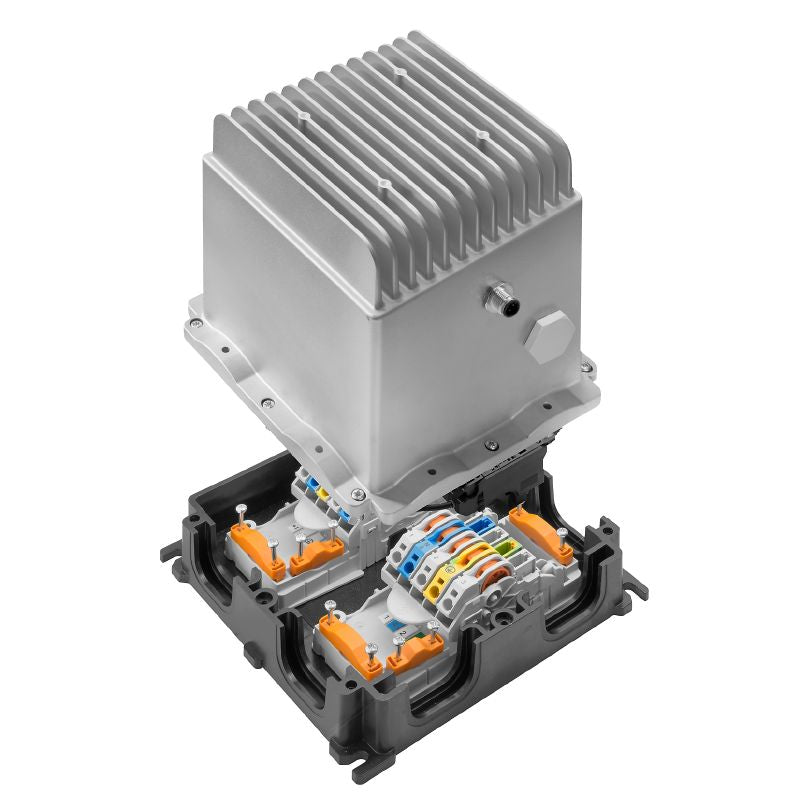

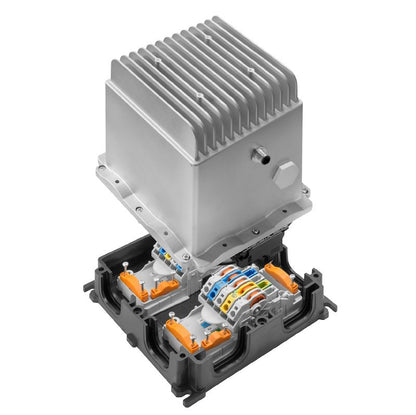

Experience reliable power with the FieldPower power supply unit, built to meet IP65 standards This unit delivers a robust current of 10A at a voltage of 24V DC, featuring a user-friendly PUSH IN IDC terminal for quick connectivity Measuring 220mm in depth, 196mm in height, and 196mm in width, it is a compact solution that weighs 4,000g, making it suitable for various applications.
Features and Benefits:
•Protection degree of IP65 in complete state.
•Short-circuit protection available.
•Lid screws included for installation assistance.
•Conforms to UL 508 standard.
•Environmentally compliant with RoHS.
Specifications:

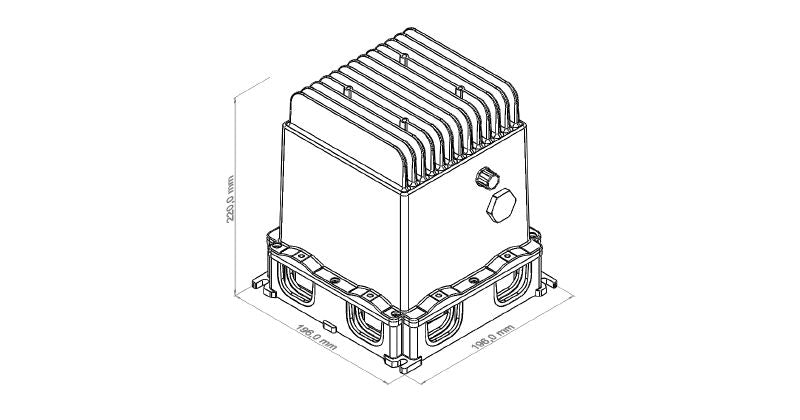

| Depth | 220 mm |
| Height | 196 mm |
| Width | 196 mm |
| Net weight | 4000 g |

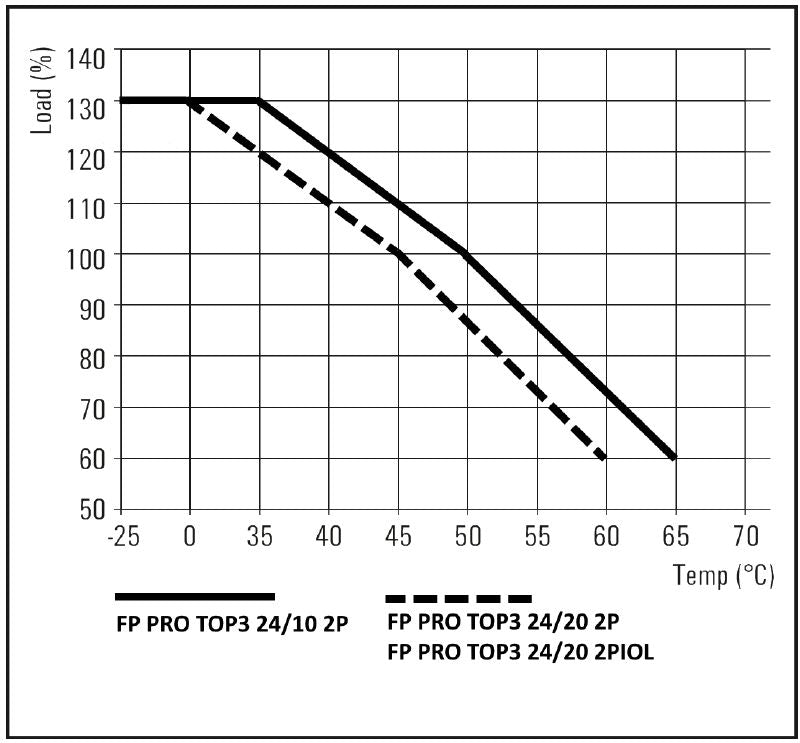

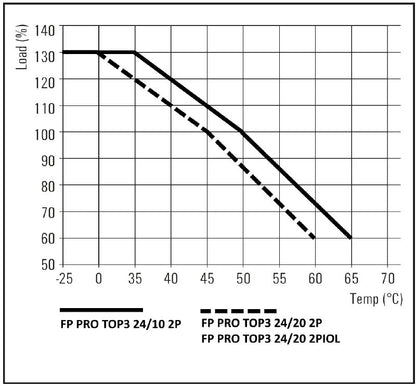

| Operating temperature | -25 °C to +50 °C |
| Storage temperature | -10 °C to +60 °C |
| AC current consumption | 0.7 A @ 400 V DC / 0.8 A @ 320 V AC |
| Output voltage | 24 V DC ± 1 % |
| Output power | 240 W |
| Surge protection | Varistor |
| Input voltage range | 3 x 320...3 x 575 V AC / 2 x 360...2 x 575 V AC |
| DC input voltage range | 450...800 V DC (max. 500 V DC acc. to UL508) |
| Recommended back-up fuse | 2 - 3 A, Char. C |
| Insulation coordination | Surge voltage category III, II |
| Rated voltage | 600 V |
| Rated current | 30 A |
