2632940000 - 196mm x 284mm Polycarbonate FieldPower Enclosure, IP65 Rated
2632940000 - 196mm x 284mm Polycarbonate FieldPower Enclosure, IP65 Rated
SKU: SKU: 2632940000 Download PDF
- 2632940000 - 196mm x 284mm Polycarbonate FieldPower Enclosure, IP65 Rated
- 2632940000 - 196mm x 284mm Polycarbonate FieldPower Enclosure, IP65 Rated
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

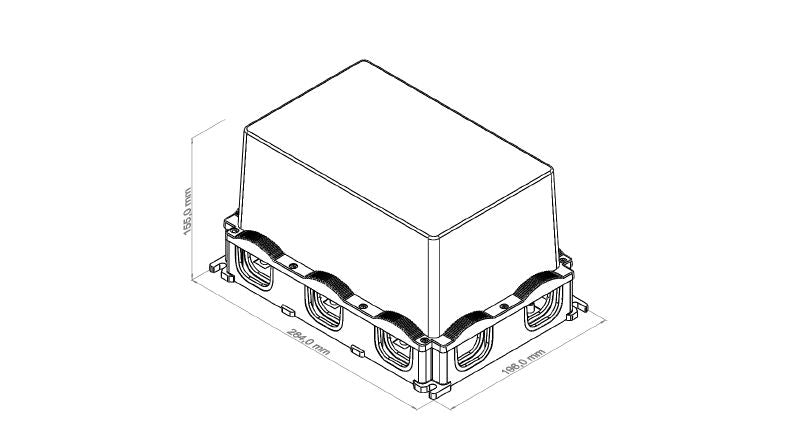

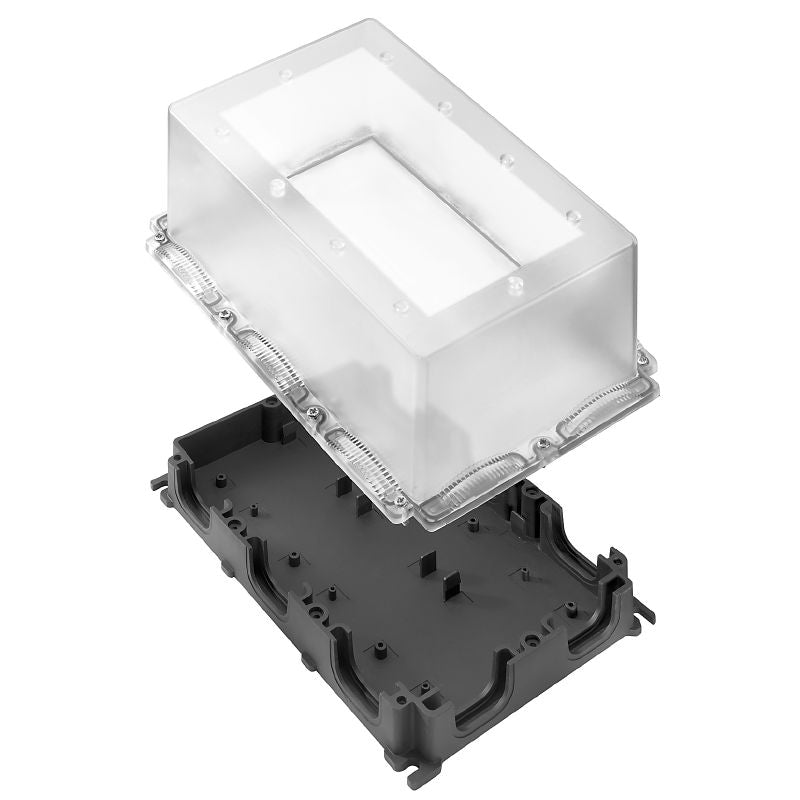

Introducing the FieldPower enclosures, expertly crafted for optimal protection and durability With dimensions of 196 mm in height, 284 mm in width, and a depth of 155 mm, these enclosures are constructed from reinforced polycarbonate They offer reliable IP65 protection when securely closed Available in both black and transparent finishes, they are perfect for a variety of applications.
Features and Benefits:
•Made from glass-fibre reinforced polycarbonate.
•IP65 protection in closed state.
•Includes lid screws for installation.
•Compliant with RoHS regulations.
Specifications:
| Depth: | 155 mm (6.102 inch) |
| Height: | 196 mm (7.717 inch) |
| Width: | 284 mm (11.181 inch) |
| Storage temperature: | -40 °C to 85 °C |
| Operating temperature: | -40 °C to 85 °C |
| Protection degree: | IP65 |
| UL 94 flammability rating: | V-0 |
| Torque for lid screws: | 2 Nm |
| Type of mounting: | Screw mounting |
