2632930000 - Black IP65 Rated Enclosure, 196mm x 284mm x 155mm
2632930000 - Black IP65 Rated Enclosure, 196mm x 284mm x 155mm
SKU: SKU: 2632930000 Download PDF
- 2632930000 - Black IP65 Rated Enclosure, 196mm x 284mm x 155mm
- 2632930000 - Black IP65 Rated Enclosure, 196mm x 284mm x 155mm
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

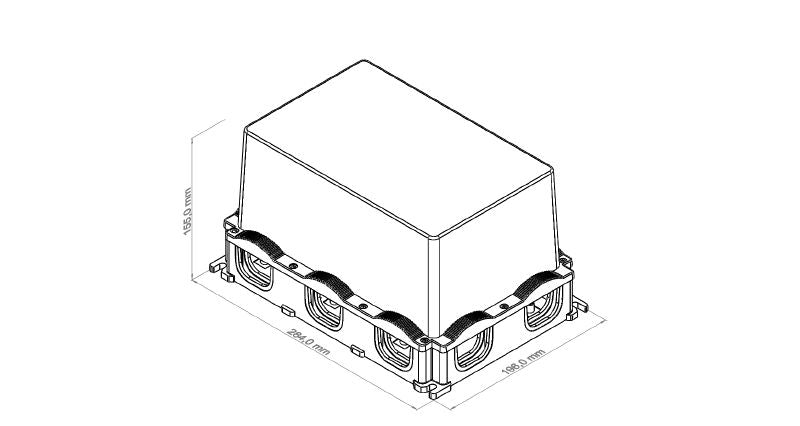

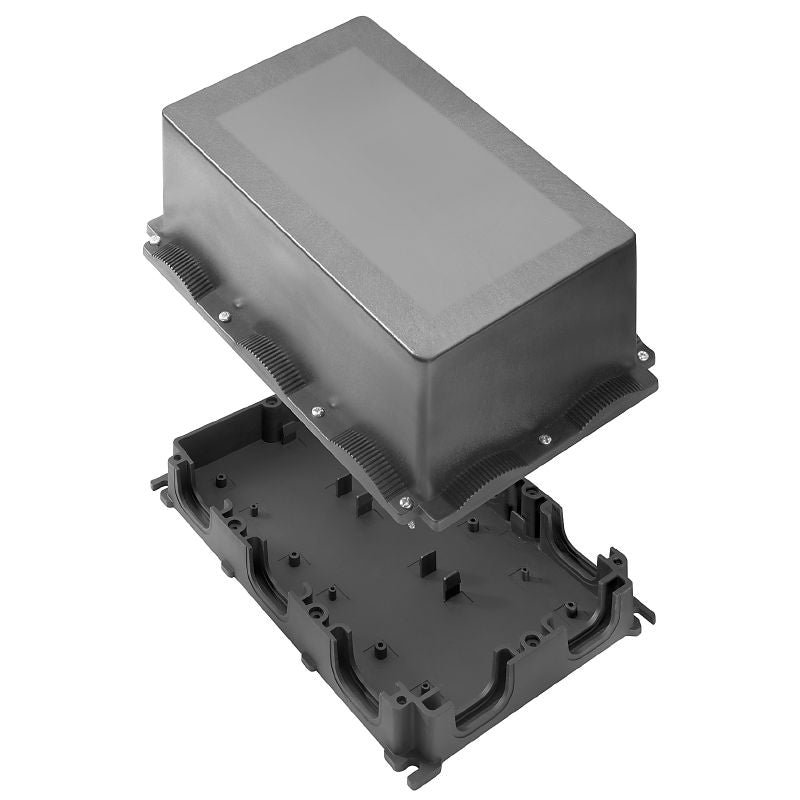

Introducing the FieldPower enclosure, crafted from durable glass-fibre reinforced polycarbonate in a sleek black finish This enclosure boasts dimensions of 155 mm in depth, 196 mm in height, and 284 mm in width, providing a sturdy structure that is IP65 rated for exceptional protection Suitable for a wide range of temperatures, it operates effectively between -40 °C and 85 °C Additionally, this product is RoHS compliant and comes with necessary documentation, including the cULus certificate, ensuring safety and quality.
Features and Benefits:
•Glass-fibre reinforced polycarbonate construction.
•IP65 protection rating.
•UL 94 flammability rating of 5VA.
•Screw mounting type.
•Lid screws included for installation.
Specifications:
| Depth | 155 mm |
| Height | 196 mm |
| Width | 284 mm |
| Storage temperature | -40 °C to 85 °C |
| Operating temperature | -40 °C to 85 °C |
| Torque for lid screws | 2 Nm |
| GTIN (EAN) | 4050118664508 |
| Protection degree | IP65 |
| Silicone | No |
| Environmental Compliance | Compliant without exemption |
| REACH SVHC | Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | 5f19cd84-8946-4797-9386-3ac323b95c10 |
