Description:

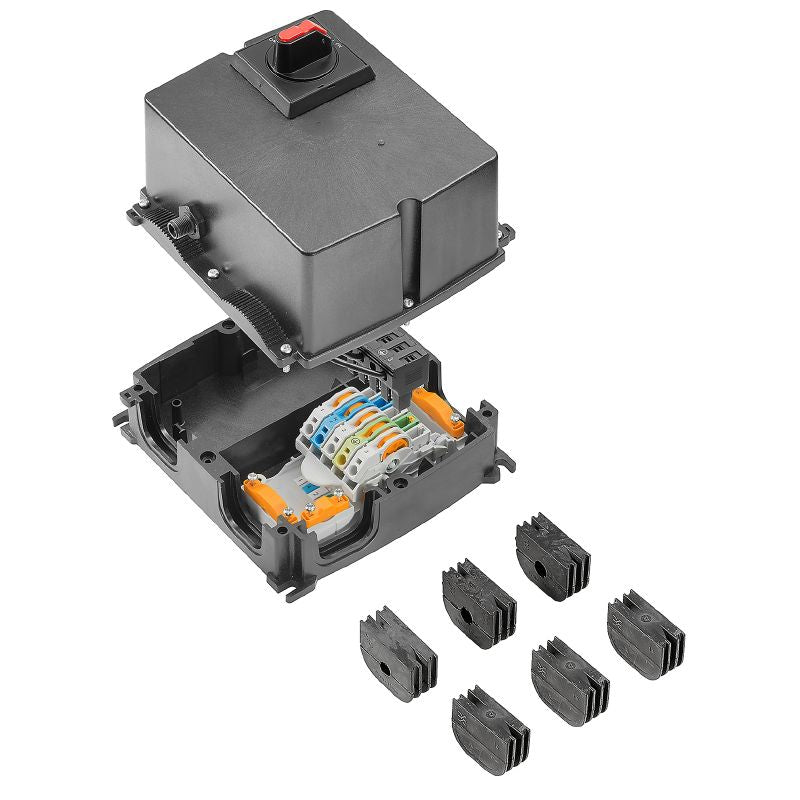

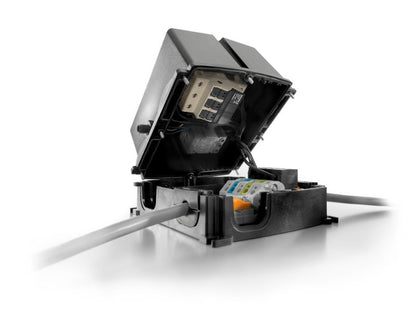

Introducing the FieldPower power distribution box, expertly engineered for 3-phase AC systems and boasting an IP65 rating for superior protection against the elements Crafted from durable glass-fiber reinforced polycarbonate, this box features an innovative insulation displacement connection, allowing for swift and tool-free wiring Additionally, it comes equipped with a maintenance switch for enhanced functionality.
Features and Benefits:
•Made from glass-fiber reinforced polycarbonate.
•Rated IP65 for environmental protection.

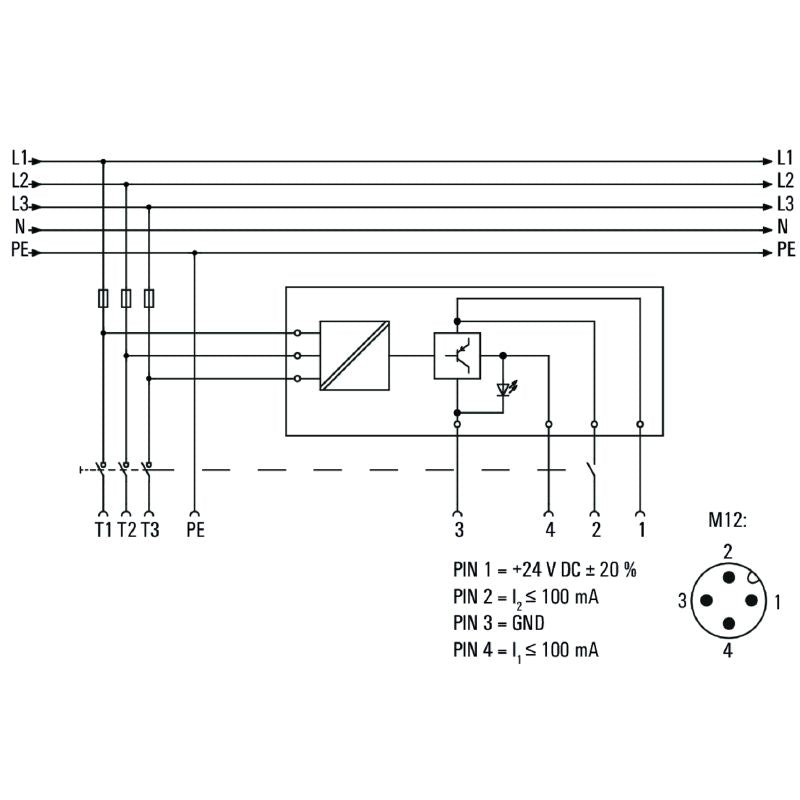

•Suitable for three-phase AC applications.
•Maintenance switch functionality included.
•Has screw mounting for installation.
•Can accommodate various conductor cross-section sizes.
Specifications:

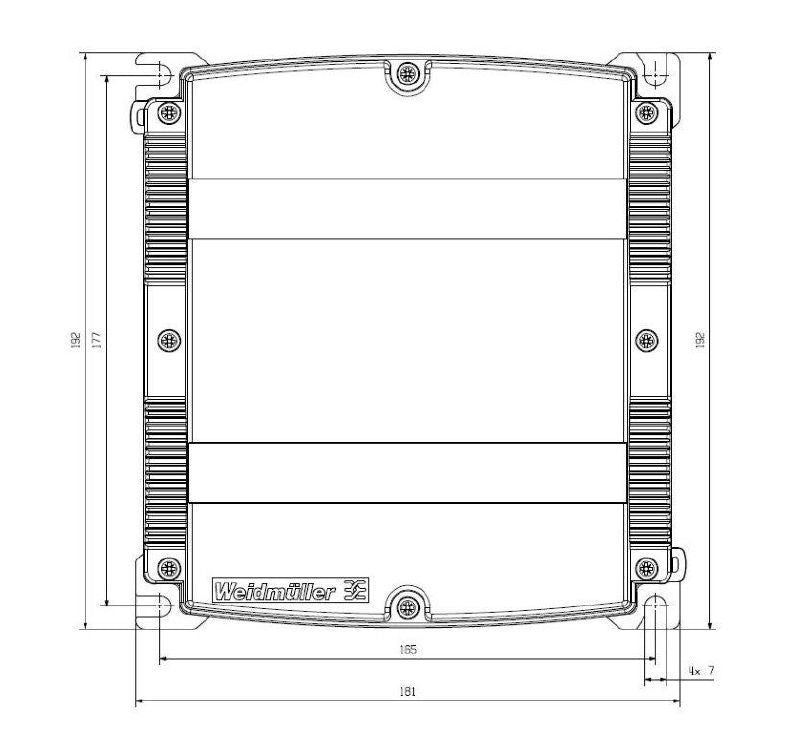

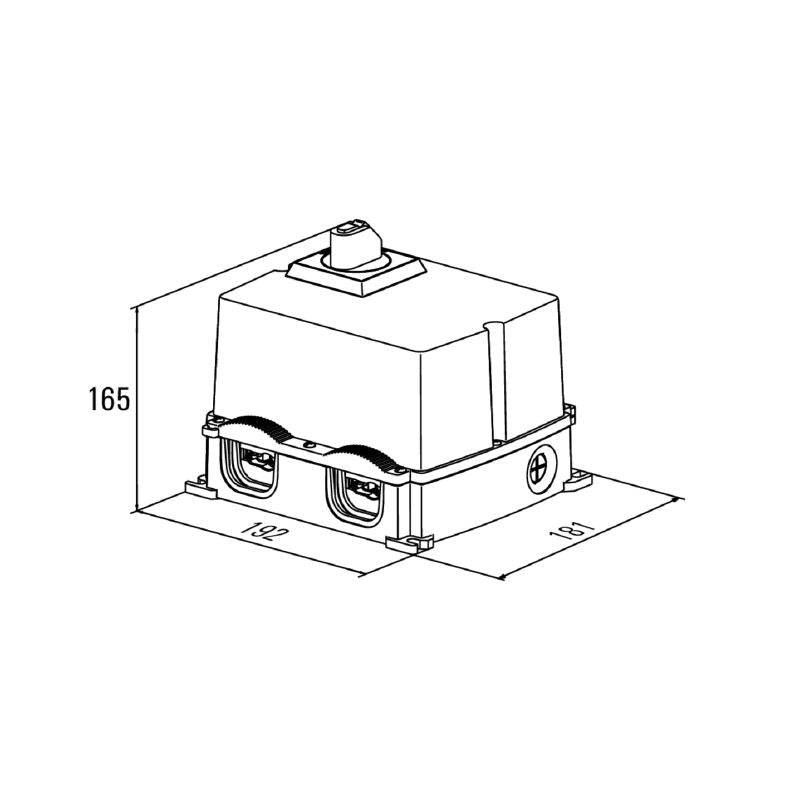

| Depth | 165 mm |
| Height | 181 mm |
| Width | 192 mm |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -25 °C…45 °C |
| Operating temperature | -25 °C...45 °C |
| Protection degree | IP65 |
| UL 94 flammability rating | 5VA |
| Rated voltage | 800 V |
| Rated current (3 loaded poles) | 41 A |
| Number of poles | 5 |
| Torque for lid screws | 2 Nm |
