2659750000 - IP65 Rated Black Polycarbonate Enclosure 196mm x 196mm x 155mm
2659750000 - IP65 Rated Black Polycarbonate Enclosure 196mm x 196mm x 155mm
SKU: SKU: 2659750000 Download PDF
- 2659750000 - IP65 Rated Black Polycarbonate Enclosure 196mm x 196mm x 155mm
- 2659750000 - IP65 Rated Black Polycarbonate Enclosure 196mm x 196mm x 155mm
Couldn't load pickup availability
Description:

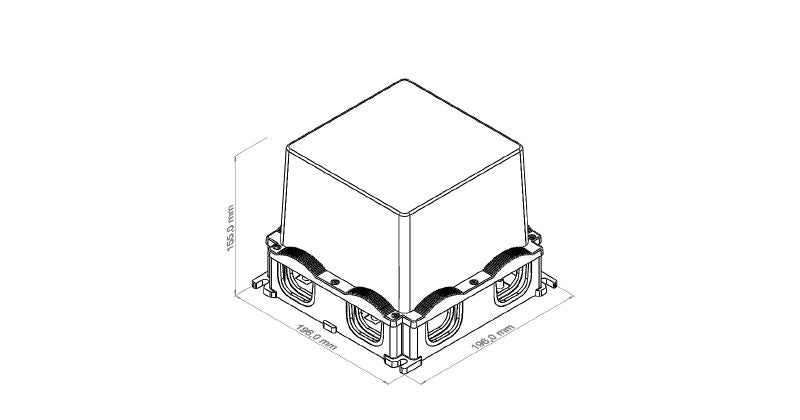

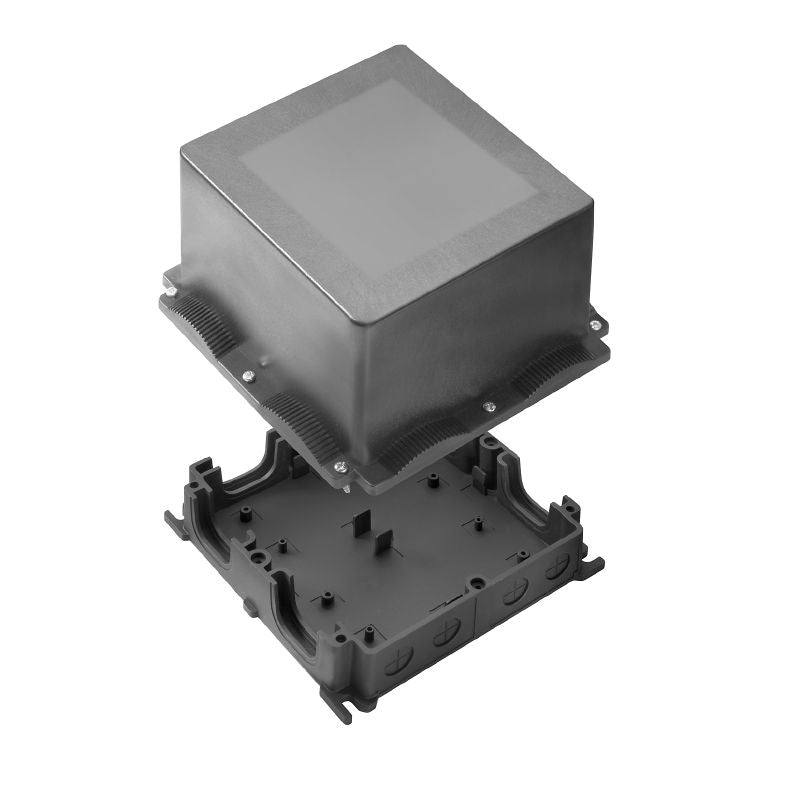

Discover the robust FieldPower enclosures, expertly crafted with dimensions of 196 mm in width, 196 mm in height, and a depth of 155 mm Engineered from glass-fibre reinforced polycarbonate, these enclosures boast a striking black finish and an impressive IP65 rating for protection against dust and water With a wide operational temperature range from -40 °C to 85 °C, they are ideal for reliable storage and functionality in various environments.
Features and Benefits:
•Compliant with RoHS without exemption.
•UL 94 flammability rating of 5VA.
•Includes lid screws for installation.
•Screw mounting type with fixing lugs.
Specifications:
| Depth | 155 mm |
| Height | 196 mm |
| Width | 196 mm |
| Protection degree | IP65 |
| Enclosure material | glass-fibre reinforced polycarbonate |
| Storage temperature | -40 °C to 85 °C |
| Operating temperature | -40 °C to 85 °C |
| Torque for lid screws | 2 Nm |
