Description:

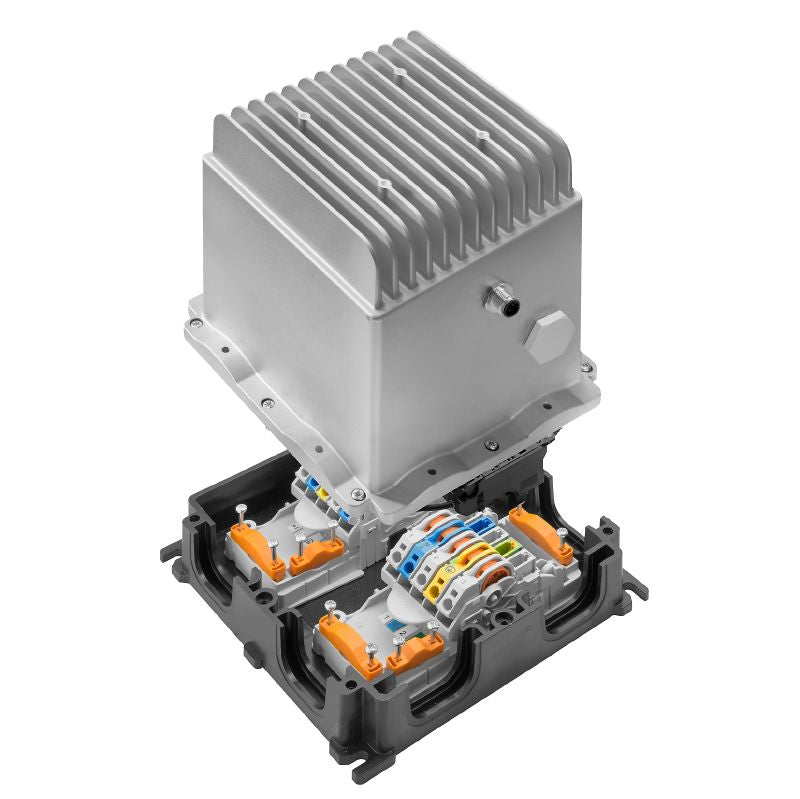

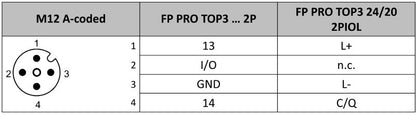

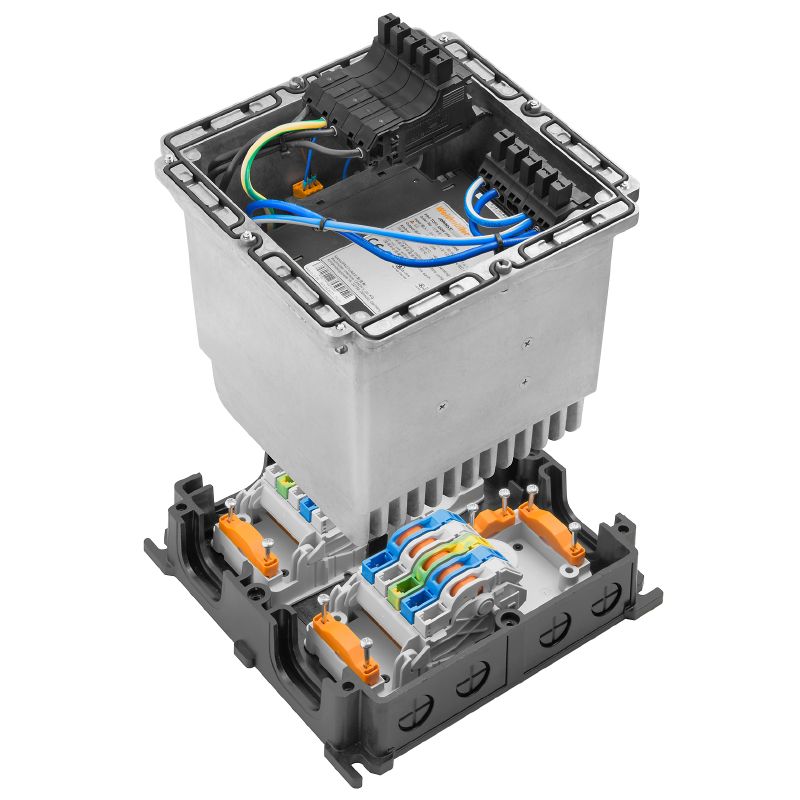

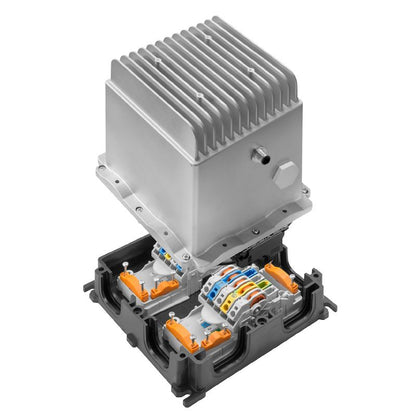

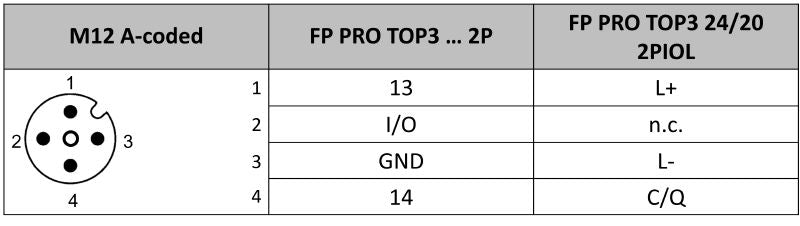

Introducing the FieldPower power supply unit, a robust solution featuring an IP65 rating, ensuring protection against dust and water ingress Capable of delivering 20A at 24 V DC, this unit is equipped with an IDC terminal that incorporates a convenient PUSH IN mechanism, making connectivity simple It is also compatible with M12 A-coded connectors (IO-Link), enhancing its versatility across various applications.
Designed for durability, the FieldPower unit operates efficiently within a wide temperature range and adheres to RoHS regulations, making it suitable for diverse environments.
Features and Benefits:
•Protection degree IP65 in closed state.
•Short-circuit protection included.
•Integrated surge protection using a varistor.
•Temperature ranges allow for use in various conditions.
•Humidity range of 35 to 85%, non-condensing.
Specifications:

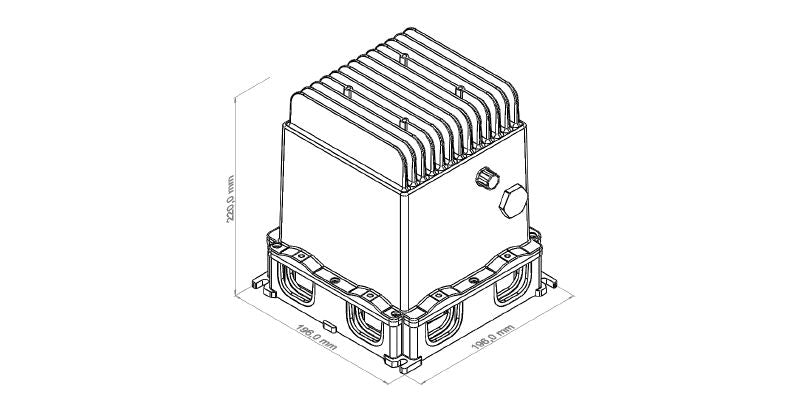

| Depth | 220 mm |
| Height | 196 mm |
| Width | 196 mm |
| Net weight | 4,256 g |
| Storage temperature | -10 °C...60 °C |
| Operating temperature | -25 °C...45 °C |
| Input voltage range (AC) | 3 x 320...3 x 575 V AC / 2 x 360...2 x 575 V AC |
| DC input voltage range | 450...800 V DC |

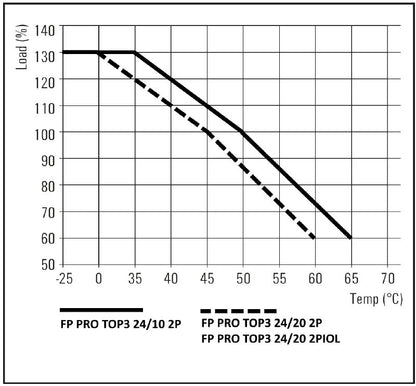

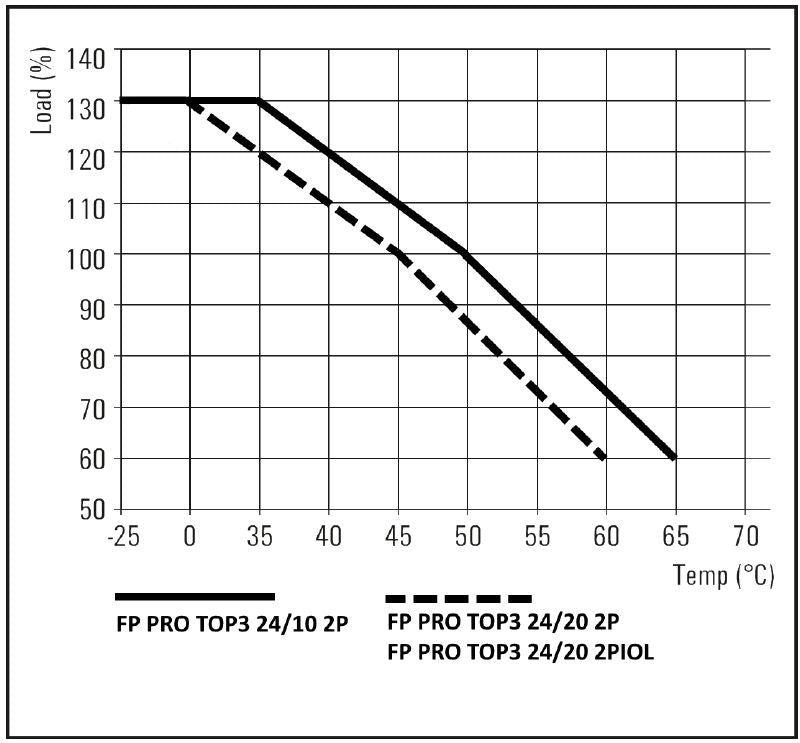

| Nominal output current | 20 A @ 60 °C |
| Output voltage | 24 V DC ± 1 % |
| Surge voltage category | III |
| Rated voltage | 600 V |
| Rated current | 20 A |
