Description:

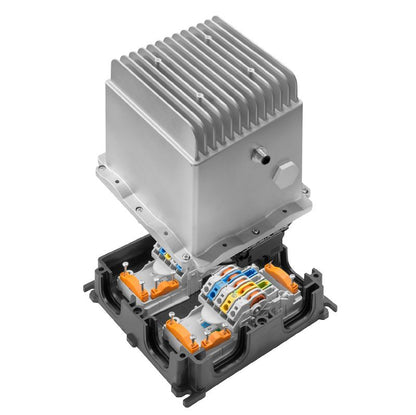

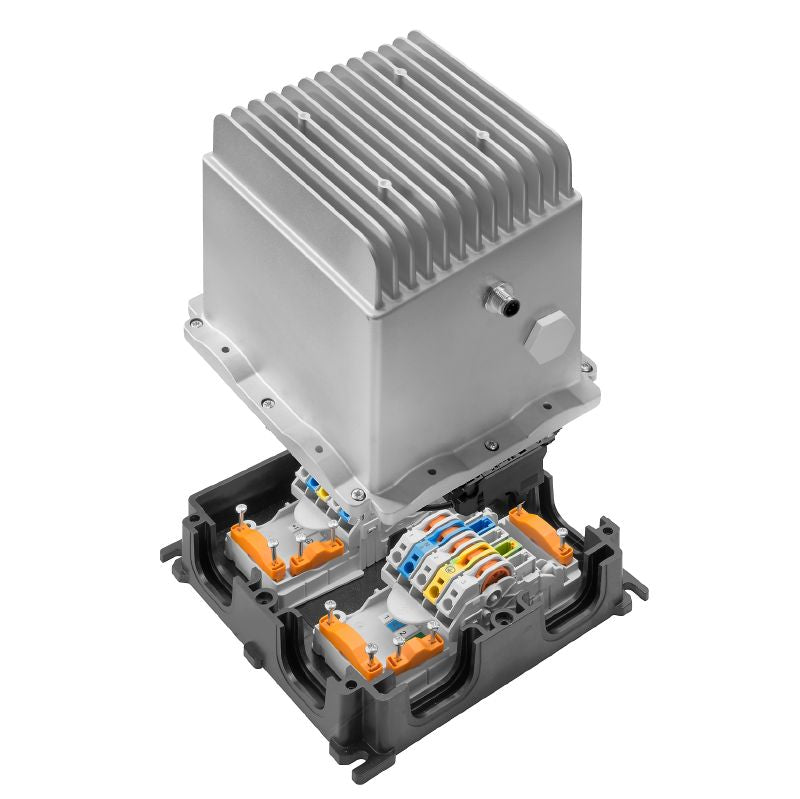

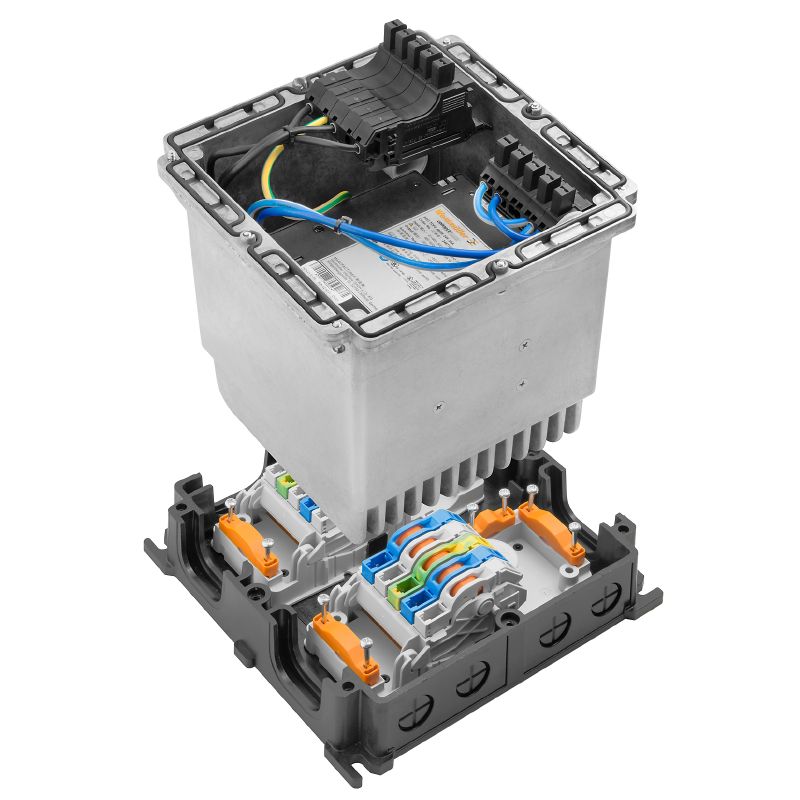

Introducing the FieldPower power supply unit, expertly crafted for 24V DC applications with a robust 20A rating This unit boasts a reliable IP65 enclosure, ensuring durability in various environments Its user-friendly design incorporates IDC terminal connections with a convenient PUSH IN feature for easy installation With the capability to handle a maximum input voltage of 800 V DC or 575 V AC, this power supply complies with UL508 standards, providing peace of mind in performance and safety.
Features and Benefits:
•Compliant with RoHS standards.

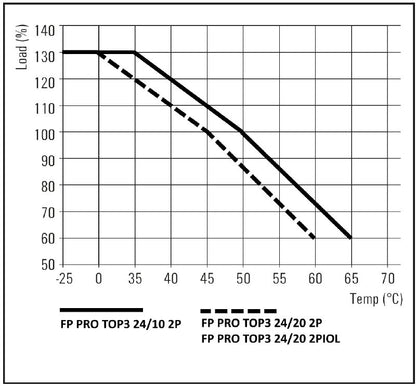

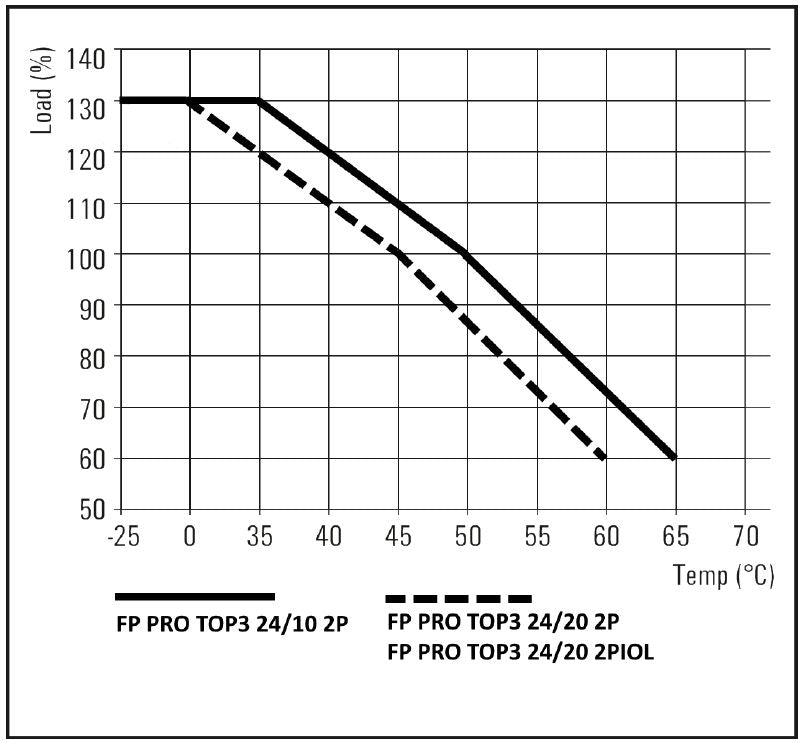

•Operates in a wide temperature range from -25 °C to 45 °C.
•Provides surge protection using a varistor.
•Equipped with IP65 protection in closed state.
•Short-circuit protection is included.
•Includes installation advice with lid screws.
Specifications:

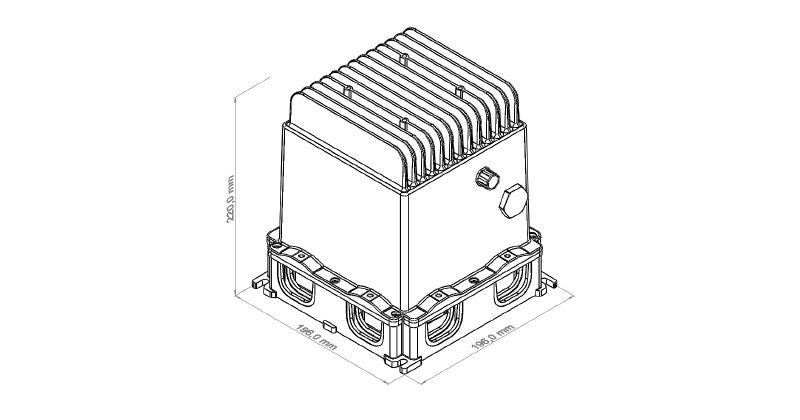

| Depth | 220 mm |
| Height | 196 mm |
| Width | 196 mm |
| Net weight | 4,211 g |
| Operating temperature | -25 °C...45 °C |
| Storage temperature | -10 °C...60 °C |
| Input voltage range (AC) | 3 x 320...3 x 575 V AC / 2 x 360...2 x 575 V AC |
| Input voltage range (DC) | 450...800 V DC |
| Output voltage | 24 V DC |
| Output current | 20 A |
| Output power | 480 W |
| Protection degree | IP65 |
| Surge voltage category | III |
| Rated current (3 loaded poles) | 41 A |
| Rated voltage | 800 V |
