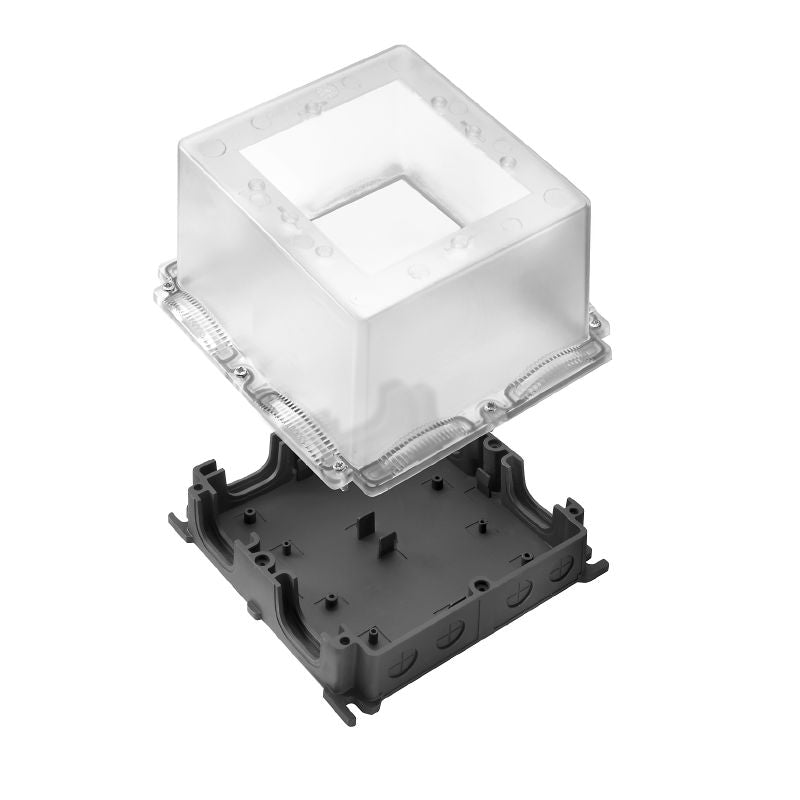

2659760000 - IP65 Polycarbonate Enclosure 196x196x155mm, Black or Transparent
2659760000 - IP65 Polycarbonate Enclosure 196x196x155mm, Black or Transparent
SKU: SKU: 2659760000 Download PDF
- 2659760000 - IP65 Polycarbonate Enclosure 196x196x155mm, Black or Transparent
- 2659760000 - IP65 Polycarbonate Enclosure 196x196x155mm, Black or Transparent
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing FieldPower enclosures, expertly designed with dimensions of 196 mm x 196 mm x 155 mm and an impressive IP65 rating Crafted from glass-fibre reinforced polycarbonate, these enclosures are available in both black and transparent finishes Compliant with ROHS standards and UL certified (file number E256877), they offer reliable protection for your electrical components in various environments.
Features and Benefits:
•Lightweight design with a net weight of 691.82 g.
•Includes lid screws for easy installation.
•Torque for lid screws is 2 Nm.
•Designed for screw mounting.
Specifications:
| Depth | 155 mm |
| Height | 196 mm |
| Width | 196 mm |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...85 °C |
| Protection degree | IP65 |
| Basic material | Polycarbonate, glass fibre reinforced |
| Enclosure material | Polycarbonate, glass-fibre reinforced polycarbonate |
| UL 94 flammability rating | V-0 |
| GTIN (EAN) | 4050118704730 |
| SCIP | 5f19cd84-8946-4797-9386-3ac323b95c10 |
