8000044517 - 24V DC FieldPower Supply Unit for IP65 Applications
8000044517 - 24V DC FieldPower Supply Unit for IP65 Applications
SKU: SKU: 8000044517 Download PDF
- 8000044517 - 24V DC FieldPower Supply Unit for IP65 Applications
- 8000044517 - 24V DC FieldPower Supply Unit for IP65 Applications
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the FieldPower power supply unit, specifically crafted for IP65-rated environments With a robust operating voltage of 24 V DC and a current capacity of up to 20A, this unit is versatile enough to perform reliably across various conditions, functioning optimally in temperatures ranging from -25 °C to 45 °C It meets RoHS standards and is equipped with essential features such as internal fuse protection and surge safeguarding through a varistor, ensuring safe and efficient operation.
Features and Benefits:
•IP65 rated for dust and water protection.
•Operating temperature from -25 °C to 45 °C.
•Adjustable output voltage via potentiometer.
•Includes lid screws for installation.
Specifications:

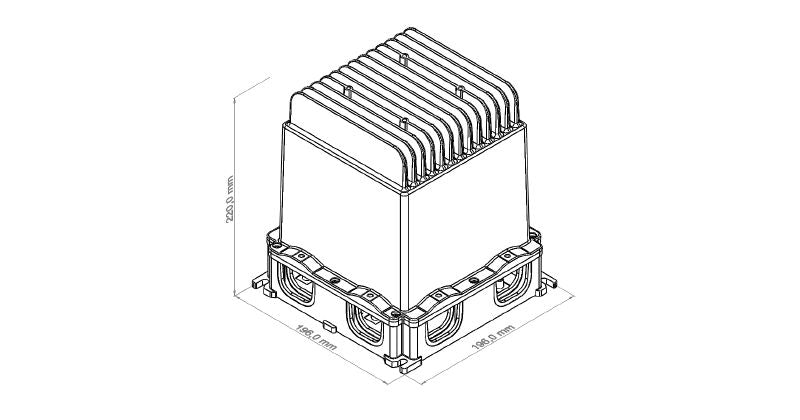

| Depth | 220 mm |
| Height | 196 mm |
| Width | 196 mm |
| Input voltage range | 85…277 V AC |
| Output current | 20 A |
| Output voltage | 24 V DC |
| Storage temperature | -40 °C to 85 °C |
| Operating temperature range | -25 to 50 °C |
| Protection degree | IP65 |
| Surge protection | Varistor |
| Inrush current | max. 5 A |
| Humidty | 35…85%, non condensing and non freezing |
