Description:

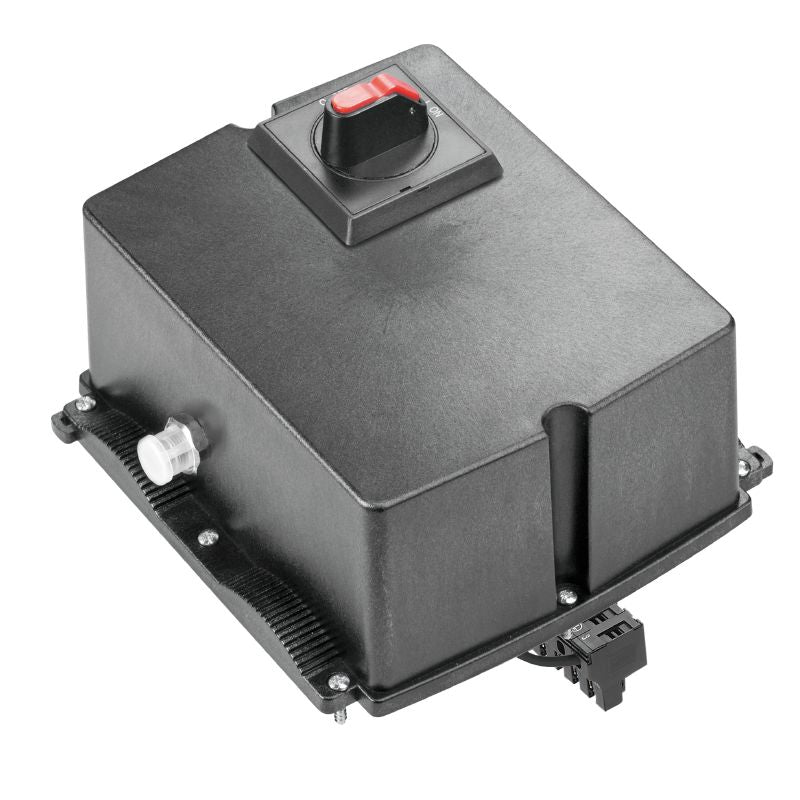

Experience reliable functionality with the GHDE 10P HO ON/OFF PTS4 maintenance switch, featuring a sturdy enclosure crafted from glass-fibre reinforced polycarbonate This switch boasts dimensions of 181 mm in height, 192 mm in width, and 122 mm in depth, ensuring an IP65 protection rating for versatility in various environments Compliant with RoHS regulations, it operates efficiently in temperatures from -40 °C to 45 °C and can be safely stored in conditions ranging from -40 °C to 55 °C, making it a durable choice for diverse applications.
Features and Benefits:
•IP65 protection degree.
•Constructed from glass-fibre reinforced polycarbonate.
•Maintenance switch functionality.
•Lid screws are included for installation.
Specifications:
| Depth | 122 mm |
| Height | 181 mm |
| Width | 192 mm |
| Operating temperature | -40 °C...45 °C |
| Storage temperature | -40 °C...55 °C |
| Insulating material | GF 10 |
| Protection degree | IP65 |
| Operating voltage | 440 V |
| Rated current AC-23A | 16 A |
| Power rating AC-23A | 7.5 kW |
| Terminals - torque | 0.8 Nm |
| Clamping range, plug, min. | 0.75 mm² |
| Clamping range, plug, max. | 10 mm² |
| Wire connection cross section AWG, min. | AWG 18 |
| Wire connection cross section AWG, max. | AWG 8 |
