8000044515 - 24V 10A IP65 Power Supply Unit, Fully Assembled
8000044515 - 24V 10A IP65 Power Supply Unit, Fully Assembled
SKU: SKU: 8000044515 Download PDF
- 8000044515 - 24V 10A IP65 Power Supply Unit, Fully Assembled
- 8000044515 - 24V 10A IP65 Power Supply Unit, Fully Assembled
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

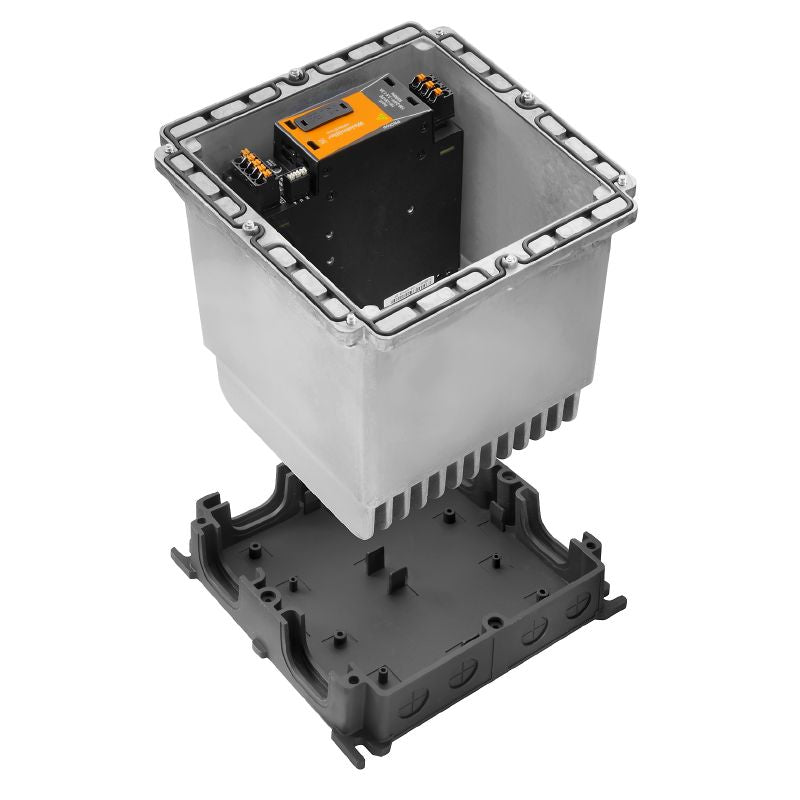

Introducing the FieldPower power supply unit, a robust solution offering IP65 protection when closed This unit comes fully assembled for your convenience and operates efficiently at 24 V DC with a maximum current capacity of 10 A Additionally, it meets RoHS compliance standards, ensuring it is environmentally friendly and safe for use.
Features and Benefits:
•IP65 protection in closed state.
•Fully assembled unit.
•RoHS compliant.
Specifications:

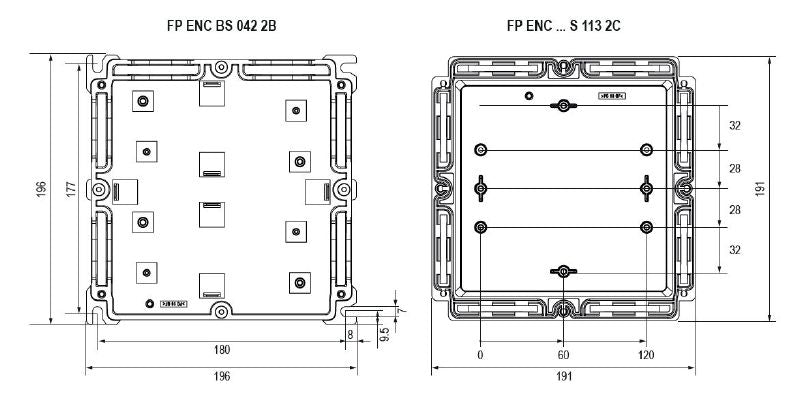

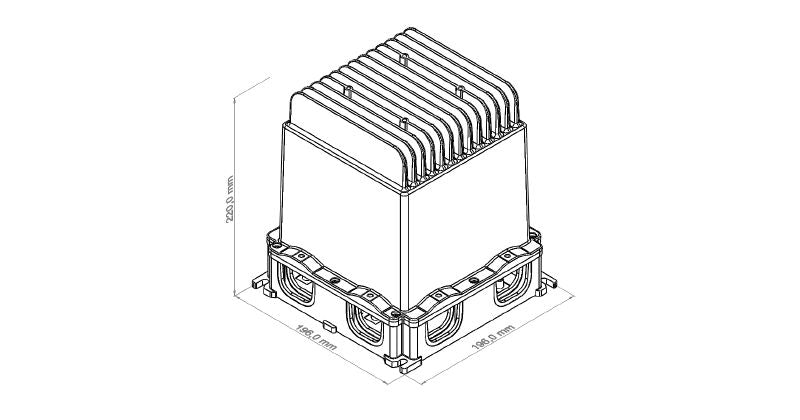

| Depth | 220 mm |
| Height | 196 mm |
| Width | 196 mm |
| Storage temperature | -40 °C to 85 °C |
| Operating temperature | -25 °C to 50 °C |
| Rated output voltage | 24 V DC ± 1 % |

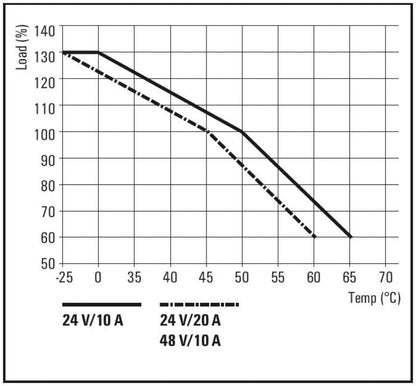

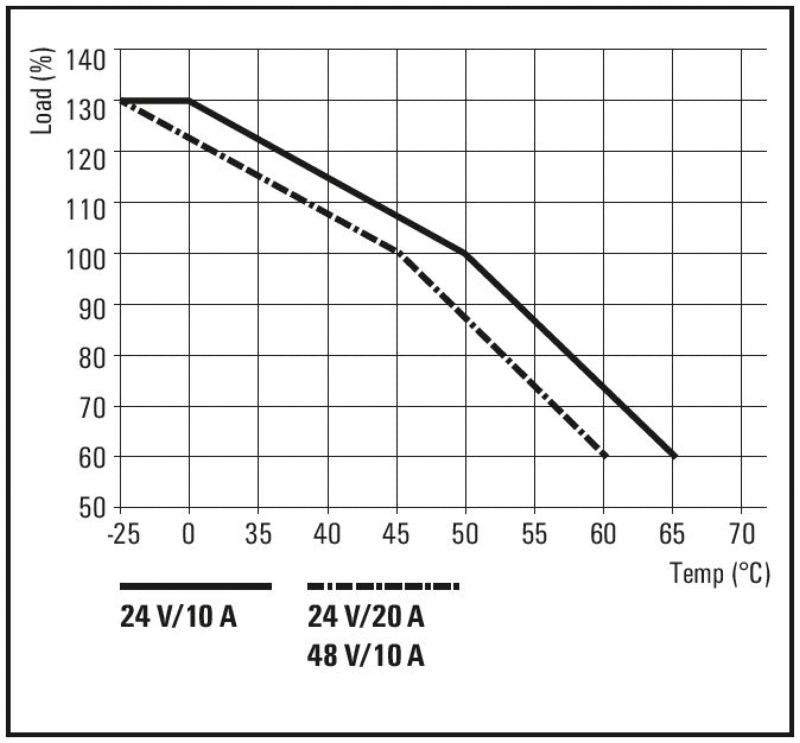

| Nominal output current for U_nom | 10 A @ 60 °C |
| Input voltage range | 85…277 V AC |
| Output current | 10 A |
| Surge protection | Varistor |
| Inrush current | max. 5 A |
| Protection degree | IP65 |
| DIN Rail compatibility | No |
| Electrical safety standards | Safety extra-low voltage SELV according to EN 60950, PELV according to EN 60204 |
| Humidity | 35…85%, non condensing and non freezing |
