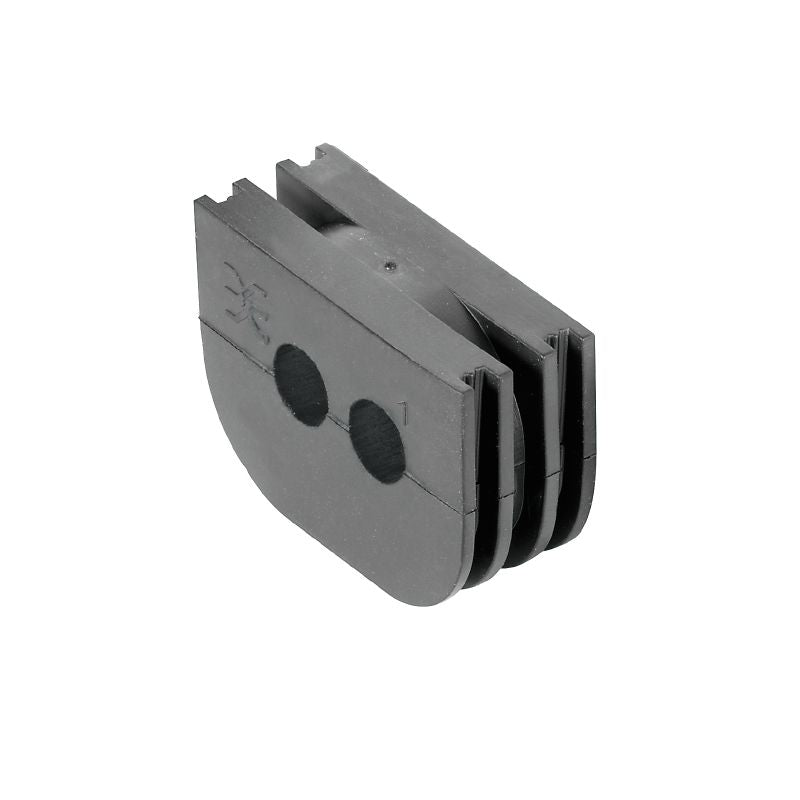

1114530000 - IP54 EPDM Sealing Insert for Field Power Applications (Pack of 10)
1114530000 - IP54 EPDM Sealing Insert for Field Power Applications (Pack of 10)
SKU: SKU: 1114530000 Download PDF
- 1114530000 - IP54 EPDM Sealing Insert for Field Power Applications (Pack of 10)
- 1114530000 - IP54 EPDM Sealing Insert for Field Power Applications (Pack of 10)
Couldn't load pickup availability
Description:
Introducing the RKDG 2XD85 WG PT6 sealing insert, expertly crafted for Field Power applications This high-performance product boasts an IP54 protection rating, ensuring reliable use in various environments Made from EPDM material, it adheres to RoHS standards and is free from any SVHC above specified weight limits Ideal for those seeking a strong and effective sealing solution, this insert is designed to meet demanding operational requirements.
Features and Benefits:
•Compliant with RoHS regulations.
•Can withstand storage and operating temperatures ranging from -40 °C to 85 °C.
•Designed for round line types.
•IP54 rated for environmental protection.
•Field Power installations.
•Sealing applications requiring durability.
Specifications:
| Depth: | 18 mm |
| Height: | 33.8 mm |
| Width: | 46.7 mm |
| Outer cable diameter, min.: | 8.5 mm |
| Outer cable diameter, max.: | 10.5 mm |
| Basic material: | EPDM |
| Protection degree: | IP54 |
| UL 94 flammability rating: | HB |
| Mounting position, installation notice: | in FieldPower sealing slot |
| GTIN (EAN): | 4032248892624 |
