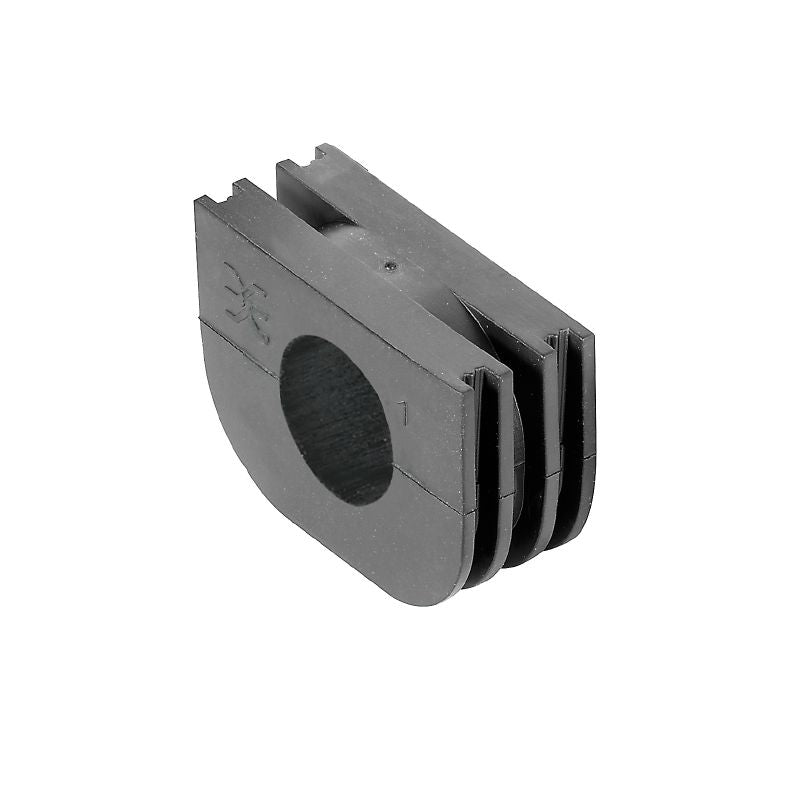

1069060000 - EPDM Sealing Insert, IP54 Rated, Temp Range -40°C to 85°C (Pack of 10)
1069060000 - EPDM Sealing Insert, IP54 Rated, Temp Range -40°C to 85°C (Pack of 10)
SKU: SKU: 1069060000 Download PDF
- 1069060000 - EPDM Sealing Insert, IP54 Rated, Temp Range -40°C to 85°C (Pack of 10)
- 1069060000 - EPDM Sealing Insert, IP54 Rated, Temp Range -40°C to 85°C (Pack of 10)
Couldn't load pickup availability
Description:
Introducing the RKDG D24 WG PT6 sealing insert, specifically engineered for use in Field Power applications This high-performance component boasts an IP54 protection rating, ensuring it can withstand various environments Made from durable EPDM material, it is designed to function effectively within a broad temperature range from -40 °C to 85 °C With full RoHS compliance, this insert meets strict environmental safety standards with no exceptions.
Additionally, it is economically categorized across multiple ETIM and ECLASS classifications, allowing for easy integration and seamless purchasing options.
Features and Benefits:
•Compliant with RoHS regulations.
•IP54 protection degree.
•Designed for installation in FieldPower sealing slots.
•Constructed from EPDM material.
•Suitable for round line types.
Specifications:
| Depth | 18 mm |
| Height | 33.8 mm |
| Width | 46.7 mm |
| Length | 5 m |
| Outer cable diameter, max. | 24 mm |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...85 °C |
| UL 94 flammability rating | HB |
| General ordering data | Version Field Power sealing insert |
