2743480000 - IP65 Electronic Load Monitor for 4A Capacitive Loads
2743480000 - IP65 Electronic Load Monitor for 4A Capacitive Loads
SKU: SKU: 2743480000 Download PDF
- 2743480000 - IP65 Electronic Load Monitor for 4A Capacitive Loads
- 2743480000 - IP65 Electronic Load Monitor for 4A Capacitive Loads
Couldn't load pickup availability
Description:
Introducing the FieldPower electronic load monitoring device, expertly crafted to function in IP65 environments, making it ideal for specific 4 A applications It features robust M12 A-coded connectors for seamless power and IO-Link connectivity This device operates on a DC voltage range of 18 V to 30 V, with a standard rated voltage of 24 V DC Additionally, it allows for adjustable rated currents and can accommodate capacitive loads of up to 4,700 µF, ensuring extensive versatility in its use.
Features and Benefits:
•IP65 protection rating for reliable use in various environments.
•Internal fuse is not present.
•Adjustable rated current.
•Lid screws are included for easy installation.
•Suppressor diode enhances surge protection.
Specifications:

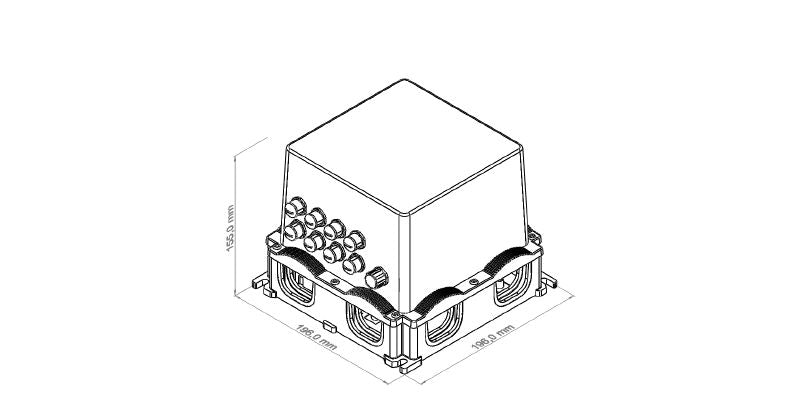

| Depth | 155 mm |
| Height | 196 mm |
| Width | 196 mm |
| Net weight | 1,769 g |
| Storage temperature | -10 °C to 60 °C |
| Operating temperature | -20 °C to 45 °C |
| Humidity | 35% to 85%, non-condensing and non-freezing |
| Surge voltage category | III |
| Rated current per channel | 4 A |
| Capacitive load | 4.700 µF |
| Rated voltage | 800 V |
| Rated impulse withstand voltage | 8 kV |
