Description:

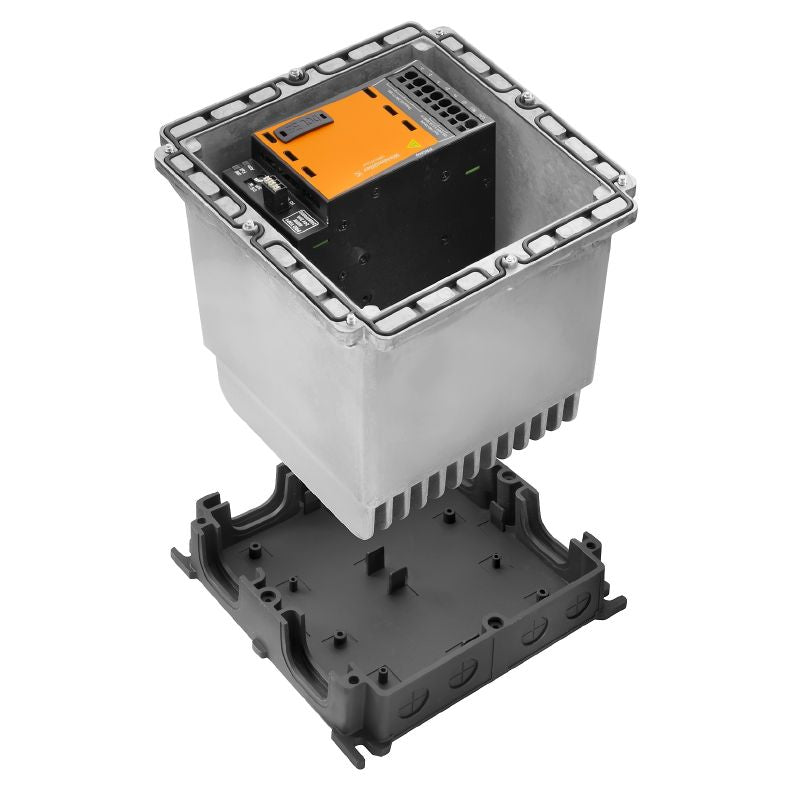

Introducing the FieldPower power supply unit, engineered for robust performance with a current rating of 10A and operating at 48 V DC This model is constructed to meet the IP65 protection standard, ensuring reliability in various environments Compliant with RoHS regulations, it boasts impressive specifications for efficiency

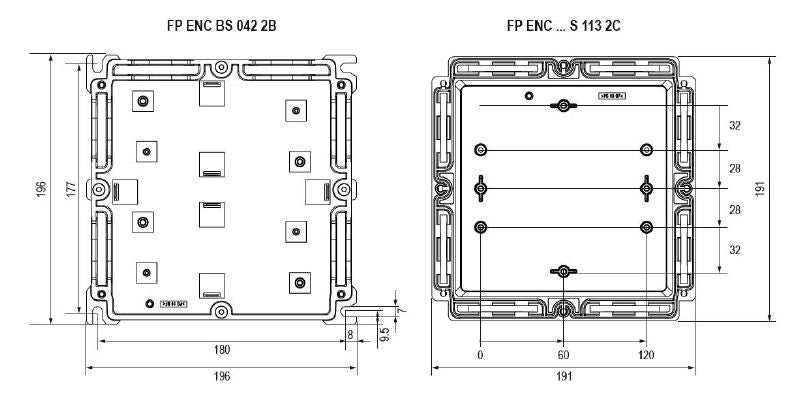

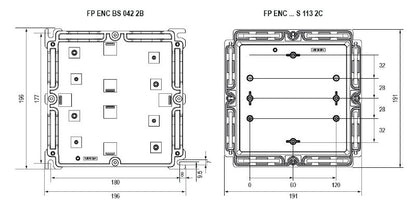

Measuring 220 mm deep, 196 mm high, and 196 mm wide, this power supply unit is both compact and powerful, weighing in at 4,735 g.
It operates effectively in a temperature range from -25 °C to 45 °C, and can be stored at temperatures between -40 °C and 85 °C Additionally, it can tolerate humidity levels from 35% to 85% without condensation or freezing, making it an excellent choice for diverse applications.
Features and Benefits:
•IP65 protection in closed state.
•Includes lid screws for installation.
•Surge protection with varistor.
•Internal input fuse present.
Specifications:
| Input voltage range | 85…277 V AC |
| Output current | 10A |
| Output voltage | 48 V DC ± 1 % |
| Nominal output current for U_nom | 10 A @ 60 °C |
| Start-up temperature | ≥ -40 °C |
| Protection degree | IP65 |
| Safety standards | SELV according to EN 60950, PELV according to EN 60204 |
| Humidity (Max) | 35…85%, non condensing and non freezing |
