Description:

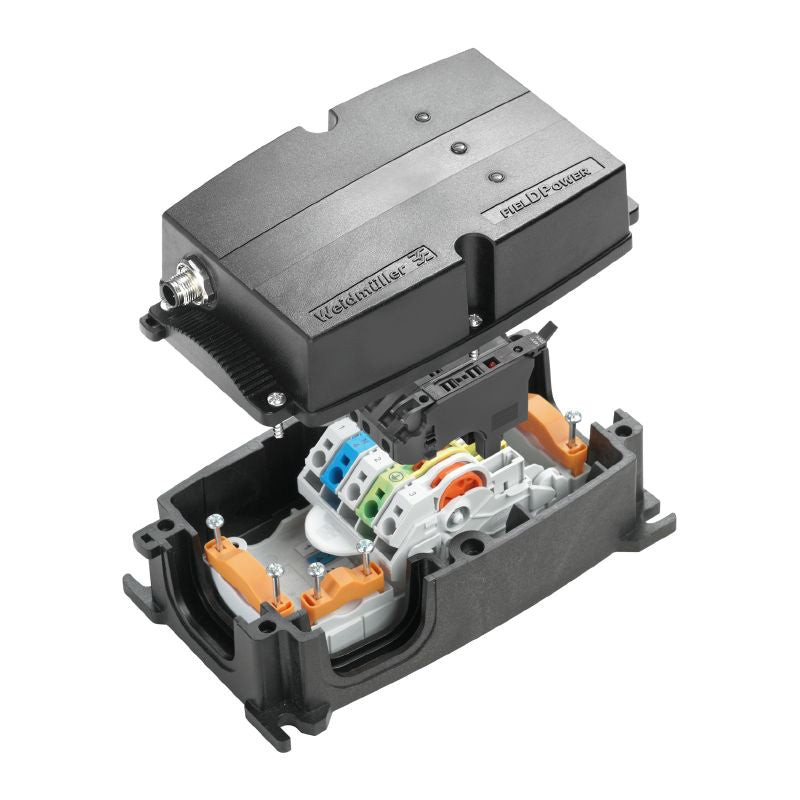

Introducing the FieldPower power distribution box, expertly crafted for 3-phase AC applications With its robust glass-fibre reinforced polycarbonate construction, this box ensures maximum durability and features a reliable IP65 rating when securely closed It incorporates an insulation displacement connection (IDC) mechanism along with push-in fuses, providing efficient and safe electrical management for your needs.
Features and Benefits:
•Environmental compliance with RoHS and REACH.
•Compliant with various exemption statuses.
•Lid screws for secure mounting included.

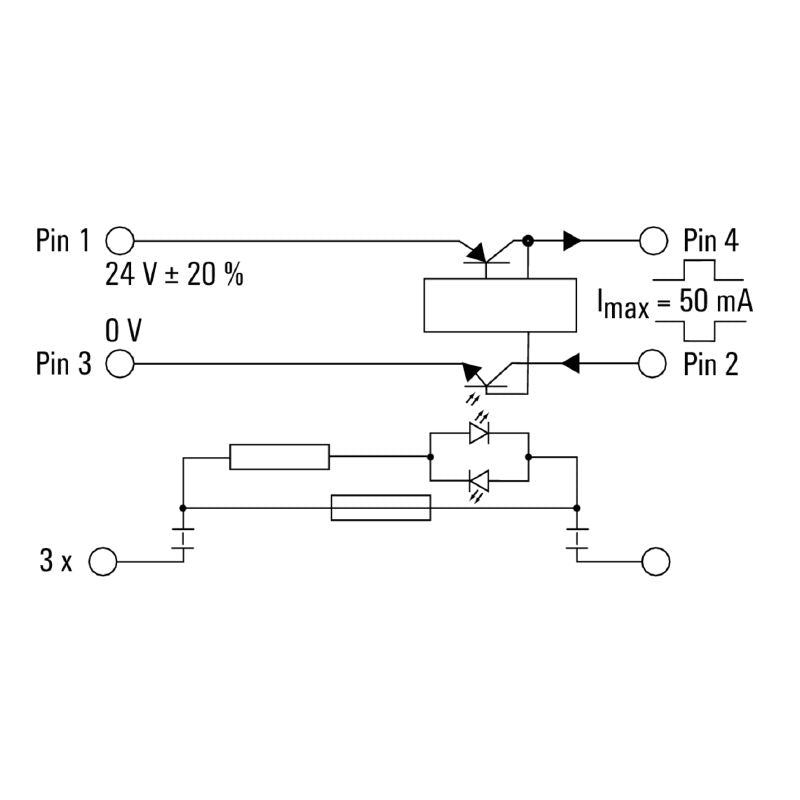

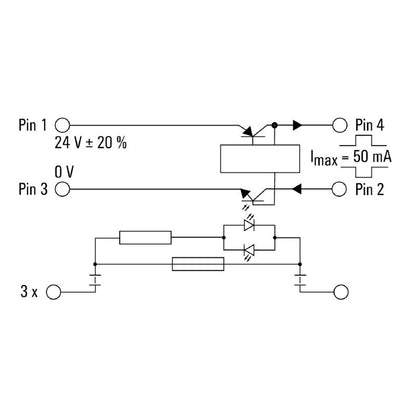

•Fuse functionality with a failure indicator.

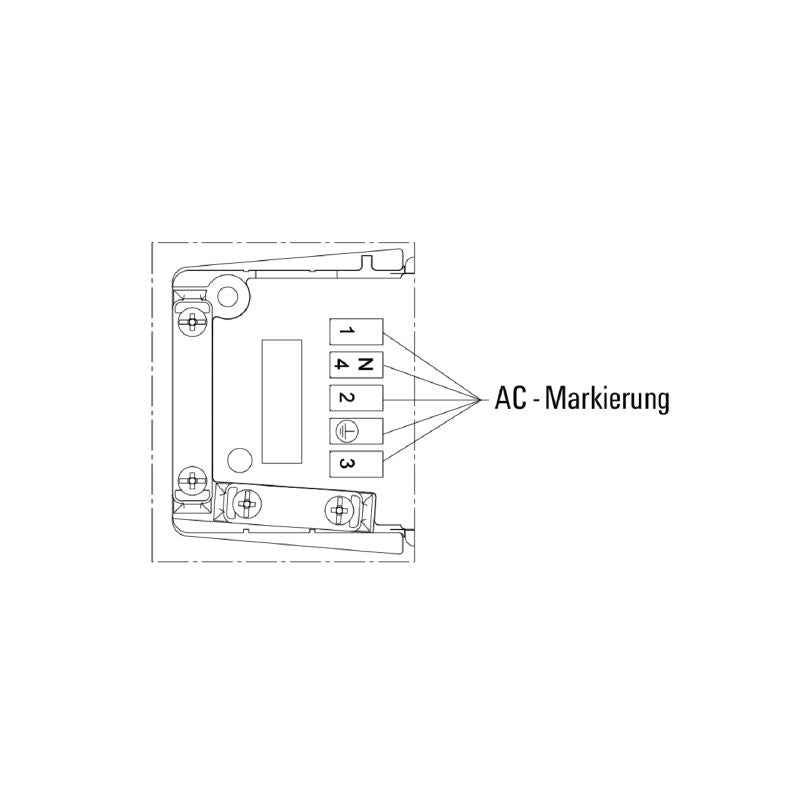

•Coded on PE for safety against incorrect connections.
Specifications:

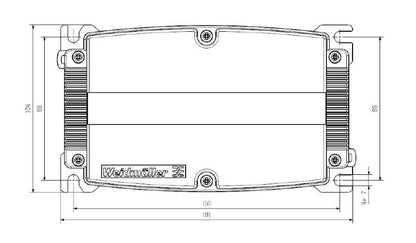

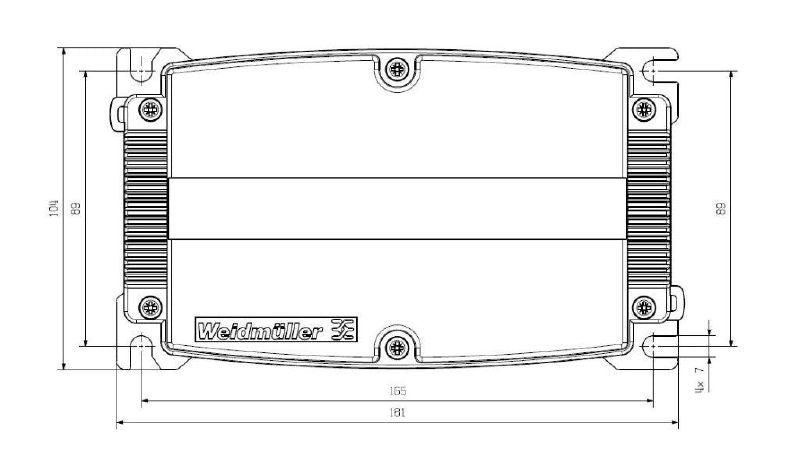

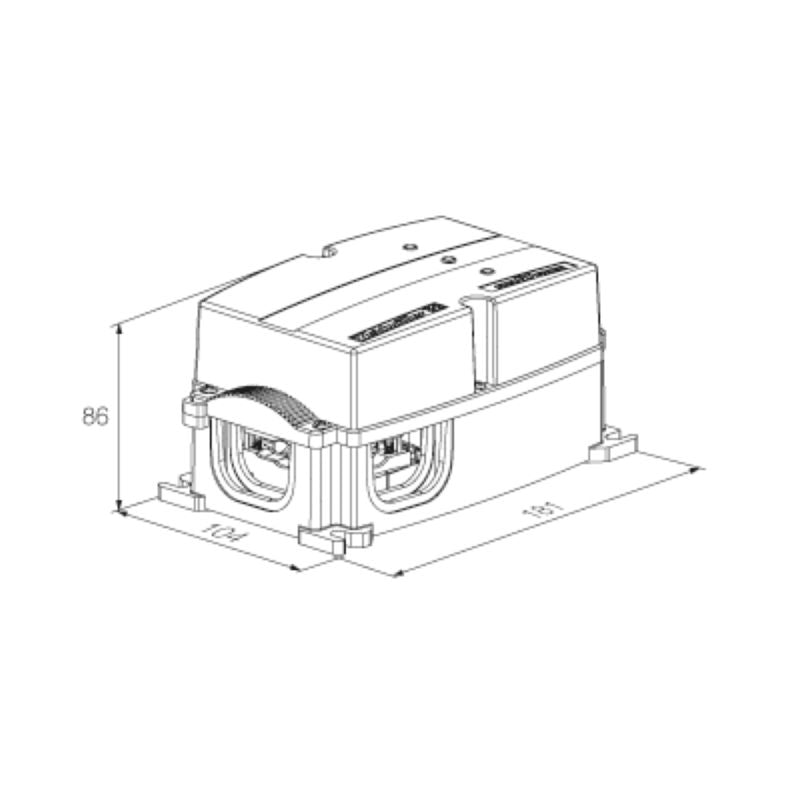

| Depth (mm) | 86 |
| Height (mm) | 181 |
| Width (mm) | 104 |
| Operating temperature | -40 °C...55 °C |
| Storage temperature | -40 °C...85 °C |
| Protection degree | IP65 |
| Voltage type | 3-phase AC |
| Number of poles | 5 |
| Rated current (3 loaded poles) | 41 A |
| Rated current (4 loaded poles) | 25 A |
| Rated voltage | 800 V |
| Rated impulse withstand voltage | 8 kV |
| Net weight (g) | 707 |
