Description:

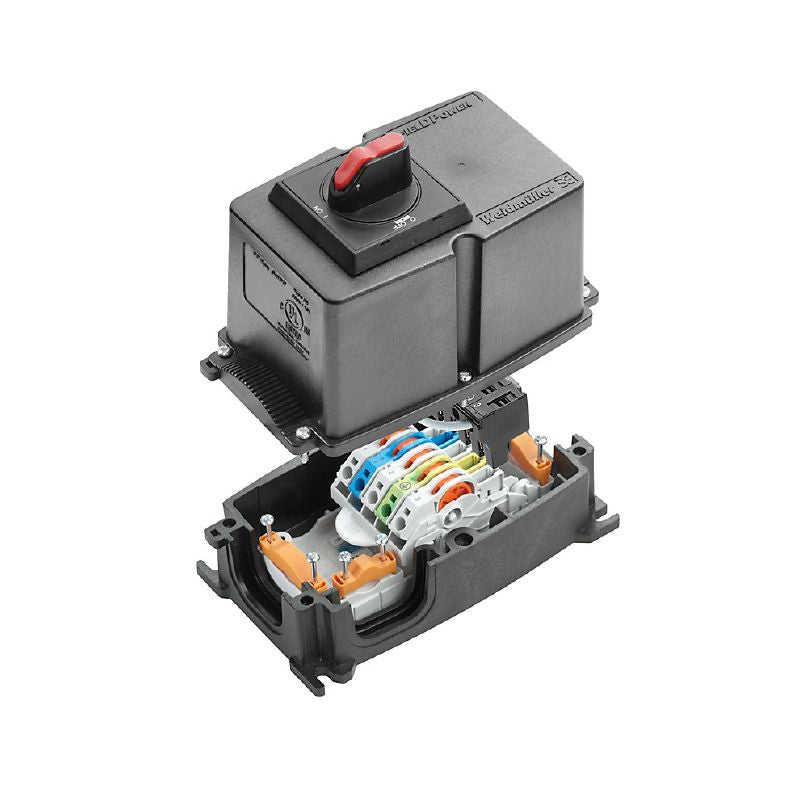

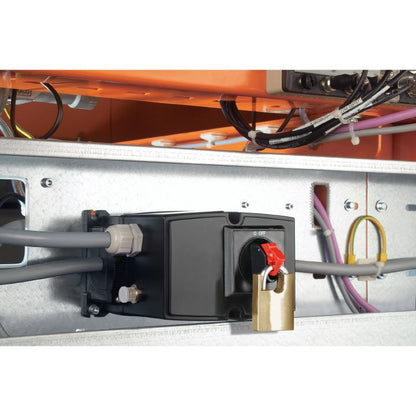

Experience efficient power management with the FieldPower power distribution box, specifically engineered for 3-phase AC power applications With a robust sealed design offering an IP65 rating when closed, this distribution box is crafted from glass-fiber reinforced polycarbonate for exceptional durability It features an insulation displacement connection (IDC) system and comes equipped with a maintenance switch for easy operational control.
Compliant with necessary regulations, this unit also boasts cULus certification for added peace of mind.
Features and Benefits:
•Constructed from durable glass-fiber reinforced polycarbonate.

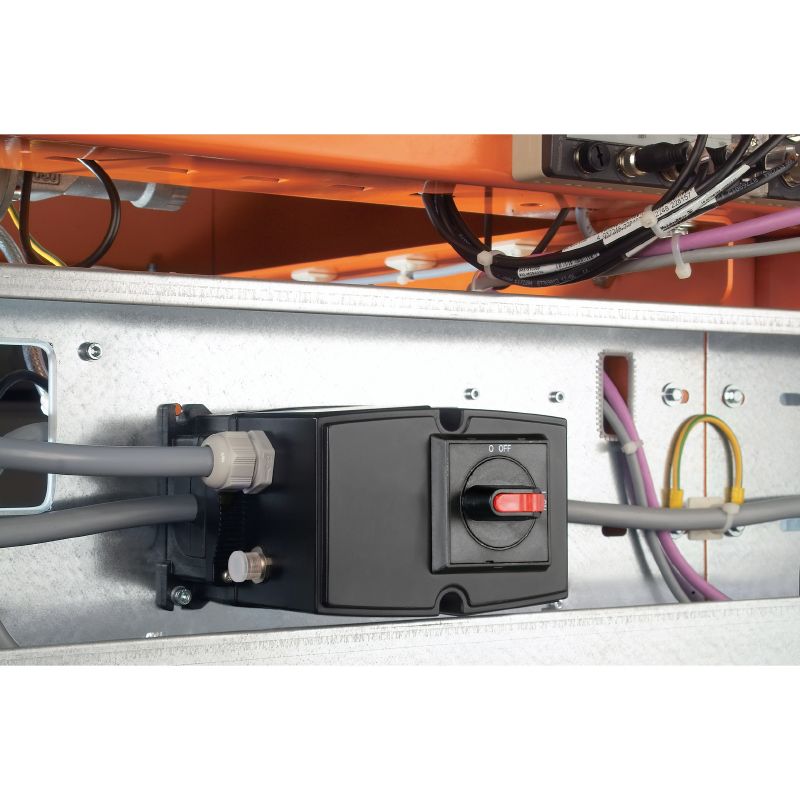

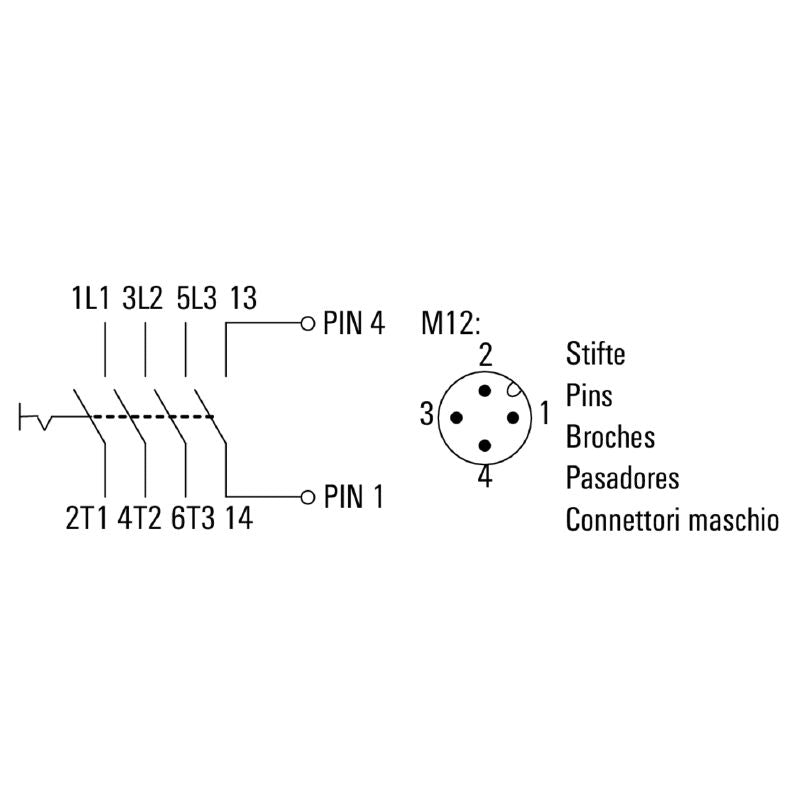

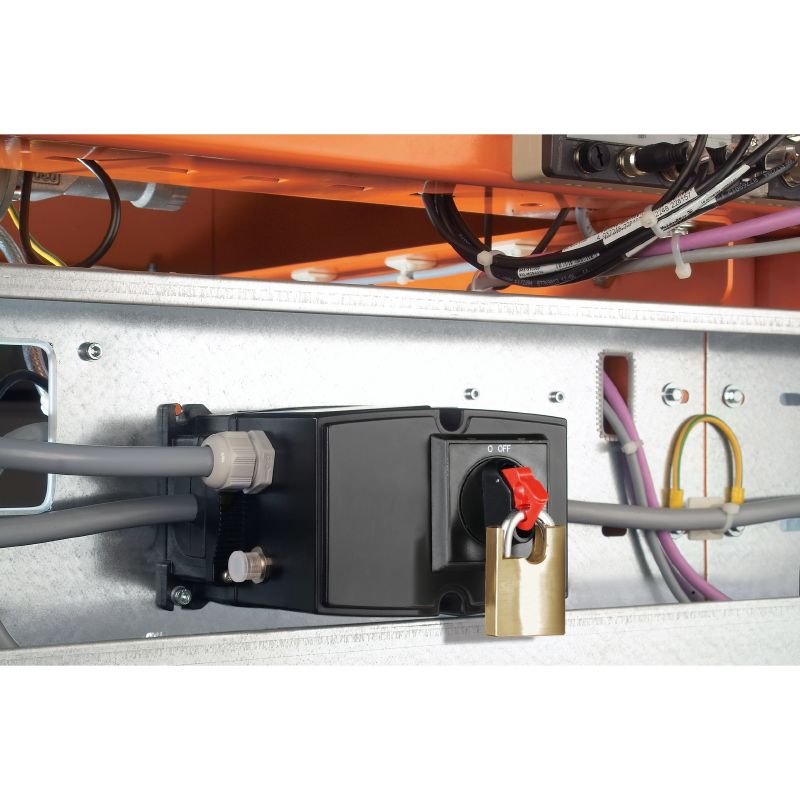

•Features a maintenance switch for user convenience.
•Compliant with RoHS standards with specific exemptions.
•Capable of withstanding extreme temperatures from -40 °C to 55 °C.
•Allows for various wire connection methods including PUSH IN and IDC.
Specifications:

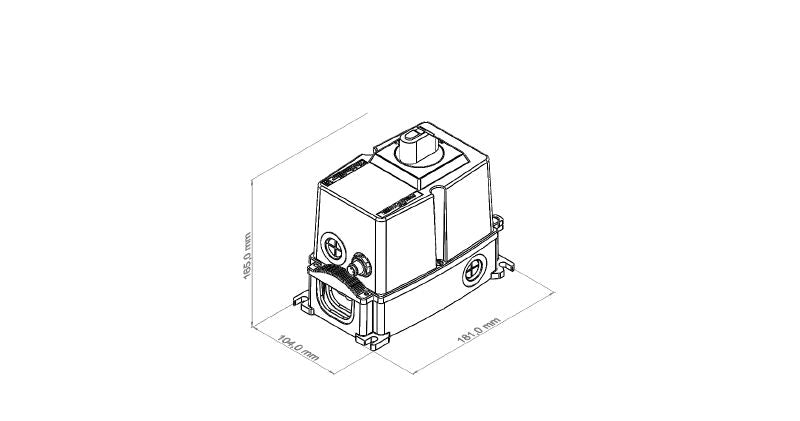

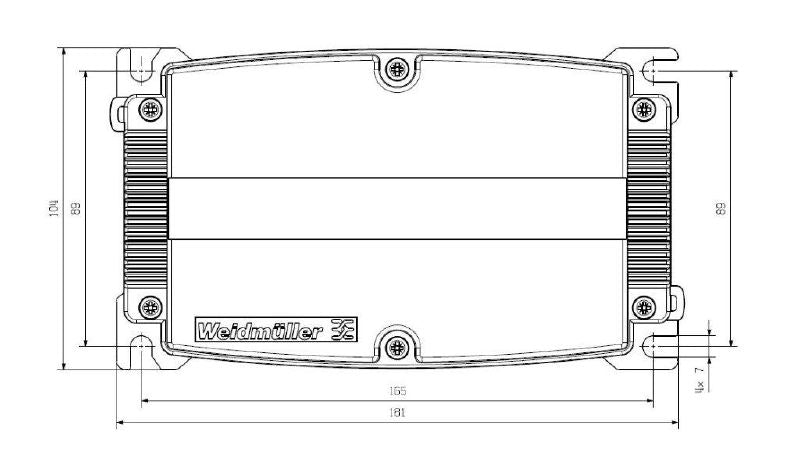

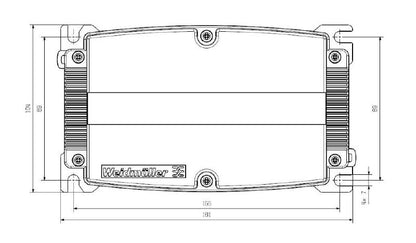

| Depth | 165 mm |
| Height | 181 mm |
| Width | 104 mm |
| Net weight | 1,096 g |
| Protection degree | IP65 |
| Insulating material | Polycarbonate |
| Enclosure material | Glass-fibre reinforced polycarbonate |
| Rated current (3 loaded poles) | 41 A |
| Rated voltage | 800 V |
| Number of poles | 5 |
| Conductor connection cross-section, solid, max. | 6 mm² |
| Operating temperature | -40 °C...45 °C |
| Storage temperature | -40 °C...55 °C |
