Description:

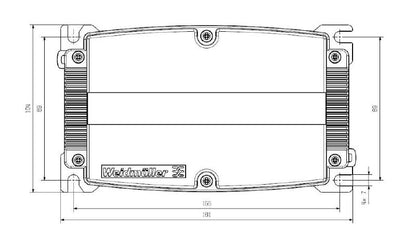

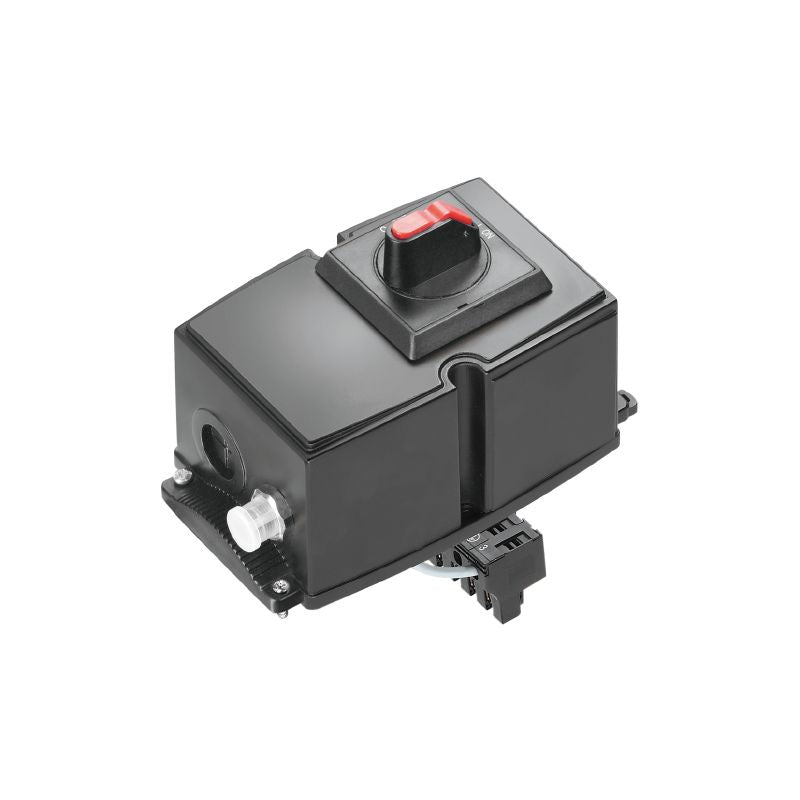

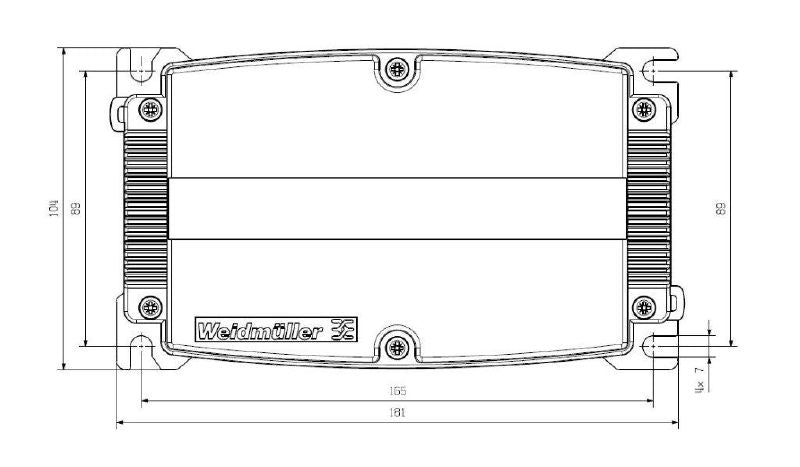

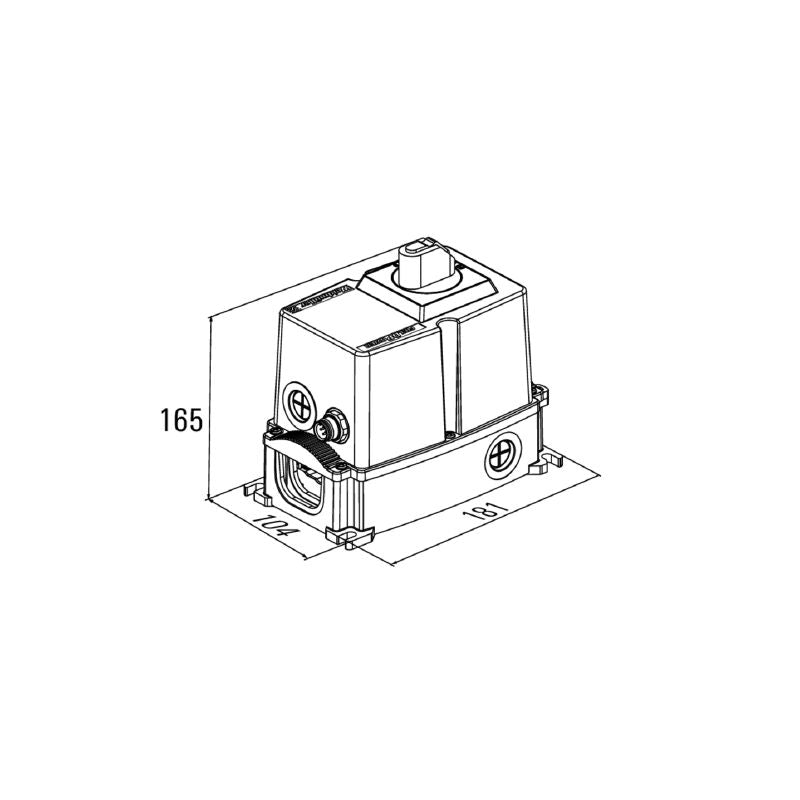

Introducing the BG GHDE HO SA UL PT6, a versatile FieldPower enclosure perfect for a range of applications Made from robust glass-fibre reinforced polycarbonate, this enclosure offers IP65 protection, making it ideal for challenging environments With dimensions of 181 mm in height, 104 mm in width, and 122 mm in depth, it comes fully assembled and ready for use Additionally, it features a convenient maintenance switch for enhanced functionality.
Features and Benefits:
•Black color for versatile integration.
•Constructed from glass-fibre reinforced polycarbonate for enhanced durability.
•Includes lid screws for easy installation.
•Complies with RoHS regulations.
•Utility and industrial settings requiring robust enclosures.
Specifications:
| Operating temperature | -40 °C to 45 °C |
| Storage temperature | -40 °C to 55 °C |
| Depth | 122 mm |
| Height | 181 mm |
| Width | 104 mm |
| Protection degree | IP65 |
| UL 94 flammability rating | 5VA |

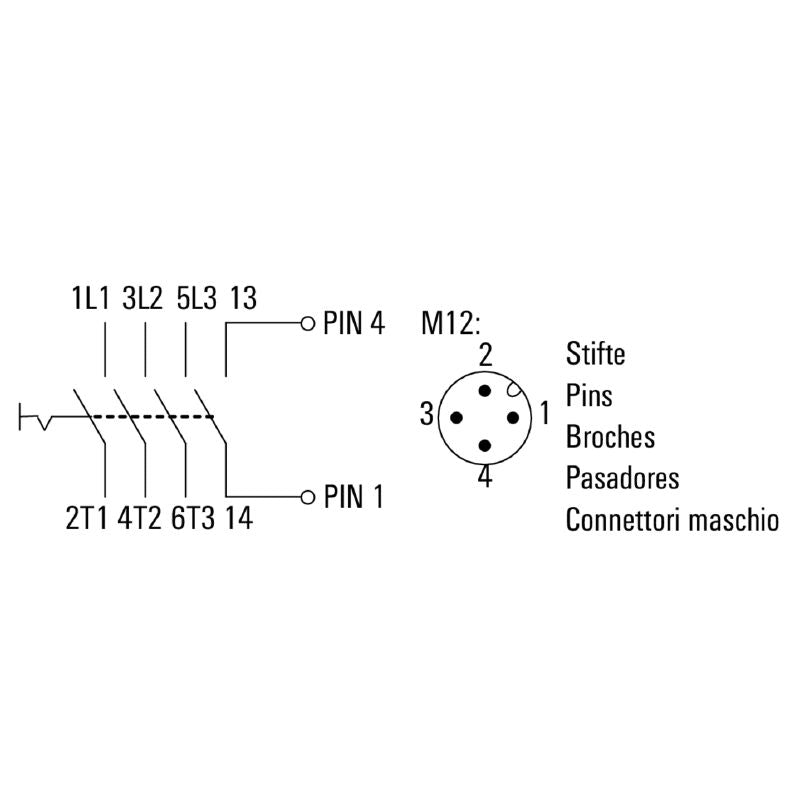

| Function | Maintenance switch |
| Insulating material | GF 10 |
| Power rating AC-23A | 7.5 kW |
| Rated current AC-23A | 16 A |
| Clamping range, plug, min. | 0.75 mm² |
| Clamping range, plug, max. | 10 mm² |
| Switch type | ABB OT16FT3 |
| Terminals - torque | 0.8 Nm |
| Torque for lid screws | 2 Nm |
| Order No. | 1113120000 |
