2647580000 - RoHS Compliant 630V Connector for 0.2-4mm² Wires (Pack of 36)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

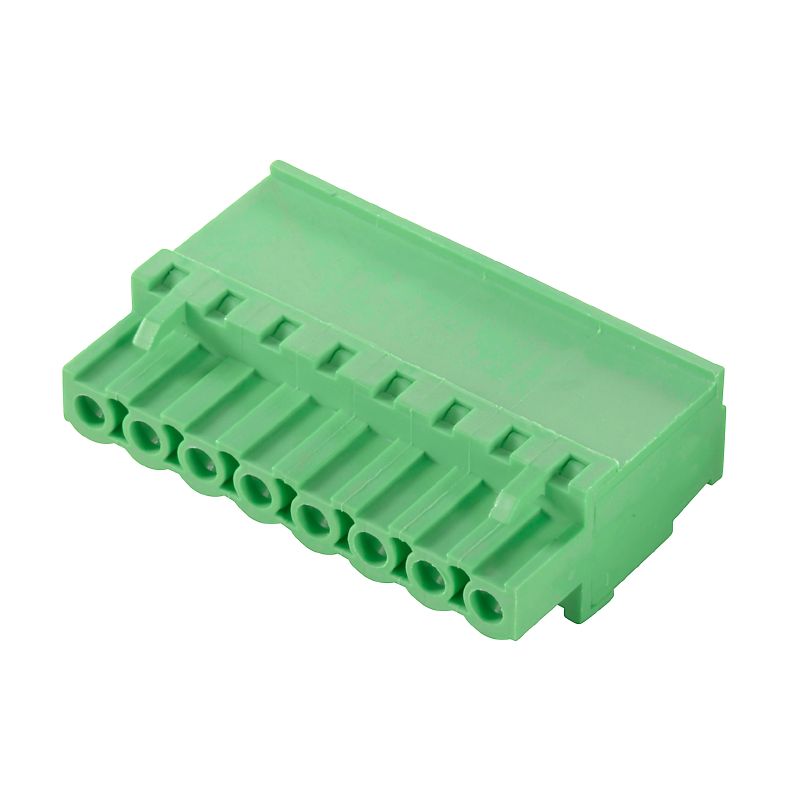

Introducing the CPS 508/12/270 SN GN BX, a product that meets RoHS compliance standards and boasts a UL certification (certificate number E60693) This device operates seamlessly with specifications of 630 V and 18 A, accommodating wire sizes from 02 to 4 mm² in accordance with IEC standards Additionally, it is rated for 300 V and 15 A when used with wire gauges from AWG 26 to AWG 14 under UL standards.

Features and Benefits:

•Compliant with RoHS exemption 6c.

•Clamping yoke connection method.

•Conductor outlet direction of 270°.

•Lightweight with a net weight of 24.6 g.

•Supports a variety of conductor sizes from 0.2 mm² to 4 mm².

•Durable with a UL 94 flammability rating of V-0.

•Plugging cycles rated at 25 times.

•Intended for use in field connections where a reliable electrical connection is needed.

Specifications:
