2647500000 - 5.08mm 4-Pole Connector with Clamping Yoke, Pale Green (Pack of 108)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

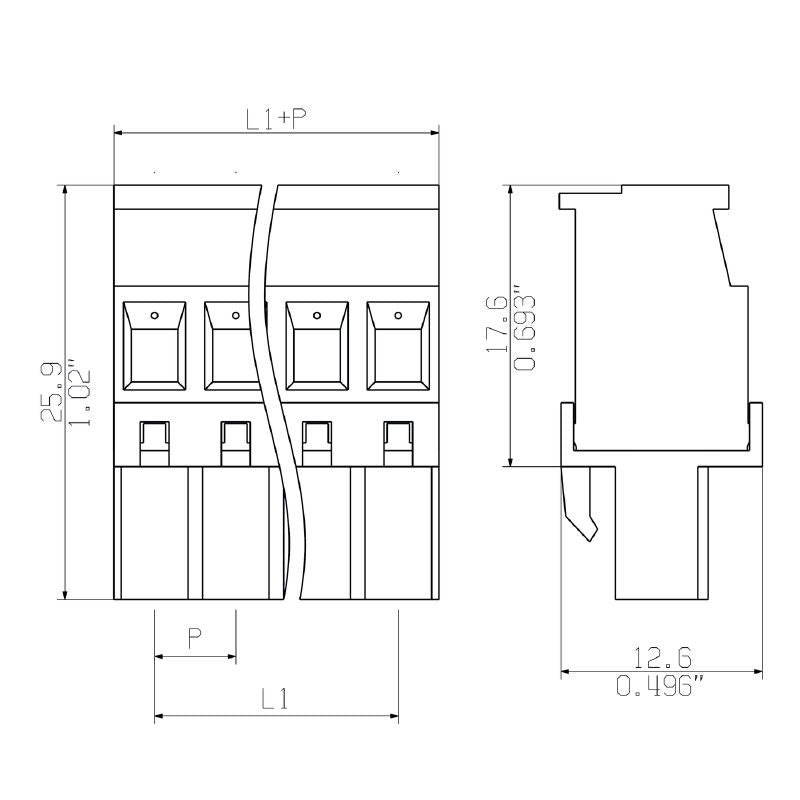

Introducing the CPS 508/04/270 SN GN BX connector, expertly crafted for field installation using a reliable wire clamping method With a compact pitch of 508 mm and a versatile 270° conductor outlet, this model features four poles aligned in a single row Its dimensions are precisely 1524 mm (06 inches) long, with a stripping length of 7 mm for easy installation This connector accommodates a wide clamping range, supporting wire sizes from 0.

2 mm² to 4 mm² and suitable for solid, stranded, and flexible conductors Meeting RoHS standards and UL certified, it ensures safety and compliance for various applications Weighing just 82 g and constructed from PA insulating material with a V-0 flammability rating, it demonstrates reliability and resilience Notably, the pale green color adheres to the RAL 6021 standard Designed for longevity, it operates effectively at maximum temperatures of 105 °C and can be stored safely between -40 °C and 70 °C, making it adaptable for diverse environments.

Features and Benefits:

•Compliant with RoHS and UL standards.

•Field connection design for ease of use.

•Clamping yoke connection method.

•Low weight of 8.2 g.

Specifications:
