2647320000 - 5.08mm 9-Pole Connection Terminal for Field Applications (Pack of 78)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

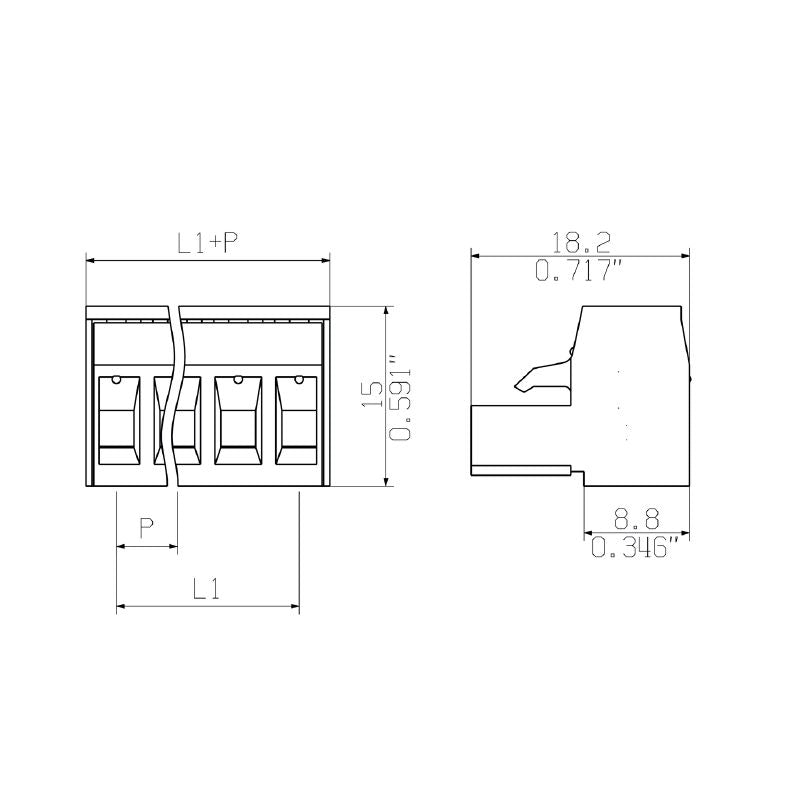

Introducing the CPS 508/09/180 SN GN BX, an efficient solution for field connections featuring a clamping yoke connection method This component boasts a compact pitch of 508 mm and is equipped with nine poles It accommodates a variety of wire sizes from 02 mm² to 25 mm², equivalent to AWG 30 to AWG 12 The product supports a maximum rated current of 22 A, with a rated voltage of 630 V for IEC compliance and 300 V for UL standards.

Weighing in at just 1575 grams, it comes conveniently packaged in a box, making it easy to transport and store.

Features and Benefits:

•Compliant with RoHS and features exemption 6c.

•Clamping screw is M3 and screwdriver blade size is 0.6 x 3.5.

•Insulation resistance is 500 MΩ.

•UL 94 flammability rating is V-0.

•Can withstand a storage temperature range from -40°C to 70°C and an operating temperature up to 105°C.

Specifications:
