2647310000 - 5.08mm Pitch 8-Pole Field Terminal with 180° Outlet (Pack of 90)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

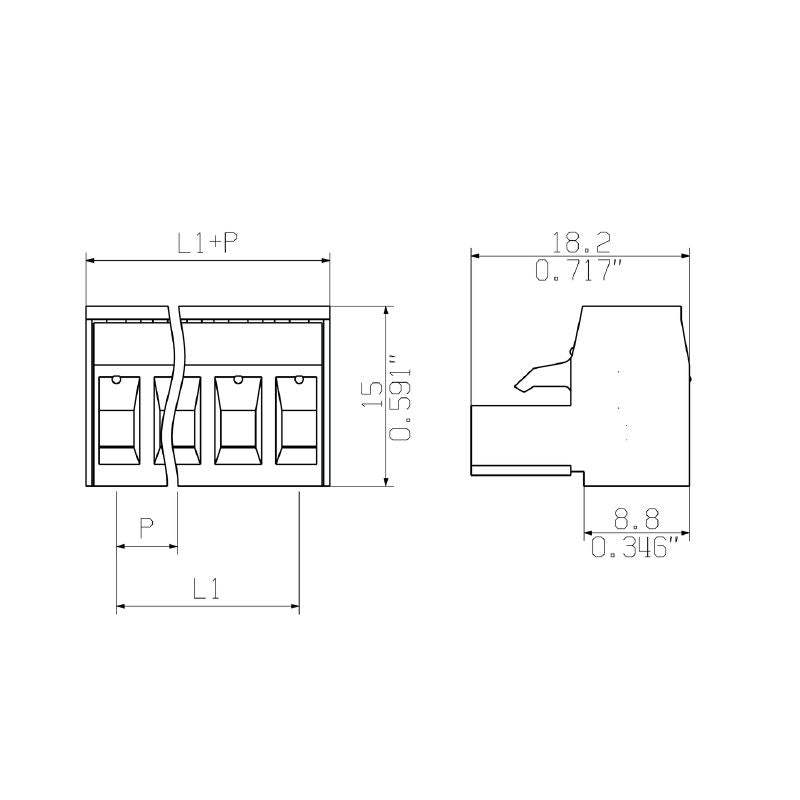

Introducing the CPS 508/08/180 SN GN BX field connection terminal, a reliable solution for your connectivity needs This terminal features a 508 mm pitch and accommodates 8 poles, ensuring efficient electrical connections With a conductor outlet angle of 180 degrees, it facilitates easy wiring Measuring 3556 mm in nominal length and designed for a stripping length of 7 mm, it supports a clamping range for wires from 0.

2 to 25 mm² (AWG 30 to AWG 12) Weighing in at 12281 g, this product seamlessly integrates with OMNIMATE basic items and complies with various environmental standards for added peace of mind.

Features and Benefits:

•Compliant with RoHS exemptions.

•Clamping yoke connection method.

•Insulating material made of PA.

•Rated for 22 A at 630 V according to IEC.

•Maximum pulling and plugging forces of 6 N and 9 N respectively.

•Single row design with a minimum stripping length of 7 mm.

Specifications:
