2646710000 - 5mm Pitch Connector with 18 Poles, 630V Rating (Pack of 30)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

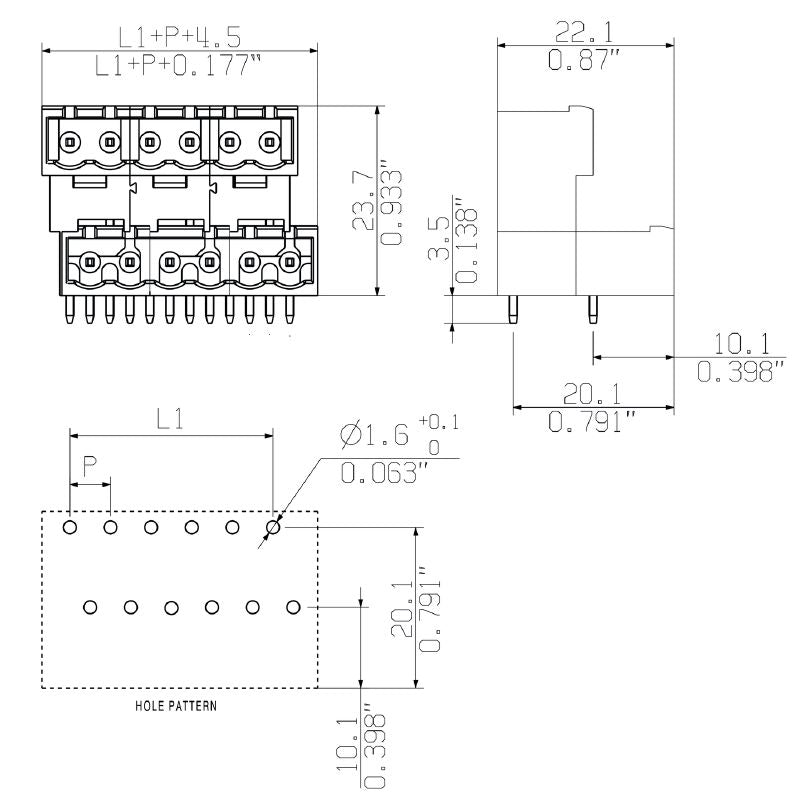

Introducing the CHDV connector series, designed for seamless board connections with a 5 mm pitch This robust connector features 18 positions arranged in two rows and includes solder pins that measure 35 mm in length with a diameter of 16 mm for easy eyelet hole integration With a voltage rating of 630 V and a current rating of 10 A, it ensures reliable performance in various applications The connector flaunts a subtle pale green color conforming to RAL 6021 specifications and is crafted from PA GF, a high-quality insulating material that falls under material group I.

Its UL 94 flammability rating of V-0, coupled with a temperature tolerance spanning from -40 °C to 105 °C, makes it ideal for diverse environmental conditions.

Features and Benefits:

•Compliant with RoHS without exemptions.

•Connection type is THT solder connection.

•Suitable for use with OMNIMATE basic products.

•Constructed from Cu-alloy with a tinned contact surface.

Specifications:
