2645680000 - 5mm Pitch THT Connector, 4 Poles, 15A, 630V (Pack of 360)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

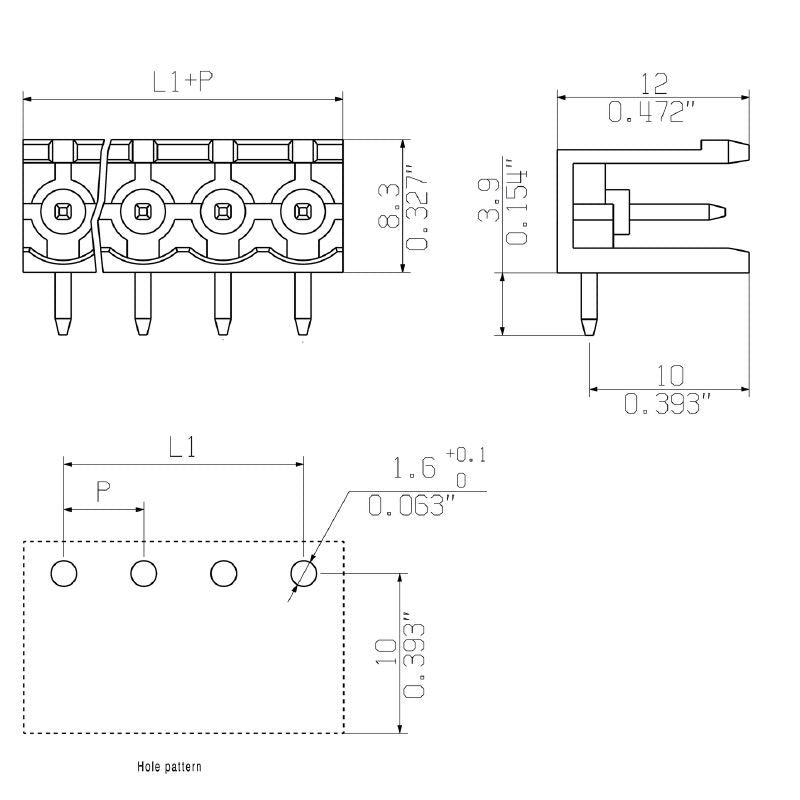

Discover the versatility of this reliable connector, which utilizes THT soldering for secure board connection with a pitch of 5 mm Capable of managing a voltage up to 630 V and a current rating of 15 A, it features four poles, each equipped with a single solder pin The pins measure 39 mm in length and have a compact dimension of 10 x 10 mm, complemented by a solder eyelet hole with a diameter of 16 mm.

This component can function effectively in temperatures reaching 105 °C and can be stored safely between -40 °C and 70 °C Made from durable PA GF insulating material, it adheres to RoHS regulations and holds a UL file number for certification The connector is presented in a subtle pale green hue, making it suitable for long-term storage in controlled humidity and temperature environments.

Features and Benefits:

•RoHS compliant without exemptions.

•Material suitable for high thermal stability.

•UL recognized under file number E60693.

•Designed for THT solder connections.

•Ensures operational reliability at high temperatures.

•Used in standard board connections.

•Compatible with OMNIMATE basic products.

Specifications:
