2645580000 - 180° Connector, 19 Poles, 5mm Pitch, RoHS Compliant (Pack of 65)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

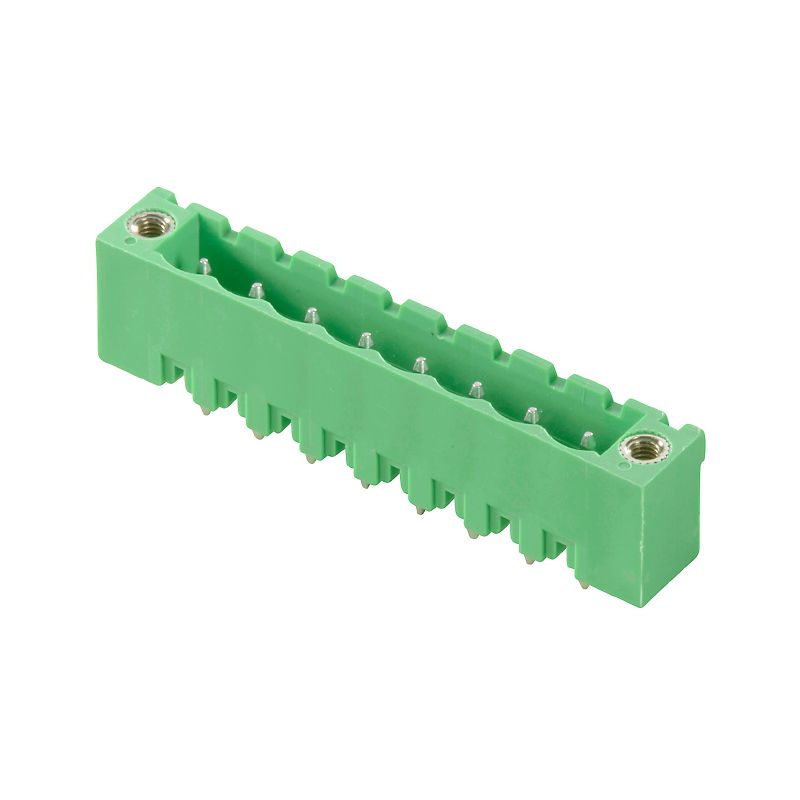

Introducing the CH 500/19/180F 39SN GN BX connector, expertly crafted for reliable board connections This connector is RoHS compliant and has been certified under UL file number E60693 Weighing in at just 764 grams and packaged securely in a box, it's both lightweight and practical Engineered with a 180° elbow design, it features a total of 19 poles, each equipped with a single solder pin measuring 3.

9 mm in length The pins utilize Through-Hole Technology (THT) with a 5 mm pitch, ensuring a strong connection Made from high-quality PA GF insulating material, this connector boasts a pale green hue reminiscent of RAL 6021, making it both functional and visually appealing.

Features and Benefits:

•Insulating material group I.

•UL 94 flammability rating of V-0.

•Tinned contact surface with a matt tinning type.

•Suitable for storage temperatures from -40 °C to 70 °C.

•Operating temperature maximum of 105 °C.

Specifications:
