2645460000 - 7-Pole RoHS Certified Connector with 180-Degree Elbow, 15A (Pack of 150)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

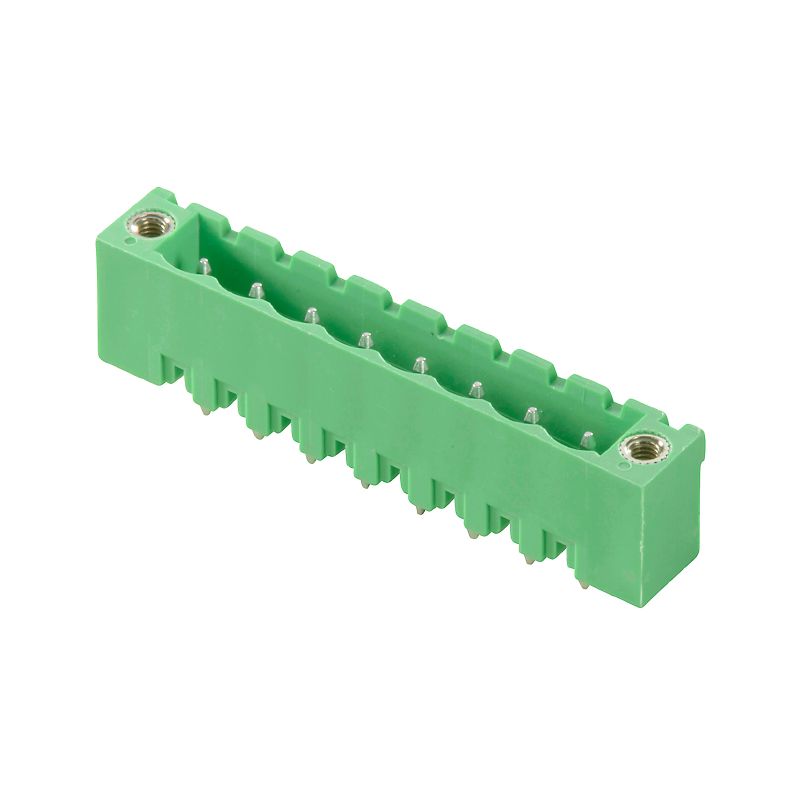

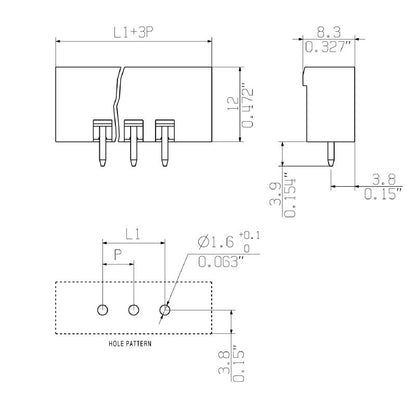

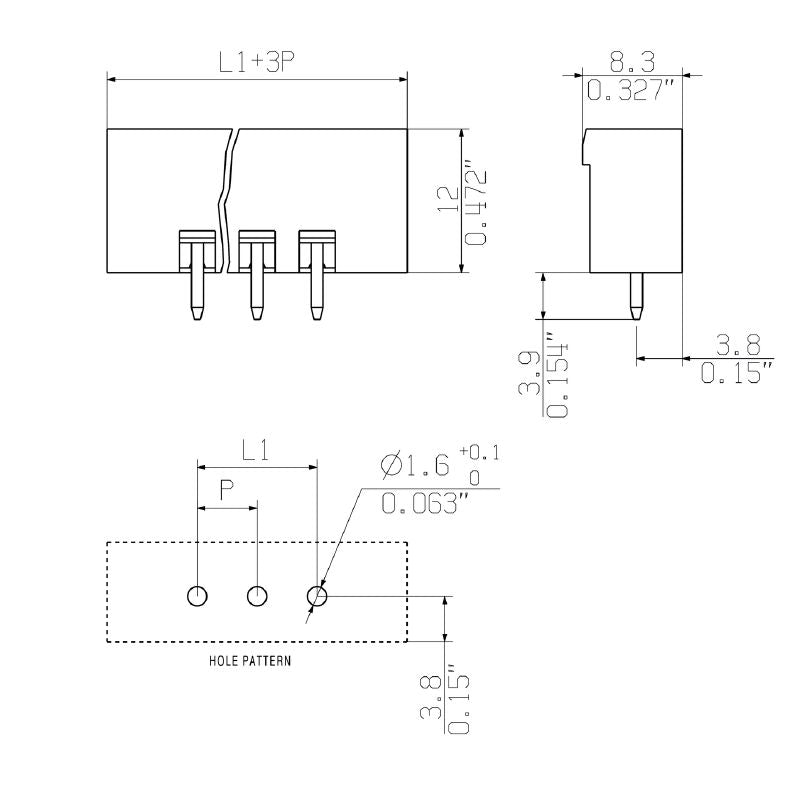

Introducing the CH 500/07/180F 39SN GN BX connector, a RoHS-compliant component with UL certification (file number E60693) This connector is specifically designed for board connections and features a unique 180-degree outgoing elbow configuration It comes with seven poles, each equipped with a solder pin measuring 39 mm in length and featuring a square profile of 10 x 10 mm Capable of handling a robust rated current of 15 A, it operates effectively at voltage ratings of 630 V and 300 V.

With adherence to strict safety and environmental standards, this connector is versatile for various applications.

Features and Benefits:

•Compliant with RoHS and cURus standards.

•Environmental Product Compliance with exemptions.

•Low flammability rating with UL 94 V-0.

•Designed for THT solder connection.

Specifications:
