2645440000 - 5-Pole THT Connector, 5mm Pin Pitch, 20mm Length (Pack of 200)

2645440000 - 5-Pole THT Connector, 5mm Pin Pitch, 20mm Length (Pack of 200)

SKU: 2645440000 Download PDF

Variant:
  • 2645440000 - 5-Pole THT Connector, 5mm Pin Pitch, 20mm Length (Pack of 200)
Now $373.73
BEFORE   $0.00 Now $373.73
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

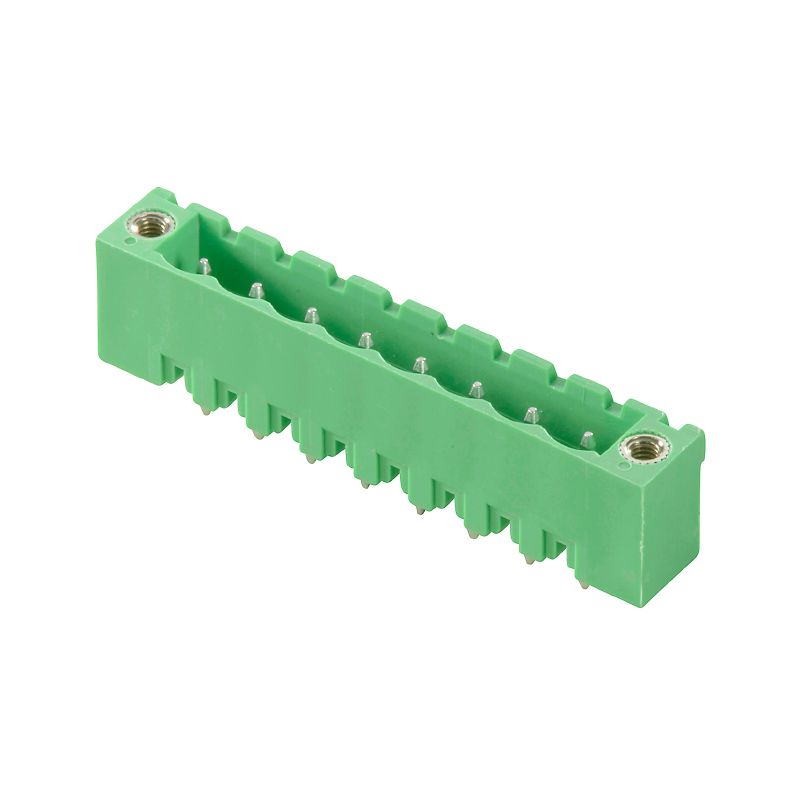

Introducing the CH 500/05/180F 39SN GN BX connection type, expertly crafted for board connections with a Through-Hole Technology (THT) solder connection This model features a 5-pole configuration, with each pole equipped with a solder pin that measures 39 mm in length The pins boast dimensions of 10 mm x 10 mm and include a hole diameter of 16 mm With an overall length of 20 mm, this component is designed for seamless integration.

Additionally, it meets RoHS compliance standards and is part of the renowned OMNIMATE Signal series, ensuring high quality and reliability in your electronic projects.

Features and Benefits:

    •Insulating material is PA GF.

    •Color is pale green with a similarity to RAL 6021.

    •UL 94 flammability rating of V-0.

    •Contact base and contact materials are both Cu-alloy.

    •Contact surface is tinned with a matte finish.

    •Storage temperature ranges from -40 °C to 70 °C.

    •Operating temperature maximum is 105 °C.

    •Rated current is 15 A.

    •Rated voltage for different pollution degrees range from 250 V to 630 V.

    •Rated impulse voltage for various classifications is 4 kV.

    •Compatible only with OMNIMATE basic products.

Specifications:

 IEC 630 V / 15 A
 UL 300 V / 15 A
 Pitch in mm (P) 5 mm
 Outgoing elbow 180°
 Number of solder pins per pole 1
 Solder pin dimensions 1.0 x 1.0 mm
 Solder eyelet hole diameter (D) 1.6 mm

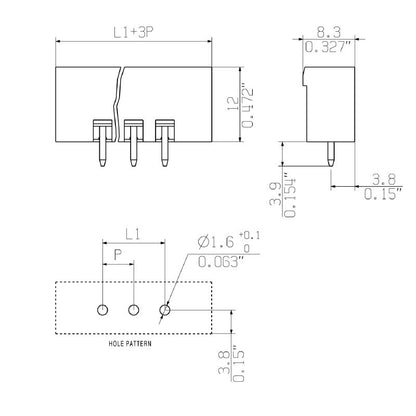

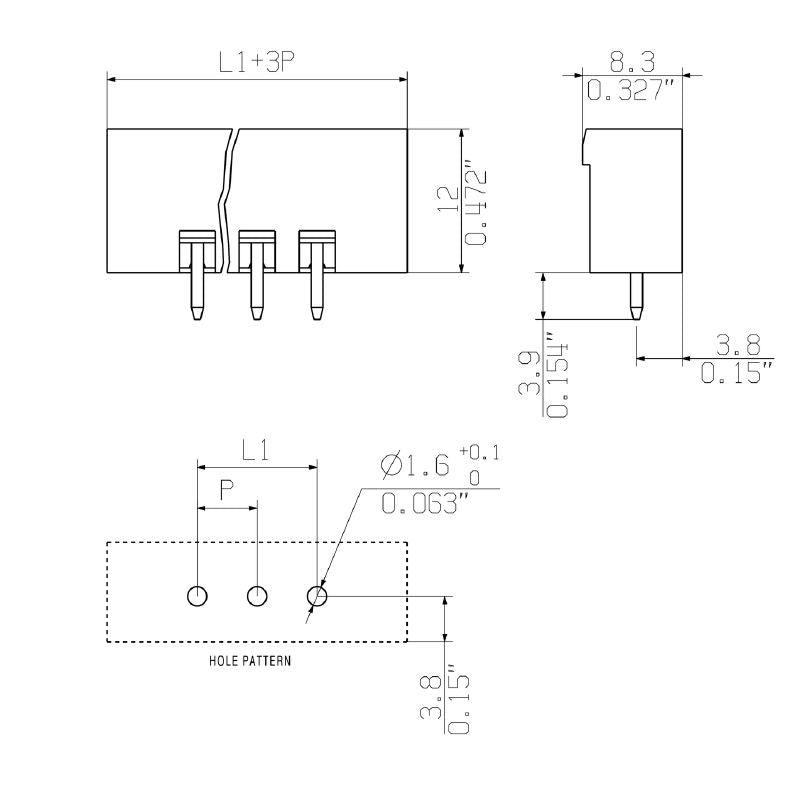

 L1 in mm 20 mm
 Number of rows 1
 Rated voltage for surge voltage class / pollution degree II/2 630 V
 Rated voltage for surge voltage class / pollution degree III/2 320 V
 Rated voltage for surge voltage class / pollution degree III/3 250 V
 Rated data acc. to CSA {'Rated voltage (Use group B / CSA)': '300 V', 'Rated current (Use group B / CSA)': '15 A'}
