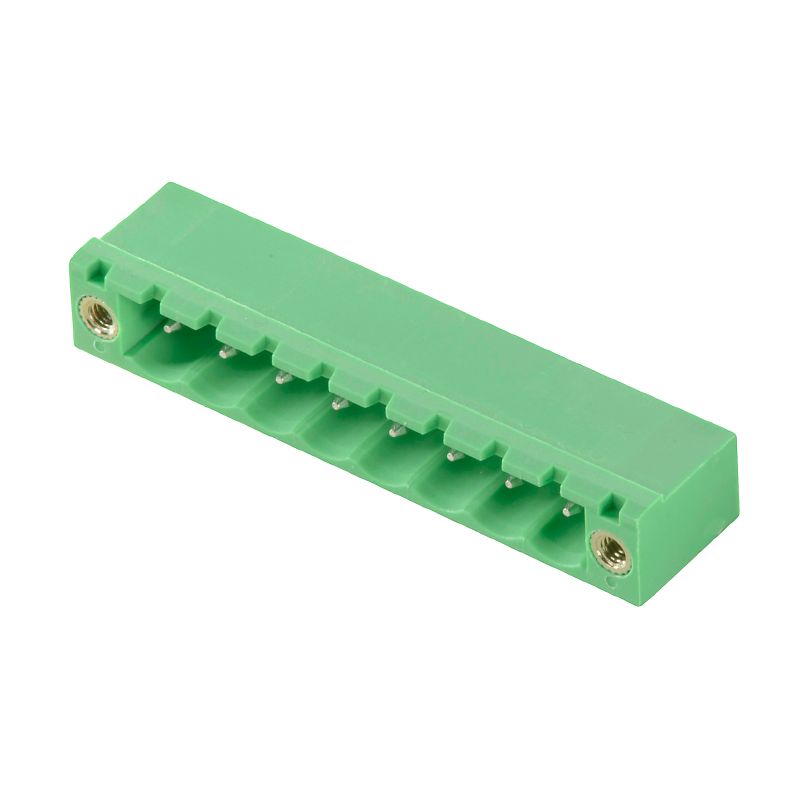

2645180000 - OMNIMATE Signal Connector, 90° Elbow, 15A, RoHS Compliant (Pack of 360)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the 'CH 500/02/90F 39SN GN BX', a reliable component boasting a standard UL file number and full compliance with RoHS standards This unit is capable of handling voltage levels up to 630 V and current ratings of 15 A, according to IEC specifications Each piece is conveniently packaged in a box, with a lightweight design of just 152 grams As part of the OMNIMATE Signal series, it features a through-hole (THT) solder connection with a 90° outgoing elbow and a defined pin configuration, making it a versatile choice for your connectivity needs.

Features and Benefits:

•Specifically designed for Board connection with mounting onto the PCB.

•Features a pitch measurement of 5 mm.

•Constructed with insulating material PA GF.

•UL 94 flammability rating of V-0.

•Compatible with OMNIMATE basic products.

Specifications:
