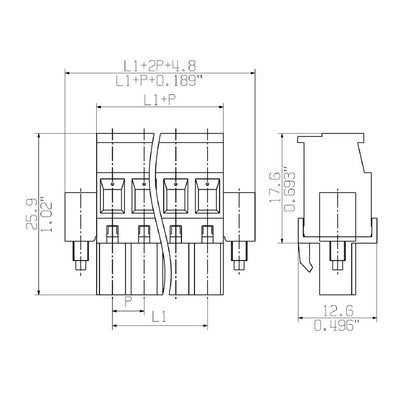

2645130000 - 5mm Pitch 20-Pole UL Certified Connector for 0.2-4mm² Wires (Pack of 18)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Ensure optimal performance with this compliant connector featuring RoHS certification and a UL mark Capable of operating at a voltage of 630 V and a current rating of 18 A, it accepts wire sizes from 02 to 4 mm² In line with UL guidelines, it supports a voltage of 300 V and current up to 15 A for wire gauges ranging from AWG 26 to AWG 14 Packaged securely in a box, this connector weighs 418 grams and belongs to the OMNIMATE Signal product series, tailored for reliable field connections through a clamping yoke method.

It boasts a pin pitch of 5 mm, accommodating 20 poles in a single row Built for durability, it can endure a tightening torque ranging from 05 Nm to 055 Nm with M3 clamping screws included Designed for long-term use, this connector offers a lifespan of up to 25 plugging cycles and can handle pulling and plugging forces of 6 N and 9 N, respectively.

Features and Benefits:

•RoHS compliant with exemption.

•Insulating material is made of PA.

•Insulation resistance rated at 500 MΩ.

•Flammability rating of UL 94 is V-0.

•Contact materials are copper alloy with a tinned surface.

•Suitable for use with OMNIMATE basic products.

•Designed for various connection configurations in electrical systems.

Specifications:
