2644450000 - OMNIMATE 21-Pole Connector, 100mm, 630V, 18A Rating (Pack of 21)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

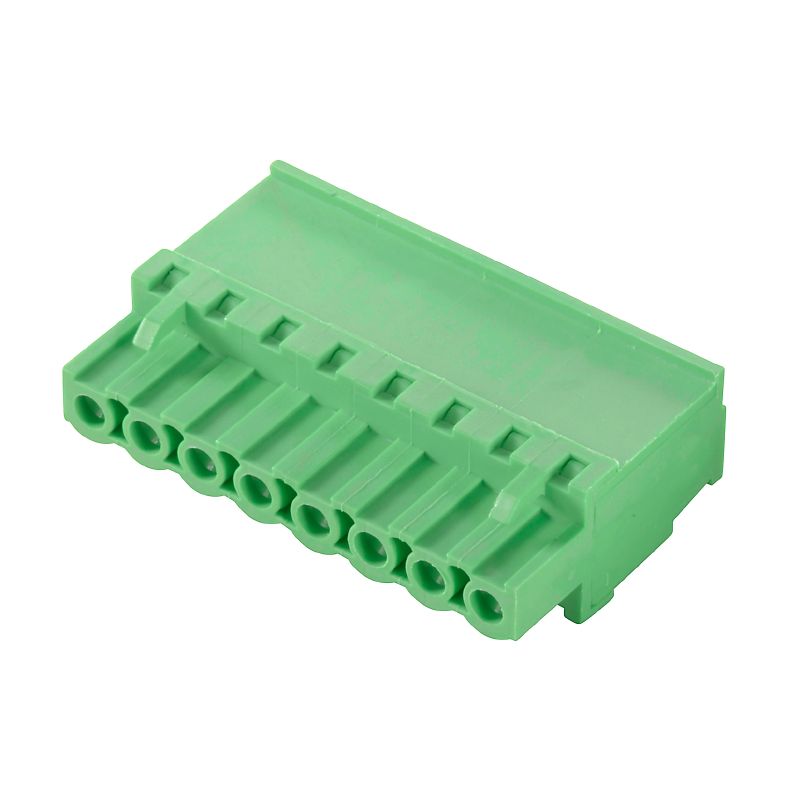

Introducing the CPS 500/21/270 SN GN BX, a reliable and compliance-certified product that meets both RoHS and UL standards It operates efficiently at 630 V and 18 A, accommodating a wire range from 02 to 4 mm², while being rated for 300 V and 15 A under UL guidelines This component comes packaged in a box with a net weight of 4305 grams and belongs to the OMNIMATE Signal series Engineered for versatility, it utilizes field clamping connections with a 5 mm pitch and features 21 poles.

Its standard length measures 100 mm (or 394 inches), making it convenient for various applications The product also allows for stripping lengths of 7 mm and boasts a minimum tightening torque of 05 Nm, reaching up to a maximum of 055 Nm for secure connections Choose the CPS 500/21/270 SN GN BX for your connectivity needs!.

Features and Benefits:

•Designed for field connection with a robust clamping mechanism.

•Suitable for various wire sizes from 0.2 mm² to 4 mm².

•Supports a minimal stripping length of 7 mm.

•High insulation resistance of 500 MΩ.

•Adaptable to both solid and stranded conductors.

Specifications:
