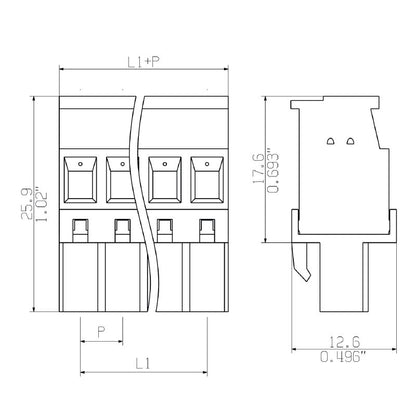

2644380000 - 14 Pole Clamping Terminal for 0.2-4 mm² Connections (Pack of 30)

Description:

Introducing a premium clamping connection terminal ideal for effective field connections This versatile terminal accommodates wire sizes ranging from 02 to 4 mm², supporting a maximum voltage of 630 V and a current rating of 18 A, in line with IEC standards For compliance with UL, it operates efficiently at 300 V and 15 A for wire gauges AWG 26 to AWG 14 Each packaging unit includes 30 terminals, designed with a 5 mm pitch and a single row featuring 14 poles.

The M3 clamping screw ensures a secure fit, and the terminal's construction from a copper alloy, with a pale green insulating material, meets RoHS requirements Rigorously tested, this terminal guarantees a minimum of 25 plugging cycles, withstanding up to 9 N of plugging force and 6 N of pulling force It operates effectively within a temperature range of -40 °C to 70 °C, with a maximum operational temperature of 105 °C, making it reliable for various applications.

Features and Benefits:

•RoHS compliant with exemption.

•Field connection type.

•Clamping yoke connection method.

•Designed for wire sizes from 0.2 to 4 mm².

•Colour is pale green.

•UL 94 flammability rating of V-0.

•Minimum tightening torque of 0.5 Nm.
