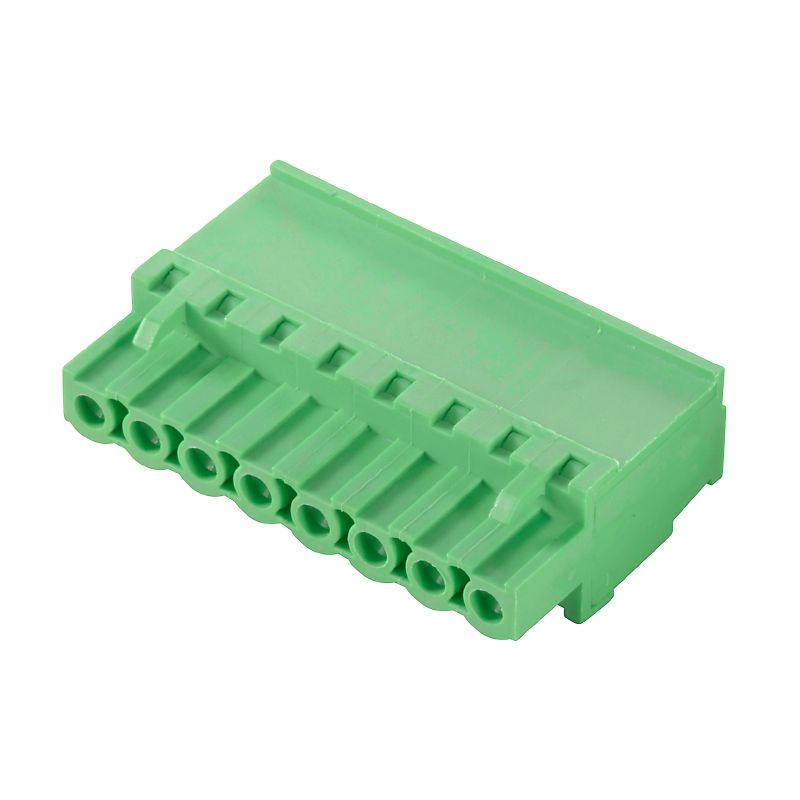

2644340000 - 10-Pole 5mm Pitch Connector, RoHS Certified, Pale Green (Pack of 45)

Description:

Introducing the CPS 500/10/270 SN GN BX, a reliable solution for electrical connections This component features a field connection type and utilizes a clamping yoke wiring method, ensuring secure and stable connectivity Weighing in at 205 grams, it boasts 10 poles arranged with a 5 mm pitch Designed with safety and compliance in mind, this connector meets RoHS standards and carries a UL certification.

It requires a stripping length of 7 mm and can be tightened within a torque range of 05 to 055 Nm For enhanced performance, it supports a maximum plugging force of up to 9 N and a pulling force of 6 N Crafted from durable PA insulating material, this component is finished in a subtle pale green hue With an operational temperature range of -40 °C to 105 °C, it is engineered to function effectively in various environments.

Perfect for a wide range of applications, the CPS 500/10/270 SN GN BX is a dependable choice for your electrical connection needs.

Features and Benefits:

•Compliant with RoHS regulations and has an exemption.

•Suitable for a wide range of wire cross-sections from AWG 26 to AWG 14.

•Manufactured with high-quality copper alloy for reliable contact.

•Retail packaging in boxes for easy handling.

•Designed for long-term storage under optimal conditions.

Specifications:
