2643830000 - Reliable Clamping Yoke Electrical Connector for 0.2-4 mm² Wire (Pack of 90)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

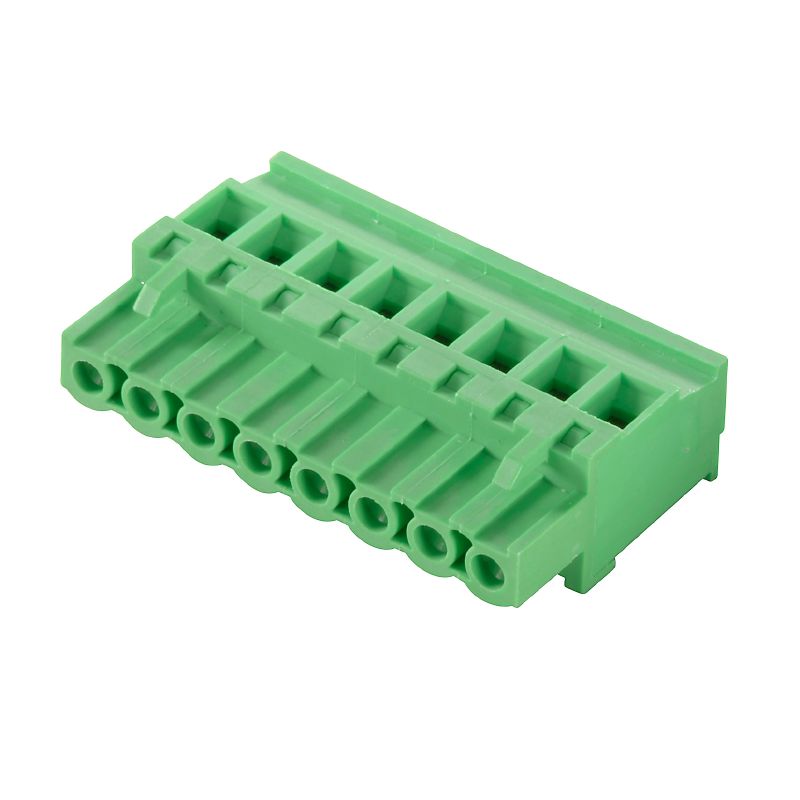

Introducing the CPS 500/05/90 SN GN BX, a reliable connection solution that adheres to key compliance standards, including RoHS and UL certifications Perfect for applications demanding trustworthy electrical connections, this product comes neatly packaged in a box and has a lightweight design at just 1025 grams The versatile connection method features a clamping yoke, making it ideal for field use It accommodates a variety of wire sizes, ranging from 0.

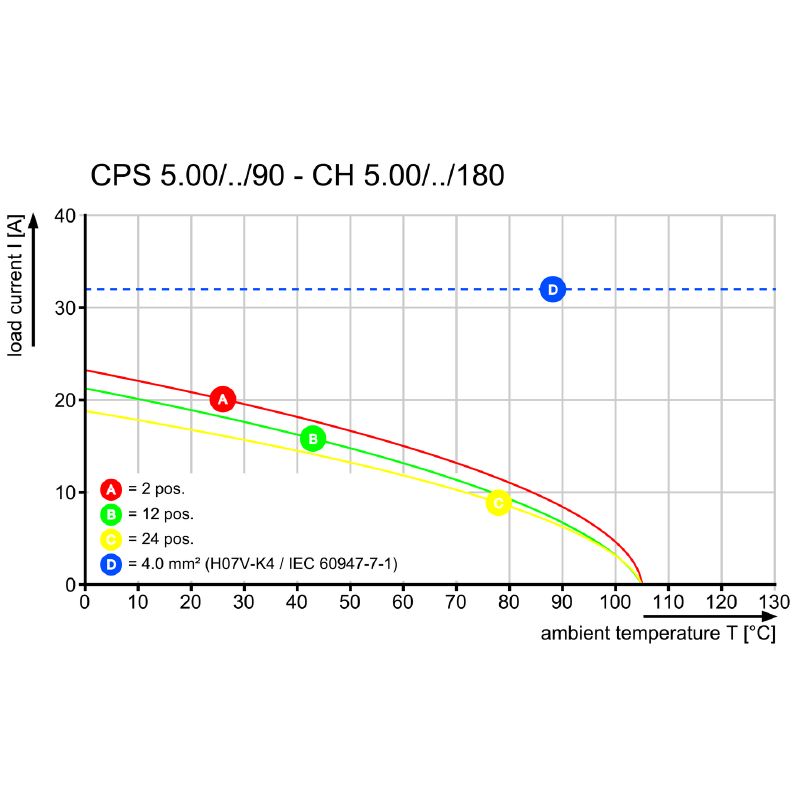

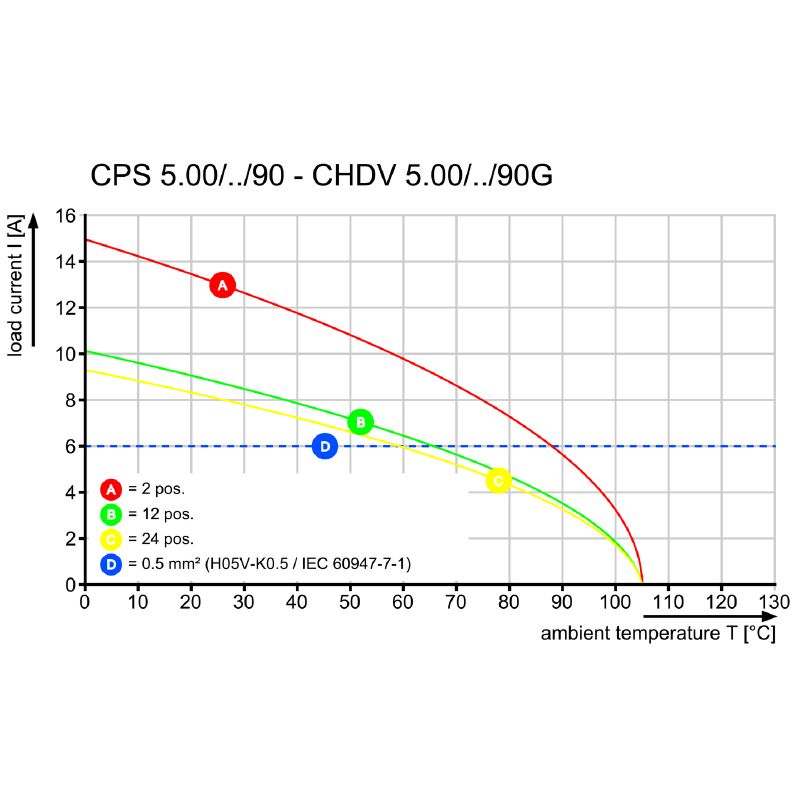

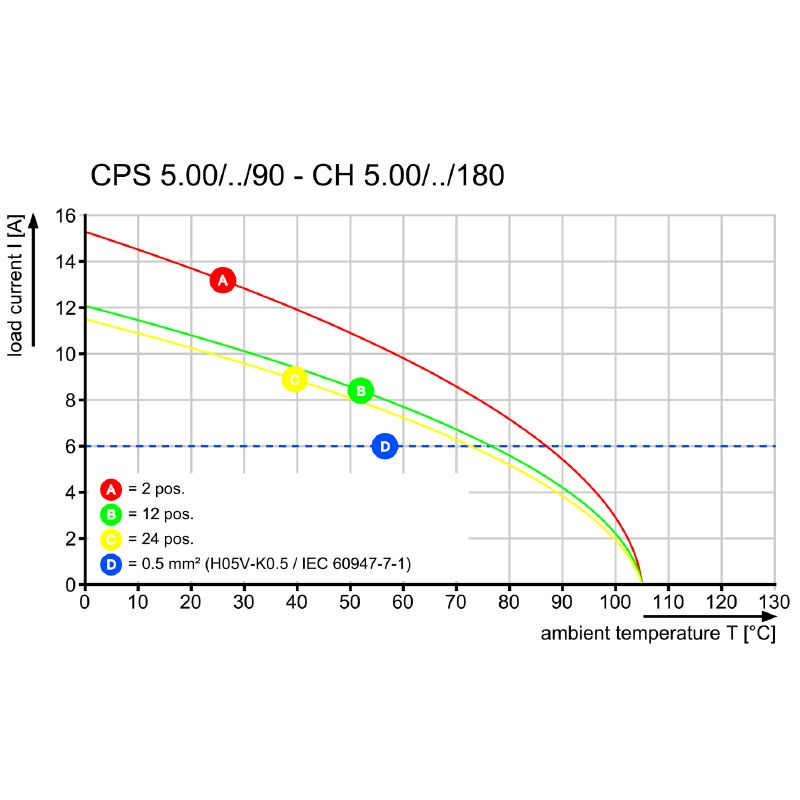

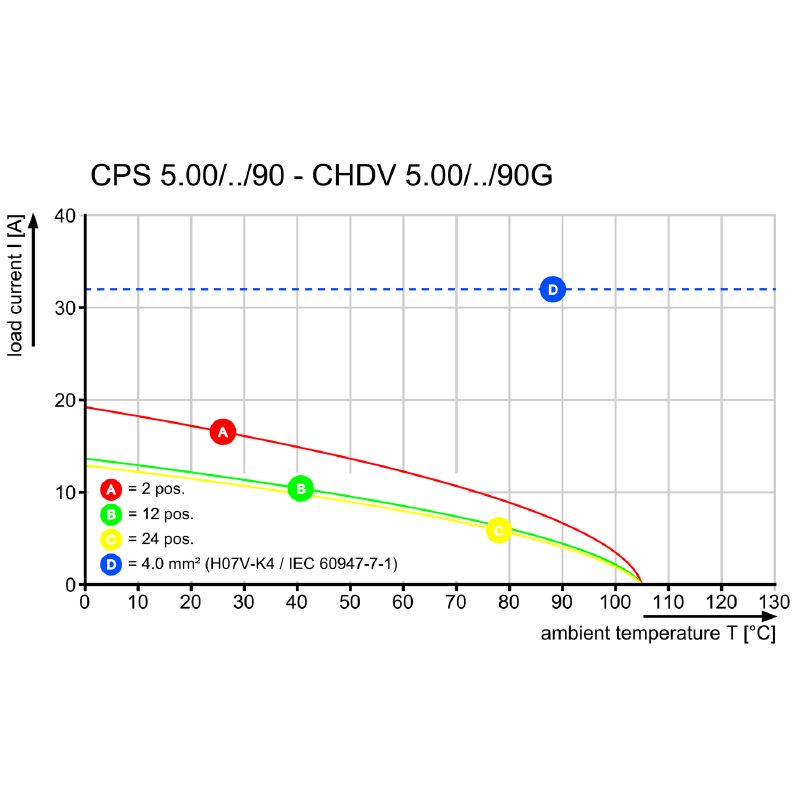

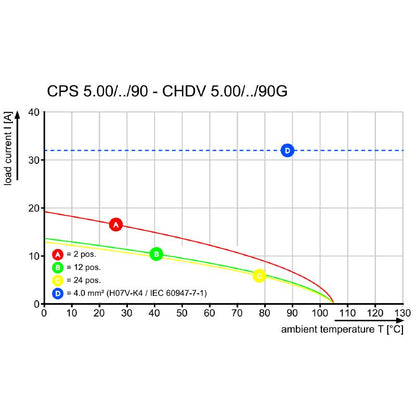

2 to 4 mm², or AWG 26 to AWG 14 With an operational temperature tolerance of -40 °C to 105 °C, this connection type is built to perform effectively in diverse environmental conditions.

Features and Benefits:

•Compliant with RoHS and UL standards.

•Suitable for field connection applications.

•Clamping yoke connection method.

•Single row with 5 poles.

•Lightweight at 10.25 grams.

•Field connection in various electrical systems.

Specifications:
