2643780000 - 3.81mm THT Solder Connector with 180° Elbow & 19 Poles (Pack of 156)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

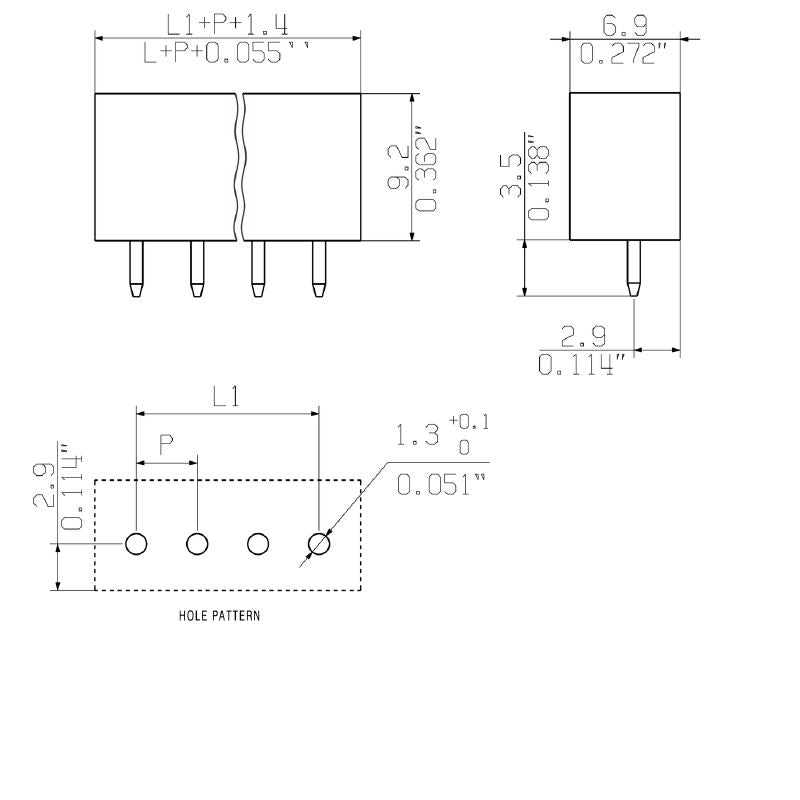

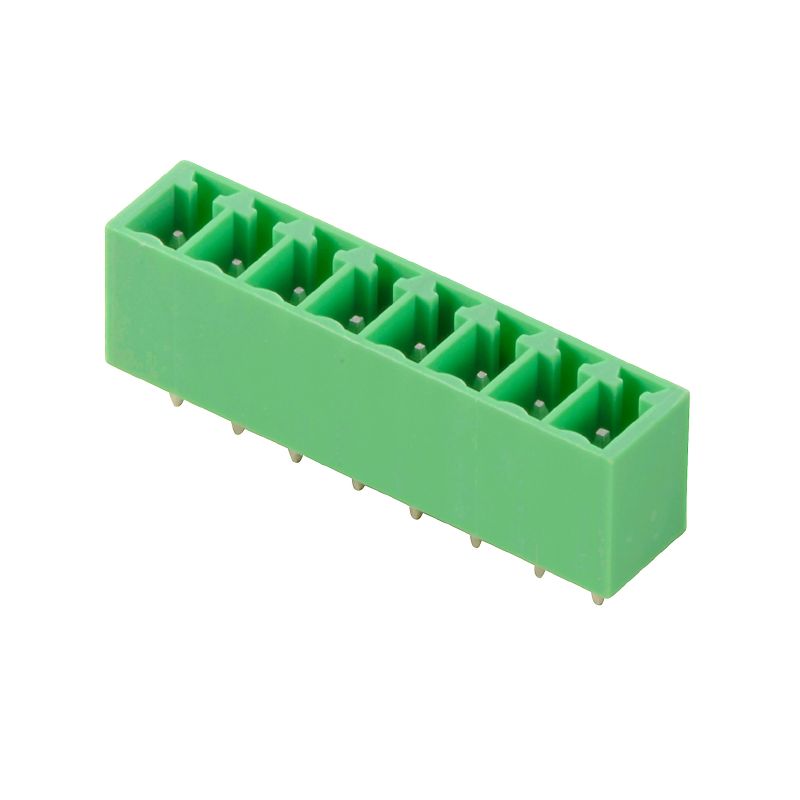

Introducing the CH 381/19/180G 35SN GN BX, a meticulously designed component that meets RoHS standards and boasts UL certification (File Number E60693) This essential piece features a THT solder connection type for secure board connections With a pitch of 381 mm (015 inches) and a 180° outgoing elbow, it consists of 19 poles, each fitted with a 35 mm solder pin The pins are sized at 08 x 08 mm, and the solder eyelet hole measures 1.

3 mm in diameter In terms of dimensions, this component has an overall length of 6858 mm (27 inches) and is structured in a single row with one pin series Made from PA GF insulating material in a pale green color (RAL 6021), it belongs to insulating material group I and complies with the UL 94 flammability rating of V-0 The contacts are crafted from a copper alloy with a tinned, matte-finished surface for enhanced reliability and performance.

Features and Benefits:

•Complies with RoHS without exemption.

•REACH SVHC free.

•Rated data specified according to IEC, CSA, and UL.

•Suitable for long-term storage with specific environmental conditions.

•Designed for compatibility with OMNIMATE basic products.

Specifications:
