2643530000 - 3.81mm 13-Pole Connector with 90-Degree Elbow and RoHS Compliant Design (Pack of 234)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

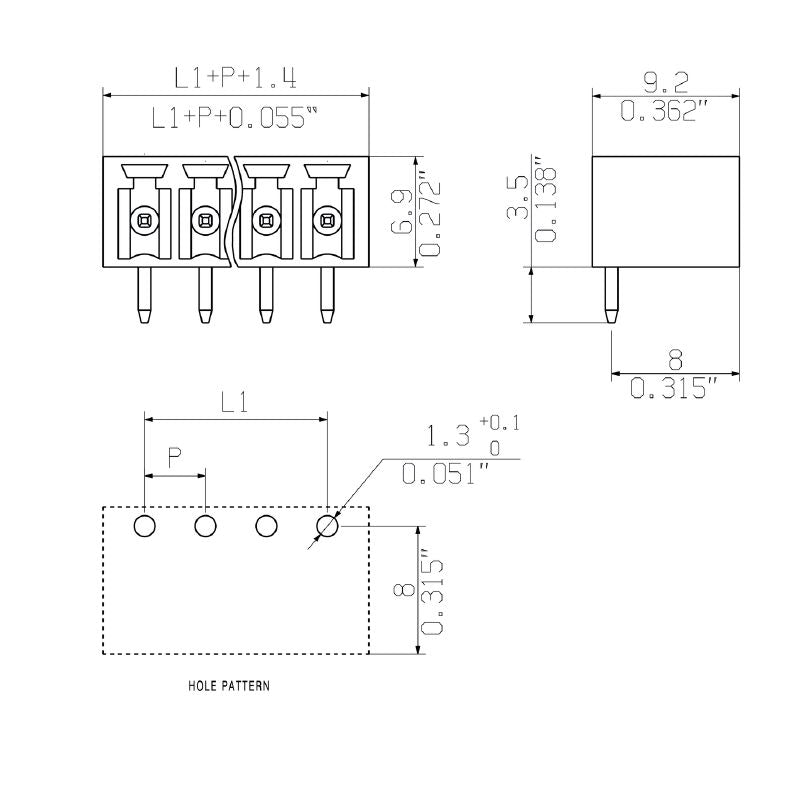

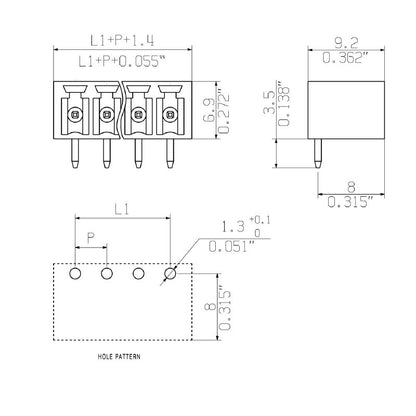

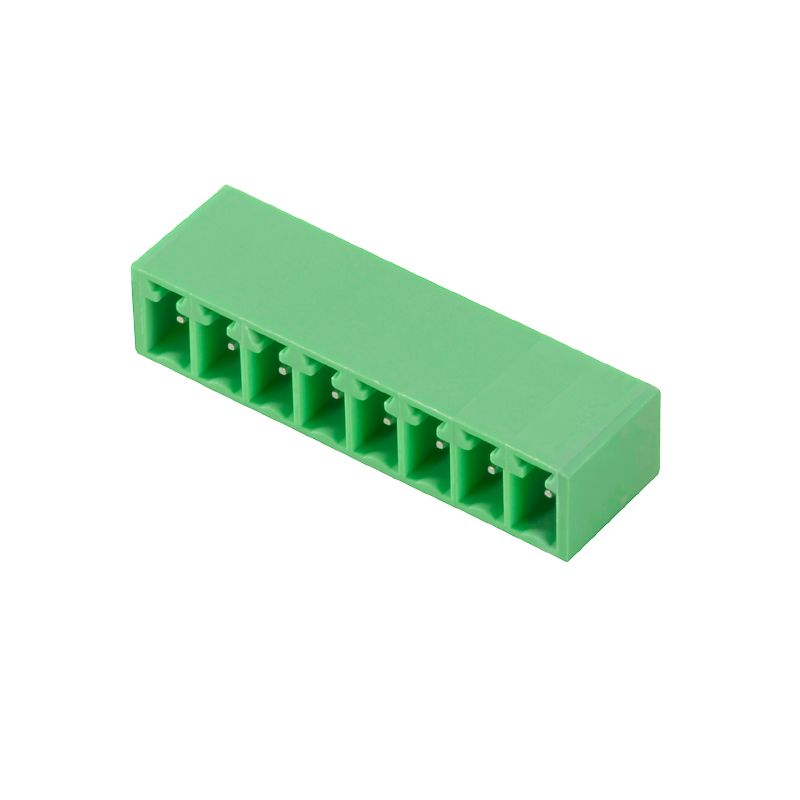

Introducing the CH 381/13/90G 35SN GN BX connector, specifically engineered for board connections in through-hole soldering applications This component boasts a pitch measurement of 381 mm and features a 90-degree elbow design, complete with 13 poles, each equipped with a solder pin that measures 35 mm in length The solder pins have dimensions of 08 x 08 mm, while the solder eyelet hole measures 13 mm in diameter.

Constructed from PA GF insulating material, this connector meets RoHS compliance standards It comes in a pale green shade that aligns with the RAL 6021 color specification Additionally, it has a UL 94 flammability rating of V-0, and the contact base is made from a copper alloy with a tinned surface for enhanced conductivity.

Features and Benefits:

•Compatible with OMNIMATE basic products.

•Long-term storage capability for 36 months under specific conditions.

Specifications:
