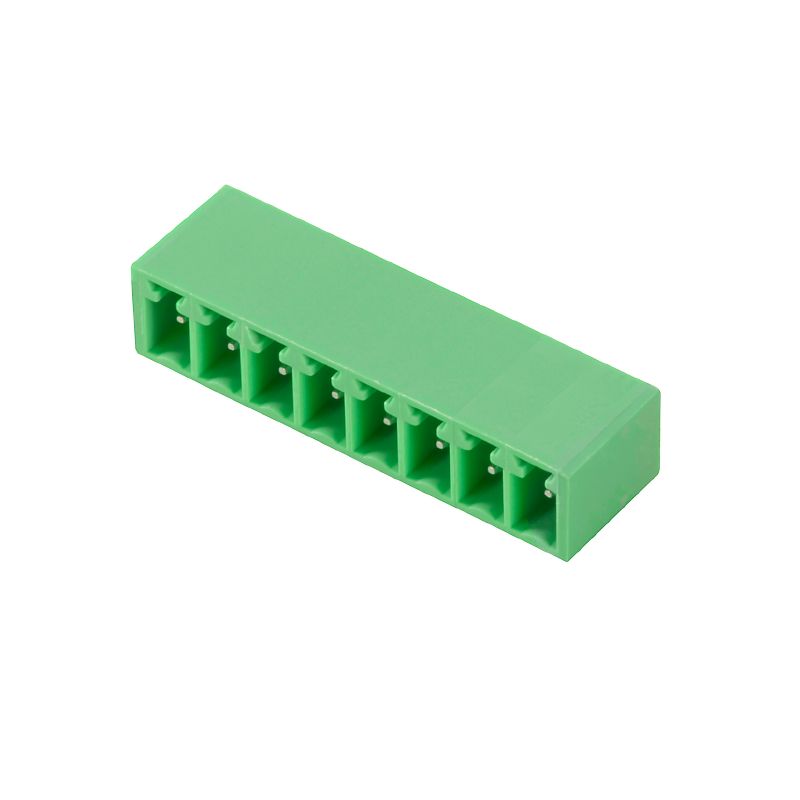

2643450000 - 3.81mm 5-Pole THT Connector with 90° Elbow, RoHS Compliant (Pack of 576)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the CH 381/05/90G 35SN GN BX, a reliable component designed for performance and compliance This device meets RoHS standards and carries a cURus certification, ensuring safety and reliability It operates at IEC ratings of 320 V and 8 A, and also satisfies UL ratings of 300 V and 8 A Housed in a convenient box, this product weighs just 14 g and is part of the OMNIMATE Signal series (BL/SL 5.

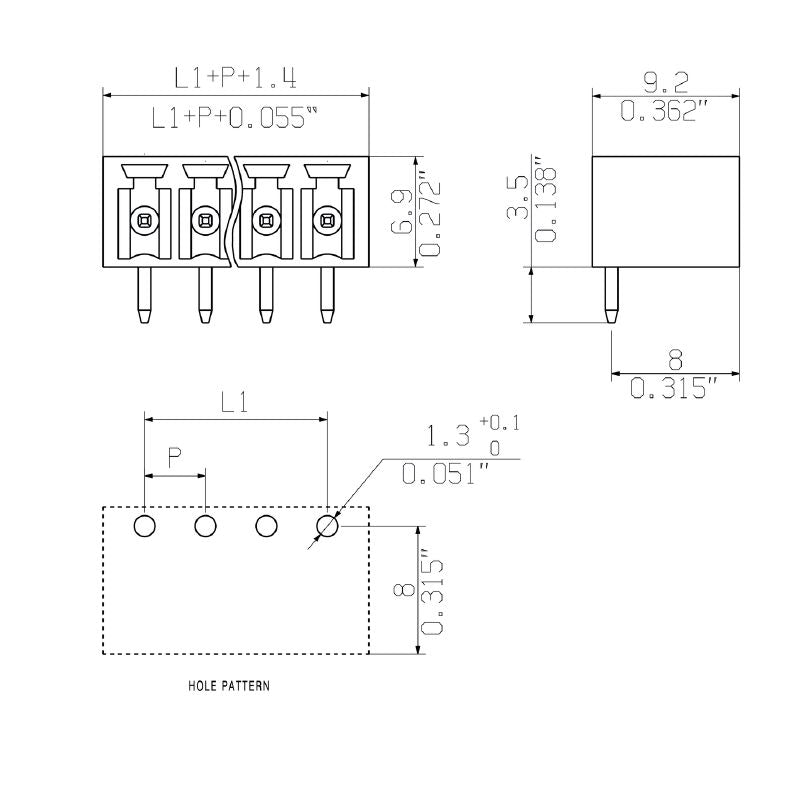

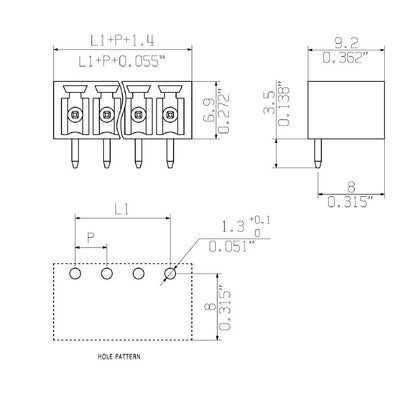

08) With a pitch of 381 mm (015 inches), it features a board connection with a THT solder connection The design includes a 90° outgoing elbow with 5 poles, each equipped with a solder pin that measures 35 mm in length The solder pin dimensions are 08 x 08 mm, complemented by a solder eyelet hole with a diameter of 13 mm Measuring a total length of 1524 mm (06 inches) in a single row with one pin, this component is made from high-quality PA GF in a pale green color (RAL 6021) and boasts a UL 94 flammability rating of V-0.

Furthermore, its contact base and material consist of copper alloy, featuring a matte-finished tinned surface Designed to function within a storage temperature range of -40 °C to 70 °C and capable of operating at temperatures up to 105 °C, this product is suitable for a variety of rated voltages and currents, catering to multiple application standards.

Features and Benefits:

•Compliant with RoHS without exemption.

•Does not contain SVHC above 0.1 wt%.

•Compatible only with OMNIMATE basic products.

•Long term storage capability with specific temperature and humidity conditions.

•Meet rated current and voltage specifications according to IEC and UL.
