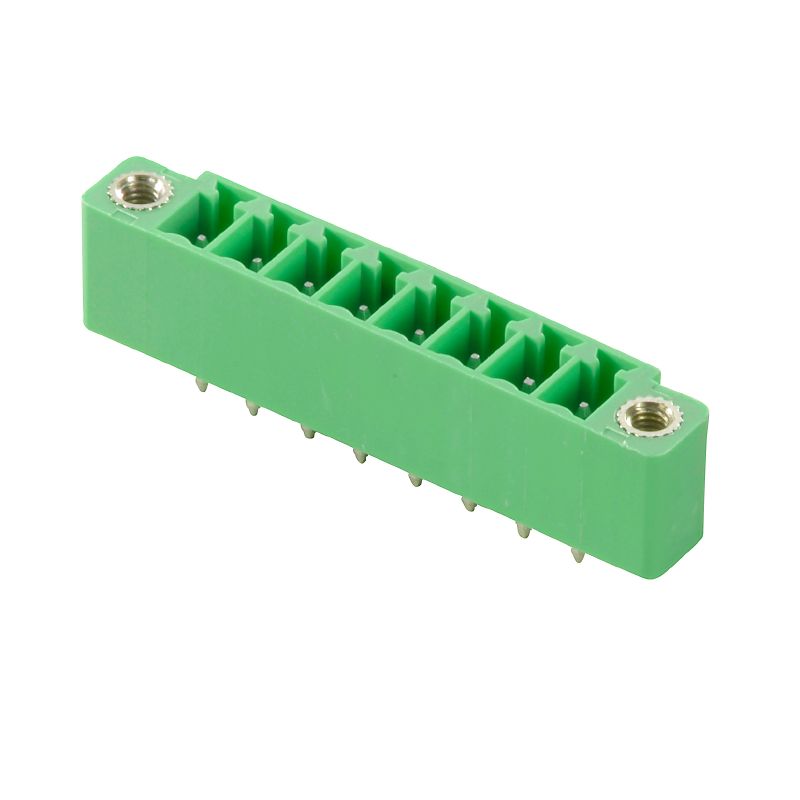

2643320000 - OMNIMATE 180° 3.5mm THT Connector, 11 Poles, 3.88g (Pack of 234)

Description:

Introducing the CH 381/11/180F 35SN GN BX, a versatile component designed for high-performance applications This product boasts IEC voltage ratings of up to 320 V and a current rating of 8 A, alongside UL ratings of 300 V and 8 A, ensuring reliable functionality Packaged in a compact box, it weighs just 388 grams, making it easy to handle Fully compliant with RoHS regulations, it includes exemption 6c while containing lead (7439-92-1).

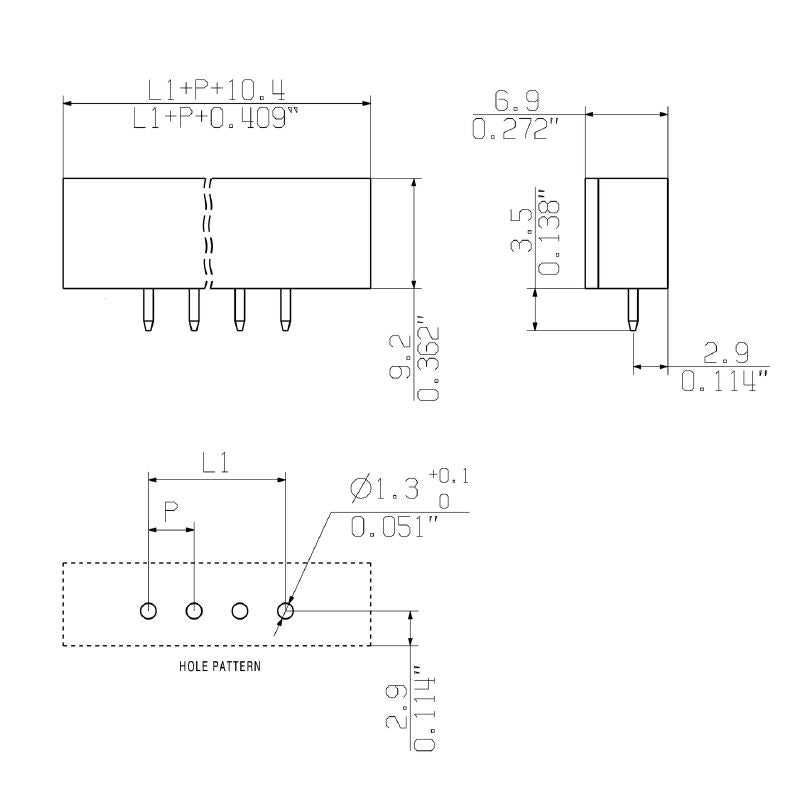

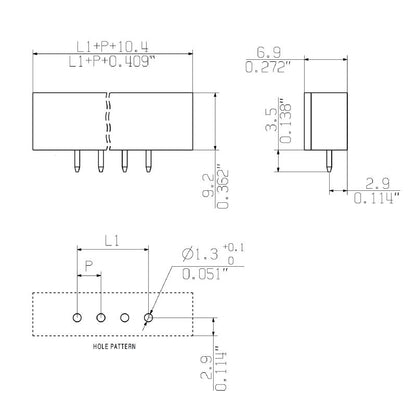

As part of the OMNIMATE Signal series, this product features a through-hole (THT) connection with a generous 381 mm (015 inches) pitch The outgoing elbow is set at a 180° angle, showcasing 11 poles—each equipped with a 35 mm solder pin Dimensions of each pin are 08 x 08 mm, with a solder eyelet hole diameter of 13 mm, contributing to an overall length of 381 mm (15 inches) With a single row of pins made from PA GF insulating material in a pale green shade (RAL 6021), this part is rated under group I with a UL 94 flammability classification of V-0.

The contact base and surface utilize a tinned Cu-alloy, offering a matte finish for added durability For optimal storage, this component should be kept between -40 °C and 70 °C, while it can perform effectively in temperatures reaching up to 105 °C The rating highlights a minimum current of 8 A at 20°C, with voltage class ratings of 320 V and 160 V for pollution degrees II/2 and III/2, respectively.

Please note, this product is designed exclusively for compatibility with OMNIMATE basic products.

Features and Benefits:

•RoHS compliant with exemption.

•Compatible with OMNIMATE basic products.

•Connectors without breaking capacity.

•Long-term storage capability of 36 months at average temperatures of 50 °C and maximum humidity of 70%.
