Description:

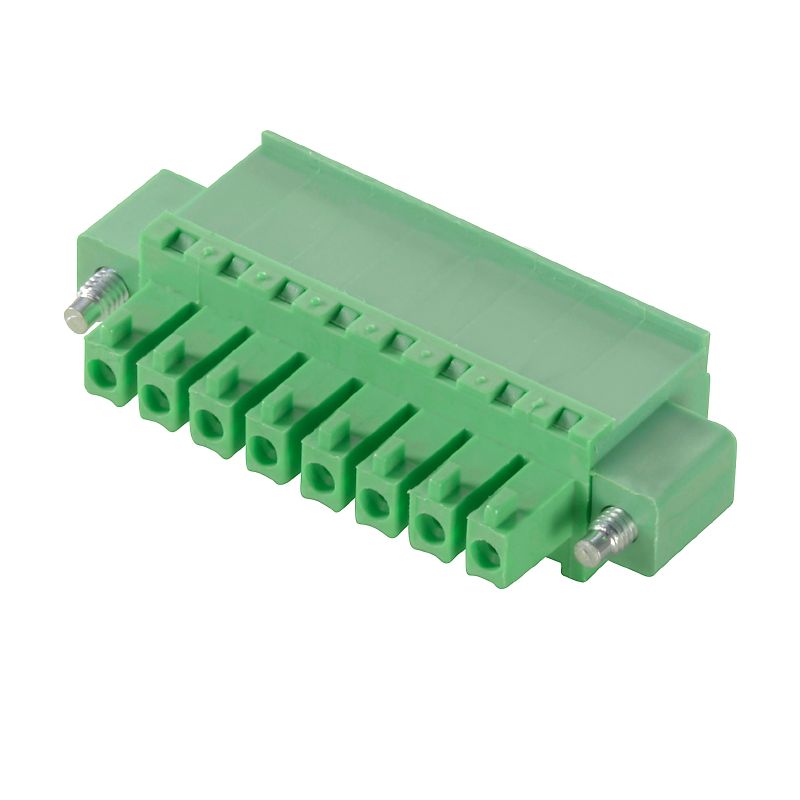

Introducing the CPS 381/19/270F SN GN BX electrical connector, engineered for optimal efficiency in field connections Capable of handling up to 320 V with a current rating of 8 A, this connector is versatile, accommodating wire sizes from 02 to 15 mm² to meet IEC standards and AWG 30 to 16 for UL requirements Featuring a reliable clamping yoke connection method and a single row configuration with 19 poles, it ensures dependable connectivity for various applications.

Features and Benefits:

•Compliant with RoHS standards with an exemption for lead.

•Suitable for both stranded and solid conductors.

•Designed with a pitch of 3.81 mm and can accommodate a conductor outlet direction of 270°.

•Contains clamping screws and specified torque requirements for secure connections.

•High temperature operating range up to 105 °C.

•Capable of withstanding multiple plugging cycles.

Specifications:

Type	CPS 3.81/19/270F SN GN BX
IEC Rated Voltage	320 V
IEC Rated Current	8 A
UL Rated Voltage	300 V
UL Rated Current	8 A
Pitch	3.81 mm
Number of Poles	19
Stripping Length	6.5 mm
Tightening Torque (min)	0.22 Nm
Tightening Torque (max)	0.25 Nm
Plugging Cycles	25
Insulating Material	PA
Storage Temperature (min)	-40 °C
Storage Temperature (max)	70 °C
Operating Temperature (max)	105 °C
Clamping Range (min)	0.2 mm²
Clamping Range (max)	1.5 mm²
Rated Impulse Voltage	2.5 kV
