2642830000 - 19-Pole Connection Component for 0.2-1.5 mm² Wires (Pack of 51)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

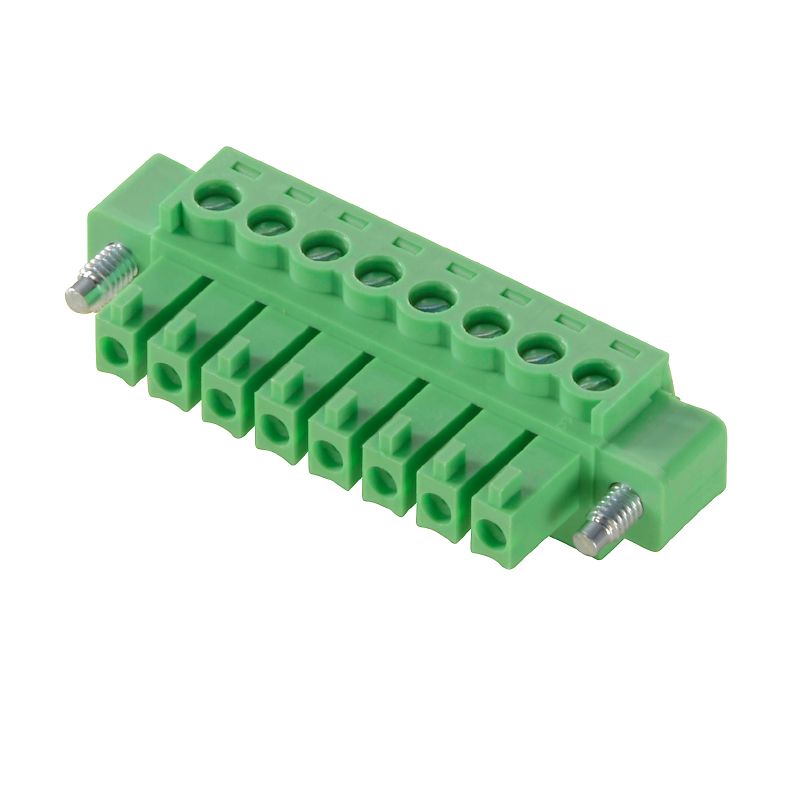

Introducing the CPS 381/19/180F SN GN BX, an essential field connection component that provides reliable performance with a voltage rating of 320 V and supports a maximum current of 8 A Compatible with wire gauges ranging from 02 to 15 mm², this connector uses a clamping yoke connection for secure and stable connections Part of the OMNIMATE basic product line, this single-row connector features 19 poles and allows for a 180-degree conductor outlet direction.

It requires a stripping length of 65 mm and operates under a tightening torque specification of 022 to 025 Nm Weighing just 1505 grams, it is conveniently packaged in a box and meets RoHS compliance standards.

Features and Benefits:

•Clamping yoke connection method.

•Conductor outlet direction at 180 degrees.

•Stripping length of 6.5 mm.

•Tightening torque range from 0.22 to 0.25 Nm.

•Lightweight at 15.05 grams.

•RoHS compliant with exemption.

•Suitable for long-term storage in recommended conditions.

Specifications:
