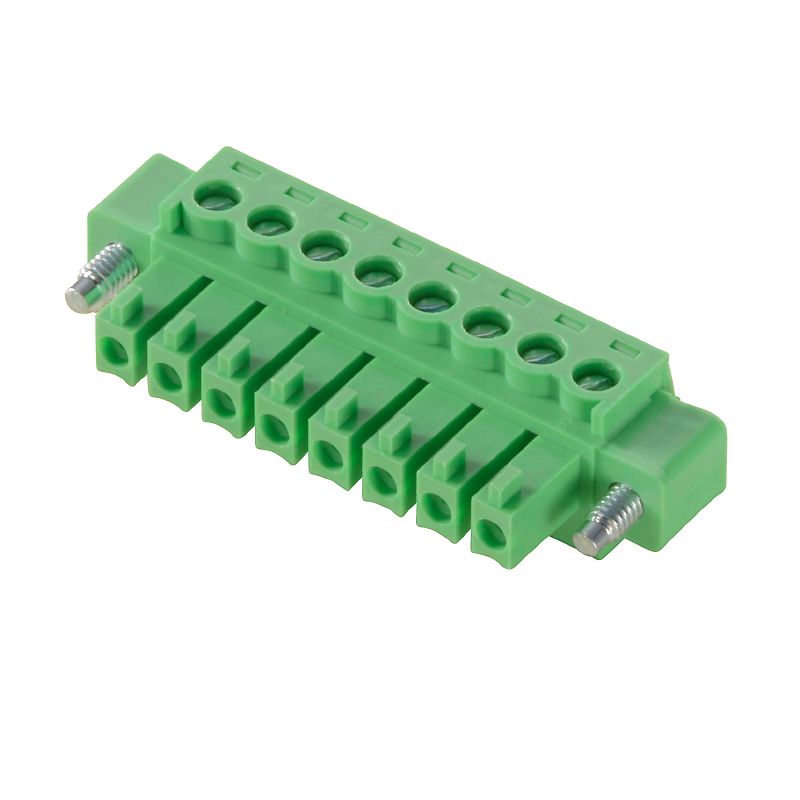

2642700000 - 3.81mm Terminal Block Connects Wire Sizes 0.2-1.5mm² (Pack of 138)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

This terminal block provides excellent connectivity with a voltage rating of 320 V and a current capacity of 8 A It is compatible with wire sizes ranging from 02 to 15 mm² in accordance with IEC standards, and AWG sizes 30 to 16 as per UL standards Designed for versatility, it features a clamping yoke connection that allows for field connections and a conductor outlet direction of 180°, all while maintaining a compact pitch of 3.

81 mm It supports a stripping length of 65 mm and is built for durability, capable of enduring up to 25 plugging cycles Additionally, this terminal block adheres to various environmental standards and is RoHS compliant.

Features and Benefits:

•Compatible with OMNIMATE basic products.

•Designed for reliable clamping force.

•Featuring a compact design for tight spaces.

•Long-term storage capability with specified temperature and humidity conditions.

•Field connection applications.

Specifications:
