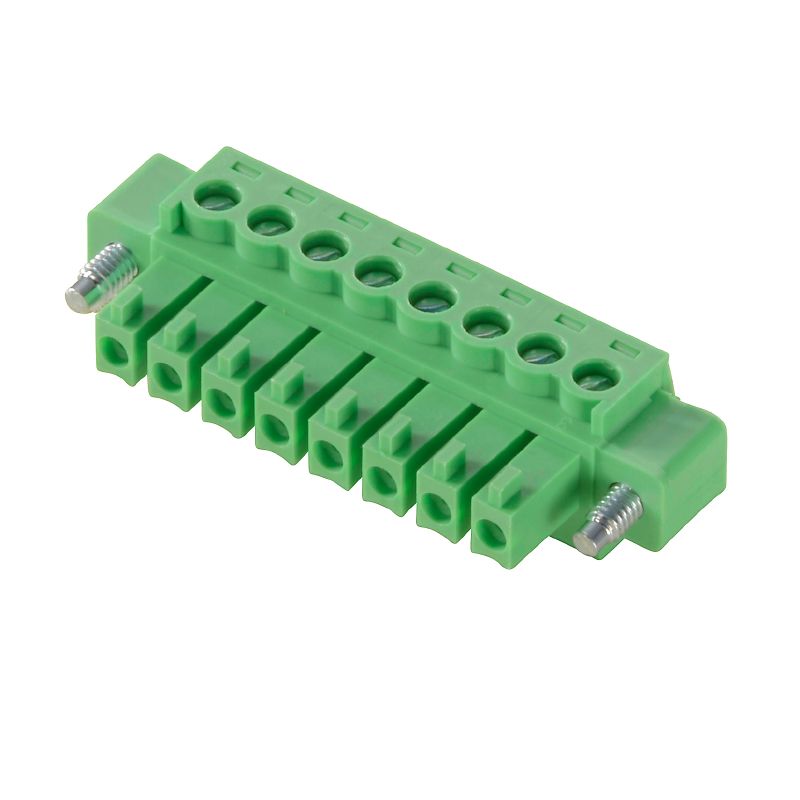

2642670000 - ROHS Compliant 320V Connection Block for 0.2-1.5 mm² Wires (Pack of 210)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

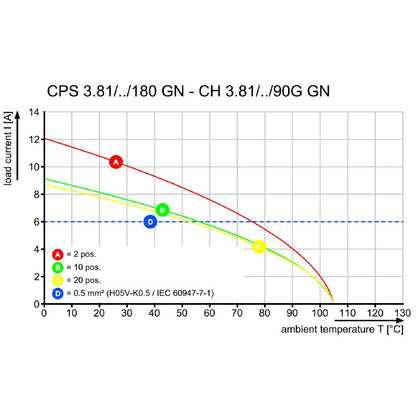

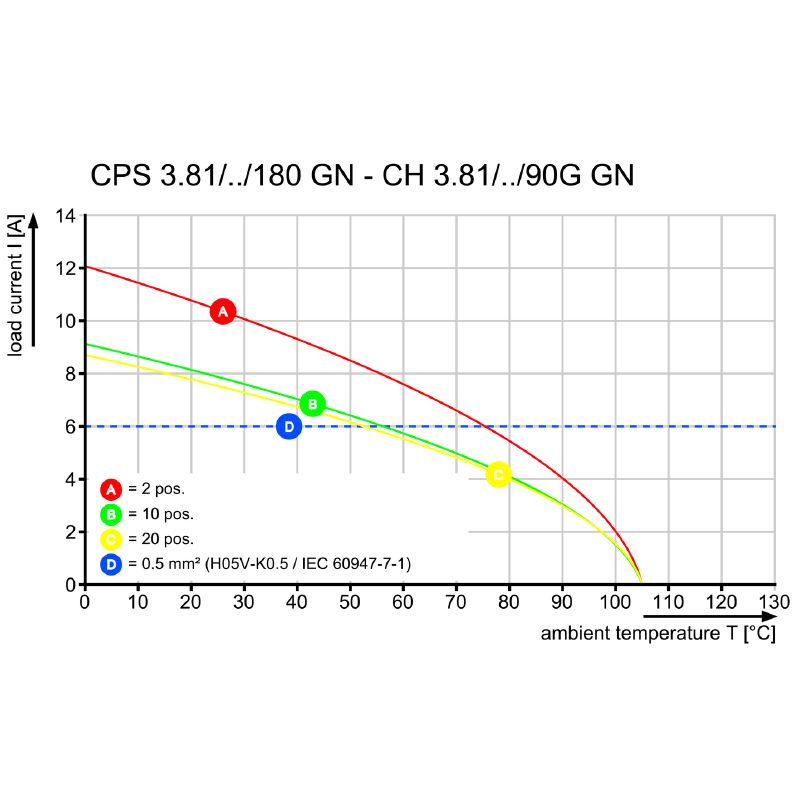

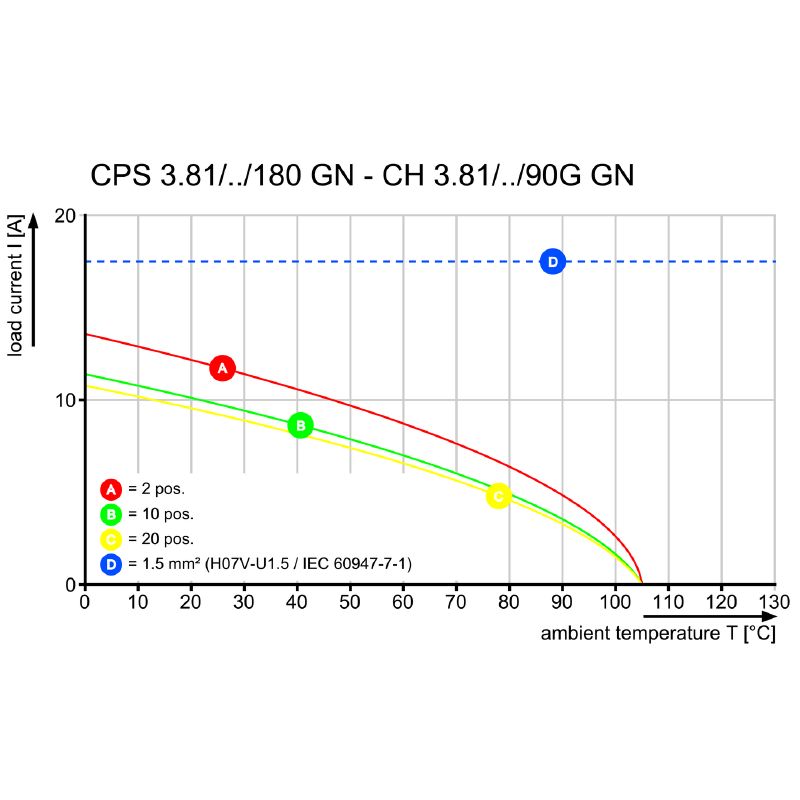

Introducing the CPS 381/03/180F SN GN BX, a versatile connection solution that adheres to multiple standards while being fully ROHS compliant This unit boasts UL approval, certified under number E60693, and is rated to operate at 320 V / 8 A in accordance with IEC standards, and 300 V / 8 A for UL standards It accommodates wire sizes from 02 to 15 mm², equivalent to AWG 30 to AWG 16 Safely packaged in a sturdy box, this product ensures reliable protection during shipping.

Features and Benefits:

•Compatible only with OMNIMATE basic products.

•Designed for field connection with a clamping yoke connection method.

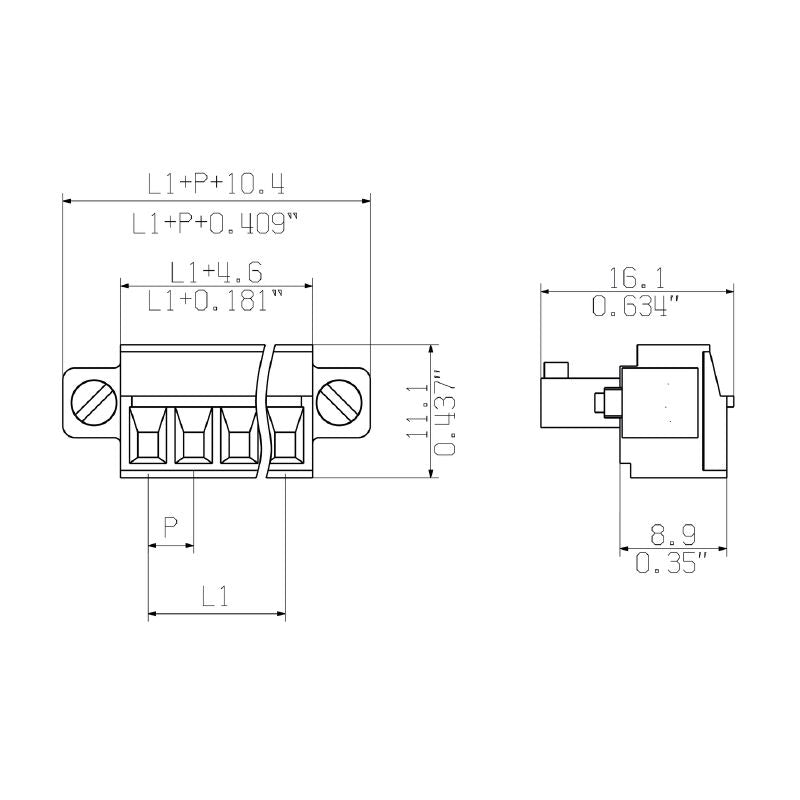

•Pitch is 3.81 mm (0.15 inches) with a 180° conductor outlet.

•Able to handle a tightening torque between 0.22 Nm and 0.25 Nm.

•Manufactured using PA insulation material and copper alloy contacts.

•Complies with environmental regulations including RoHS and REACH.

Specifications:
