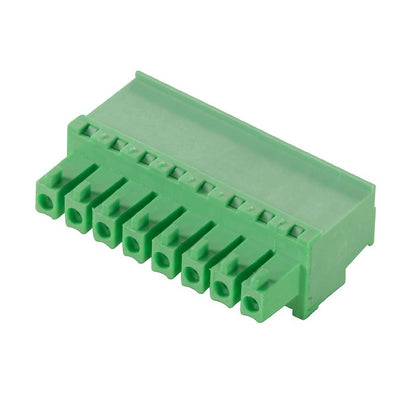

2642390000 - RoHS-Certified 3.81mm Connector, 270° Clamping, 8A Capacity (Pack of 84)

Description:

Introducing the CPS 381/13/270 SN GN BX, a premium field connection solution compliant with RoHS regulations and UL certified (file number E60693) This reliable connector operates at a voltage of up to 320 V and accommodates a current of 8 A, making it versatile for various applications Designed to fit wire sizes from 02 to 15 mm², each box includes 84 connectors, with a total weight of just 1027 grams.

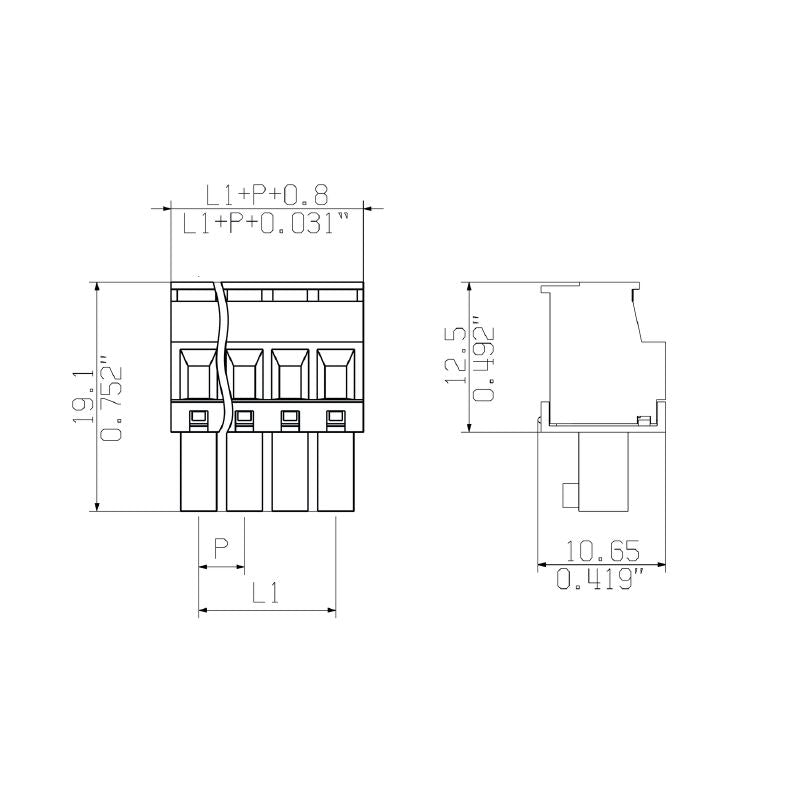

This product adheres to critical environmental standards and holds certifications from ETIM and ECLASS With a pitch of 381 mm and a conductor outlet angle of 270 degrees, stability and ease of use are paramount It features a clamping yoke connection method, ensuring optimal performance The required stripping length is 65 mm, and it functions effectively with tightening torque specifications of 022 to 0.

25 Nm Compatible with flexible, solid, and stranded conductors, the clamping range spans wire sizes from AWG 30 to 16 Please be mindful that these connectors should not be connected or disconnected when under load, ensuring safety and reliability in your electrical installations.

Features and Benefits:

•RoHS compliant.

•UL certified.

•267° conductor outlet direction.

•Low tightening torque requirements.

•Suitable for various conductor types and sizes.

Specifications:
