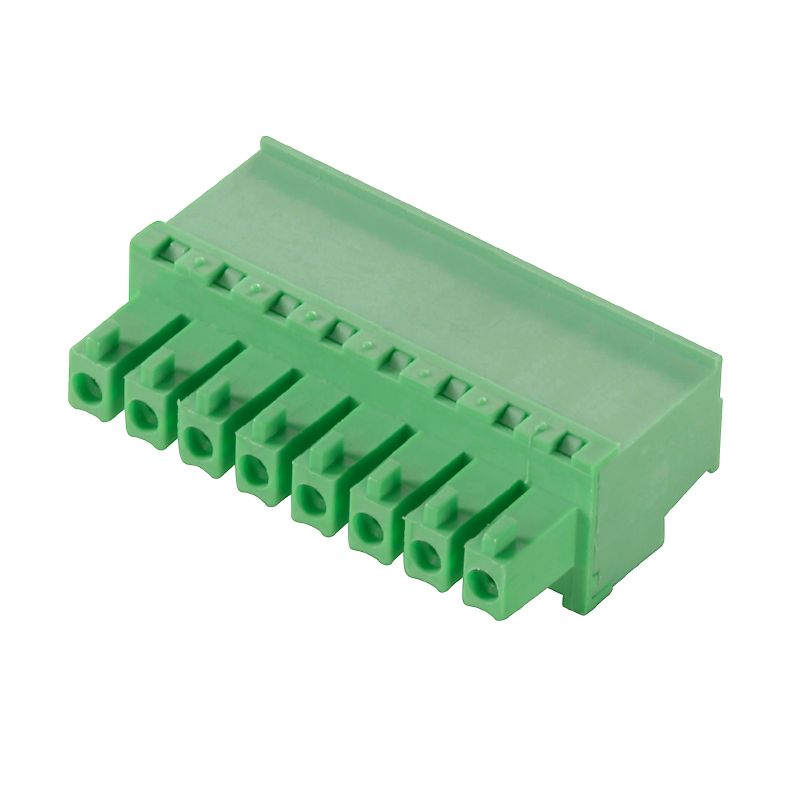

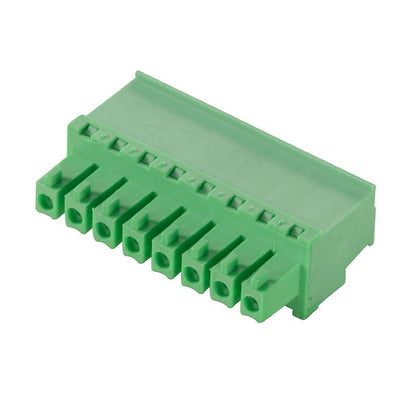

2642360000 - Compact Electrical Connector for 0.2-1.5 mm² Wires, 270° Outlet (Pack of 112)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the CPS 381/10/270 SN GN BX electrical connector, a reliable solution for field connections using a clamping yoke design, perfect for wire sizes from 02 to 15 mm² Its compact pitch of just 381 mm accommodates up to 10 poles, while the 270° conductor outlet orientation allows for effortless connections with various wire types, even when the system is energized This connector is compliant with UL and RoHS standards, featuring a rated voltage of 320 V and a current capacity of 8 A, making it an excellent choice for diverse applications.

Features and Benefits:

•Suitable for various wire cross-sections including AWG 30 to AWG 16.

•Complies with RoHS and has a clear RoHS compliance status.

•Offers both storage and operational temperature ranges suitable for diverse applications.

•Durable construction with a PA insulating material rated V-0 for flammability.

•Minimum of 25 plugging cycles ensuring longevity.

Specifications:
