2642340000 - 8-Pole 3.81mm Connector, 270° Clamping Yoke, RoHS Compliant (Pack of 144)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

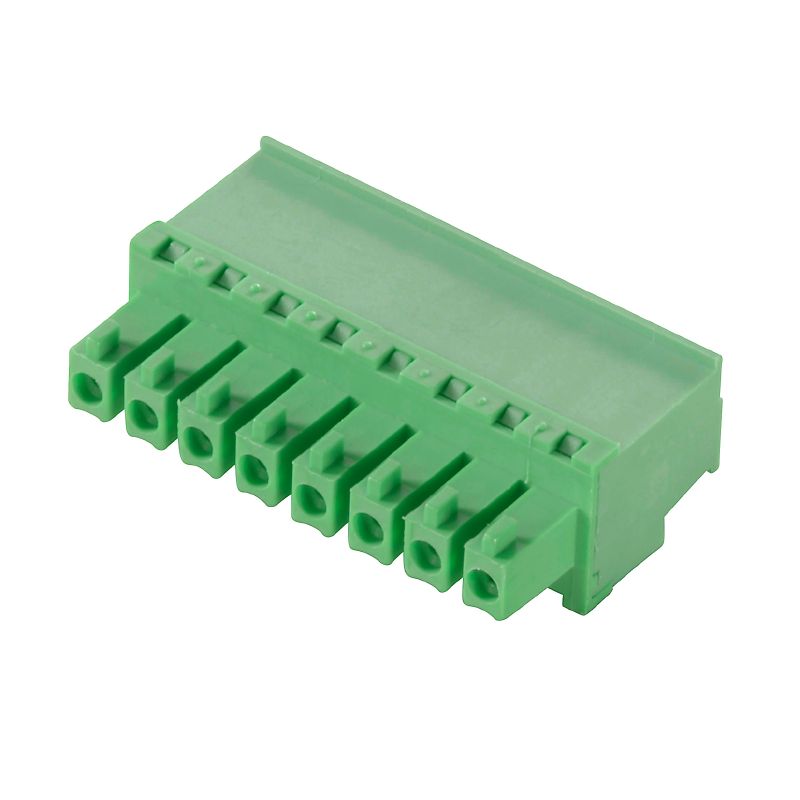

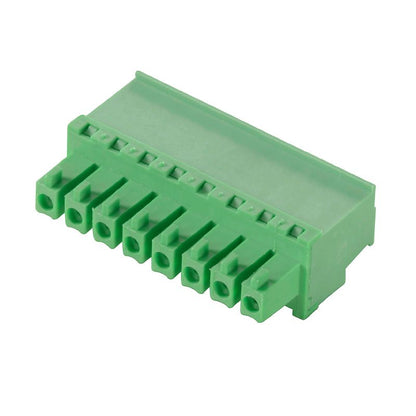

Introducing the CPS 381/08/270 SN GN BX, a top-tier connector that meets RoHS regulations and is compliant with exemption standards This product comes with an easy-to-access UL file number Designed with a 381 mm pitch, this connector features a robust field connection method utilizing a clamping yoke With 8 poles positioned at a 270° angle, it effectively supports a variety of wire sizes, accommodating a clamping range from 0.

2 mm² to 15 mm², ideal for wire gauges ranging from AWG 30 to AWG 16 The connector’s body is made from insulated PA material in a subtle pale green shade, while the contact components are crafted from copper alloy with a tinned finish, ensuring excellent conductivity This connector is rated for a maximum temperature of 105 °C and adheres to international specifications for voltage and current A reliable choice for your connectivity needs!.

Features and Benefits:

•Includes eight poles for versatile connectivity.

•Designed for field connection with effective clamping yoke method.

•Compatible only with OMNIMATE basic products.

•Provides a 270° conductor outlet direction.

•User-friendly minimally required and maximum tightening torque specifications.

Specifications:
