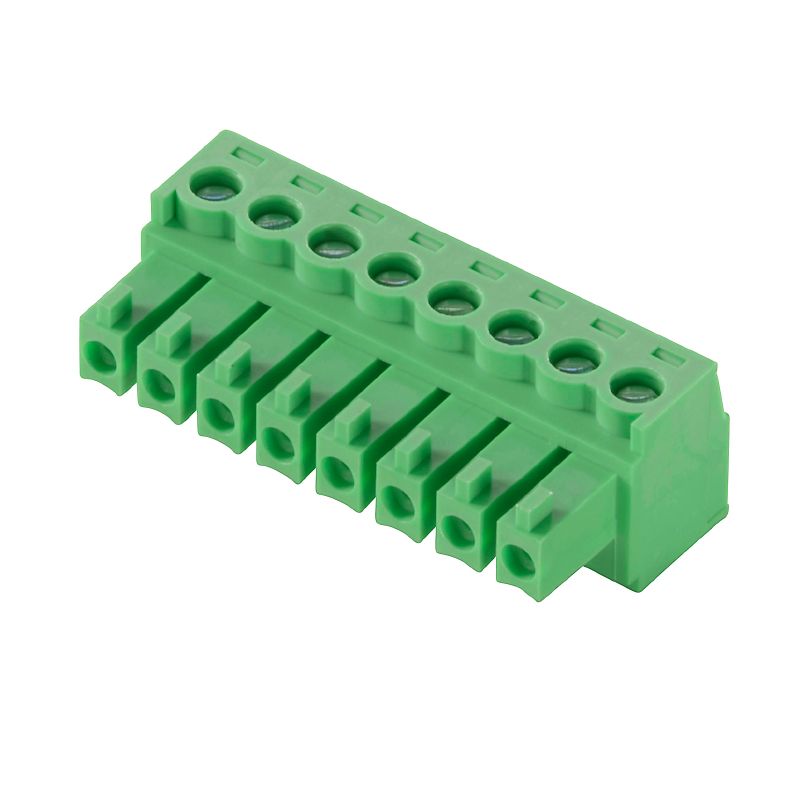

2642150000 - 8-Pole Conductor Connector, 180-Degree, 3.81mm Pitch (Pack of 168)

Description:

Introducing the CPS 381/08/180 SN GN BX, an efficient connector tailored for field applications This device features a unique 180-degree conductor outlet direction and utilizes a clamping yoke connection method With a configuration that accommodates 8 poles arranged in a single row and a pitch of 381 mm, it provides flexibility for various setups It can handle conductor sizes ranging from 02 to 15 mm², equivalent to AWG 30 to AWG 16, ensuring compatibility with numerous electrical systems.

Each box includes 168 connectors, all compliant with RoHS regulations, making it a safe choice for your projects Each connector weighs 5202 grams, adding minimal bulk to your installations.

Features and Benefits:

•Field connection type.

•Clamping yoke connection for secure wire attachments.

•Single row design with 8 poles.

•Plugging cycles up to 25 for durability.

•Insulating material rated V-0 for fire safety.

•Colour coded Pale green for easy identification.

•Compatible with specific OMNIMATE basic products.
