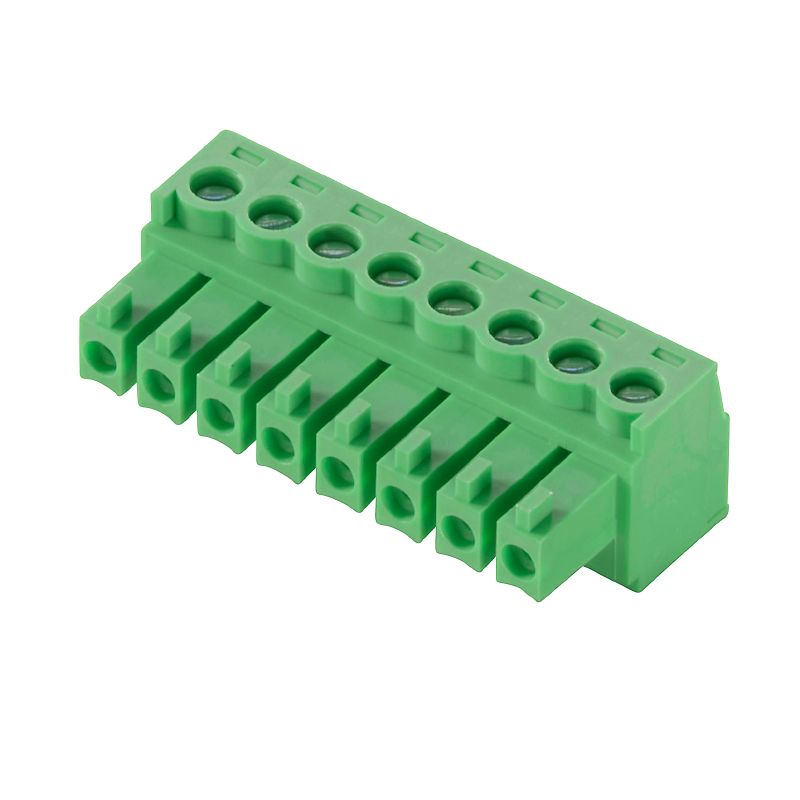

2642130000 - 3.81mm Terminal Block with 180° Connection and UL Approval (Pack of 210)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the CPS 381/06/180 SN GN BX, a reliable field connection terminal block that meets UL certification and adheres to RoHS standards Designed with a clamping yoke connection, it features a compact 381 mm pitch and a 180-degree conductor outlet direction This terminal block is compatible with wire sizes ranging from AWG 30 to AWG 16, making it an excellent choice for high-performance electrical connections.

Features and Benefits:

•Environmental compliance including RoHS and REACH.

•Insulating material made from PA.

•UL 94 flammability rating of V-0.

•Clamping range allows a variety of conductor sizes.

•Handles a maximum tightening torque of 0.25 Nm.

•Used in OMNIMATE basic connection systems.

•Suitable for various electrical connection setups..

Specifications:
