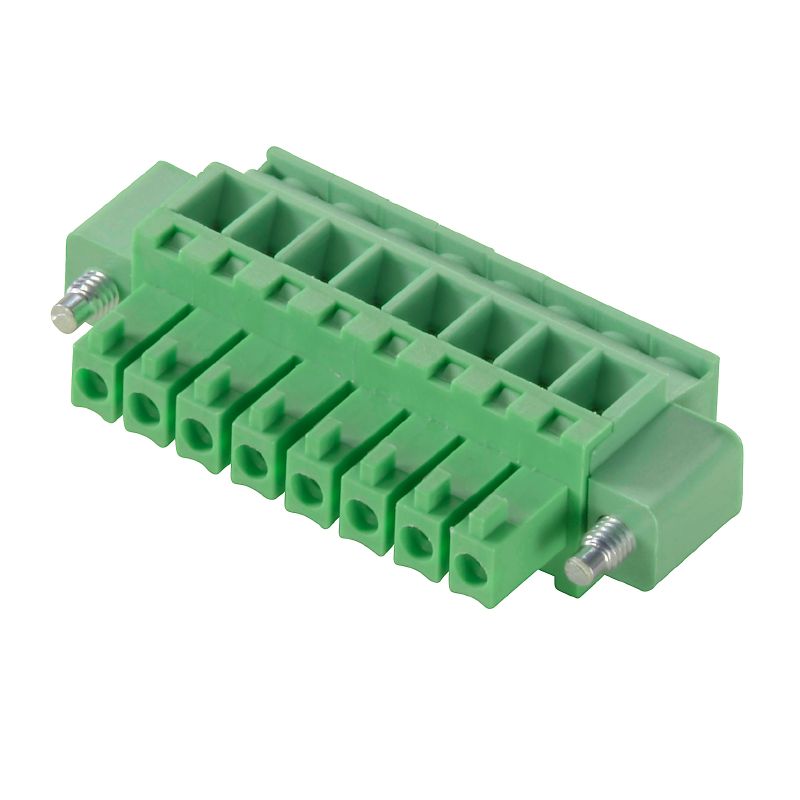

2640660000 - 3.5mm Pitch Field Connector, Up to 11 Poles, 90° Angle (Pack of 84)

Description:

The CPS 350/11/90F SN GN BX is designed for reliable field connections and utilizes a clamping yoke mechanism With a compact pitch of 35 mm, it supports connection for up to 11 poles and allows for a conductor outlet angle of 90 degrees This versatile product accommodates wire sizes ranging from 02 mm² to 15 mm² and offers a secure connection capable of handling a tightening torque from 022 Nm to 0.

25 Nm, along with a maximum plugging force of 10 N for each pole Crafted from copper alloys, its contact base ensures durability and reliability across a variety of applications This model is also environmentally compliant, adhering to RoHS standards.

Features and Benefits:

•Clamping yoke connection method.

•Single-row design with 11 poles.

•Capable of 25 plugging cycles.

•Pale green color similar to RAL 6021.

•Insulating material rated UL 94 flammability V-0.

Specifications:
