2640080000 - 10-Pole Connector, 0.2-1.5 mm², 90° Outlet, Pale Green (Pack of 112)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the CPS 350/10/90 SN GN BX connector, a robust solution designed for efficient clamp connections with a straightforward field wiring system This connector accommodates wire cross-sections ranging from 02 to 15 mm² and features a 90° outlet direction for easy installation With a 10-pole configuration, it belongs to the OMNIMATE basic product line Constructed from durable PA insulation material, this connector is offered in a soft pale green hue and has a UL 94 flammability classification of V-0.

Packaged securely in boxes, it ensures convenient storage and safe transport.

Features and Benefits:

•Clamping yoke connection method.

•Designed for use in various wire cross-sections from 0.2 mm² to 1.5 mm².

•Minimal maintenance due to durable design allowing for up to 25 plugging cycles.

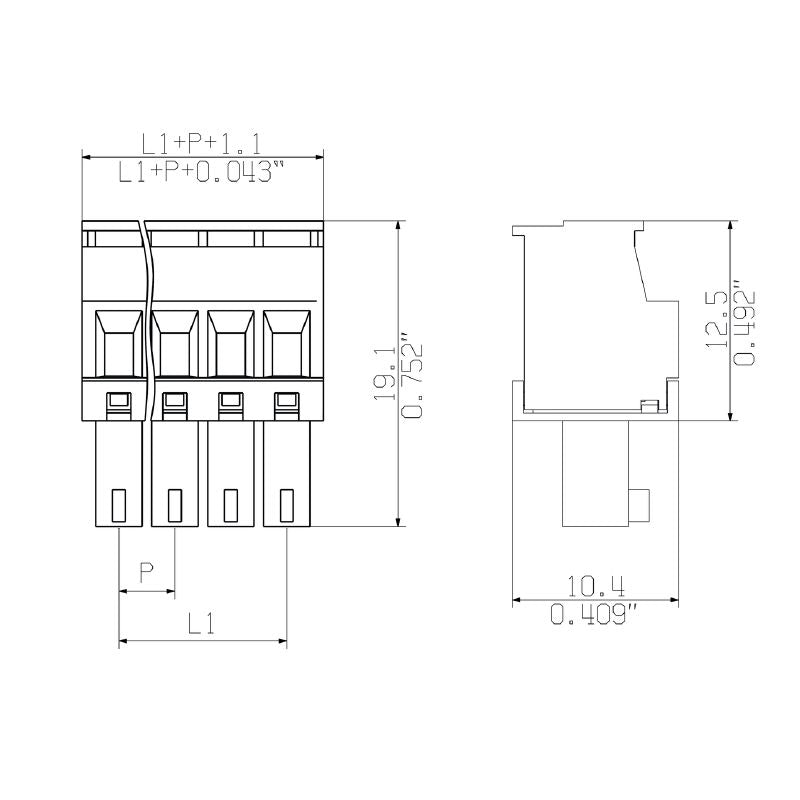

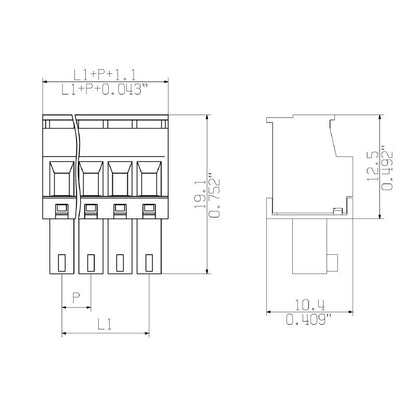

•Compact dimension with 31.5 mm in length and a pitch of 3.5 mm.

•Field connection applications.

Specifications:
