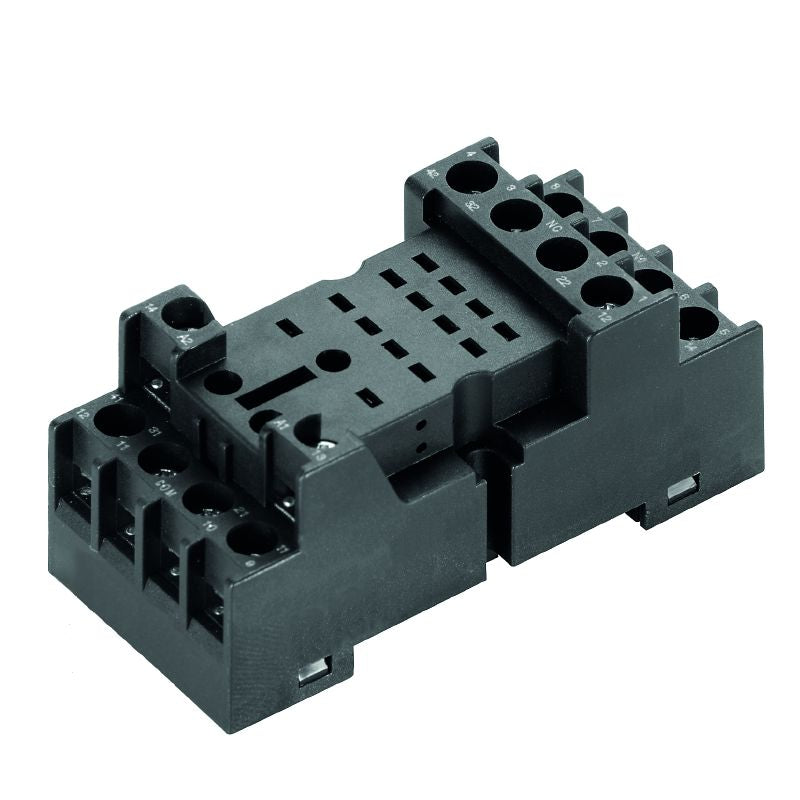

8694500000 - SCM 4CO N Relay Socket, 4 Contacts, 10A Rating (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SCM 4CO N Relay Socket, a reliable solution featuring four CO contacts and a continuous current capacity of 10 A Designed with screw connections, this socket is UL cURus certified, assuring you of its top-notch quality It adheres to RoHS standards and comes with a UL file number E223759 for verification Please note, this product will be phased out after March 31, 2026, but is readily available until then.

Its dimensions measure 42 mm in depth, 77 mm in height, and 27 mm in width, with a lightweight net of 4896 g Operating efficiently in temperatures ranging from -40 °C to 70 °C, it is rated to withstand ambient conditions between -45 °C and 70 °C, with a maximum humidity of 93% Additionally, it boasts an insulation strength of 25 kV for one minute and features an IP20 protection rating.

Features and Benefits:

•Compliant with RoHS and does not have any SVHC above 0.1 wt%.

•Has screw connection method for wire connection.

•Durable construction with a protection degree of IP20.

•Insulation coordination with a dielectric strength of 2.5 kV.

•Rated for switching voltage up to 250 V AC and max. switching voltage of 300 V.

Specifications:
