8950850000 - TOS Solid-State Relay 230VAC/48VDC, 0.1A, Compact Design (Pack of 10)

SKU: SKU: 8950850000 Download PDF

Variant:

8950850000 - TOS Solid-State Relay 230VAC/48VDC, 0.1A, Compact Design (Pack of 10)

Now $116.51

~~BEFORE $0.00~~ Now $116.51

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the TOS solid-state relay, engineered for reliability with a control voltage specification of 230 V AC, featuring a tolerance range of +10% to -20% This versatile device is capable of switching voltage from 5 to 48 V DC and supports a continuous current up to 01 A It utilizes a secure screw connection for easy installation Measuring 55 mm in depth, 744 mm in height, and 61 mm in width, this compact relay has a lightweight design at only 20.

9 g It operates efficiently in ambient temperatures from -20 °C to 60 °C and can be stored in extreme conditions, ranging from -40 °C to 80 °C With a moisture tolerance of 5-95% relative humidity (non-condensing), this relay is built to withstand a variety of environments, making it an excellent choice for diverse applications.

Features and Benefits:

•Compliant with RoHS regulations with exemptions.

•Environmental status includes REACH compliance.

•Includes a green LED status indicator.

•IP20 protection degree.

•Rated for a max surge voltage of 4 kV.

•Screw connection for wire terminals.

Specifications:

Rated control voltage	230 V AC +10 % / -20 %
Nominal control current	1.75 mA AC
Power rating	≤ 0.4 VA
Rated switching voltage	5...48 V DC
Continuous current	0.1 A (DC1)
Rated switching current	100 mA
Load category	DC1
Max. switching voltage, DC	48 V
Switch-on delay	<12 ms
Switch-off delay	<14 ms
Voltage drop at max. load	<1 V
Leakage current	<10 µA
Min. switching current	100 µA
Short-circuit-proof	No

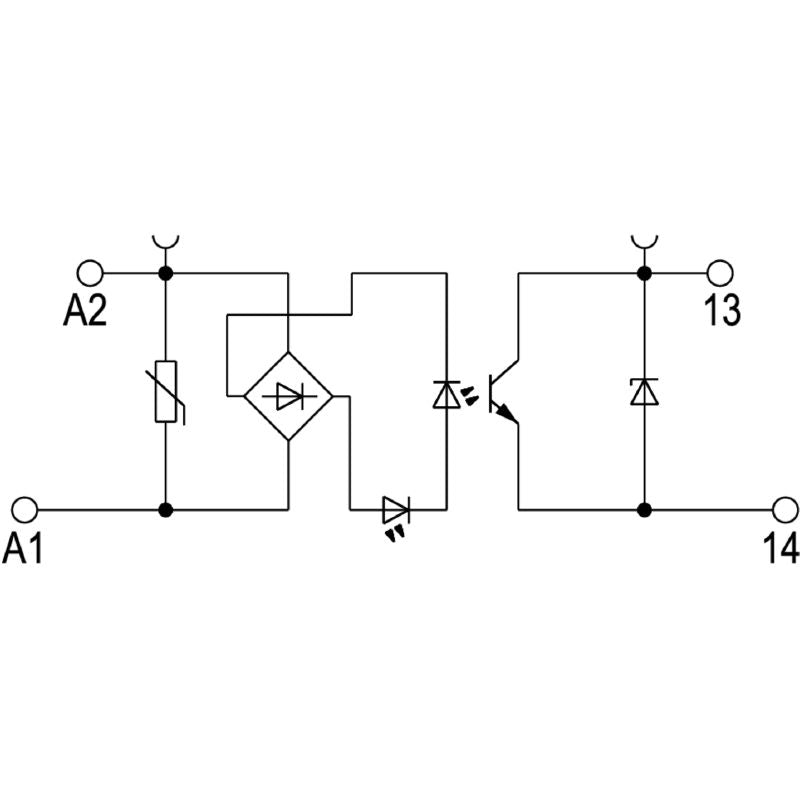

Contact type	1 NO contact (Transistor)
Mounting rail	TS 35
Insulation coordination	{'Rated voltage': '300 V', 'Pollution severity': '2', 'Surge voltage category': 'III', 'Clearance and creepage distances': '> 3 mm', 'Dielectric strength': '1.2 kV eff / 1 min.', 'Impulse withstand voltage': '4 kV (1.2/50 µs)'}
Wire connection method	Screw connection
Clamping range, rated connection	2.5 mm²
Stripping length, rated connection	9 mm
Tightening torque, min.	0.4 Nm
Tightening torque, max.	0.6 Nm

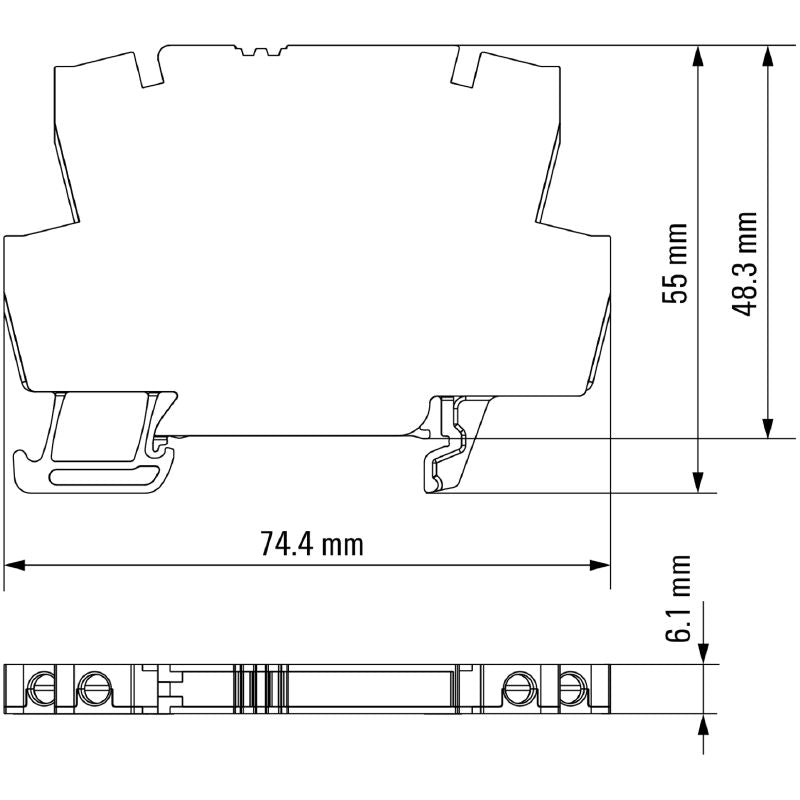

Dimensions	{'Depth': '55 mm', 'Height': '74.4 mm', 'Width': '6.1 mm'}
